Product Details
| Condition | New | Place of Origin | Beijing, China | |
| Brand Name | PF | Model Number | CZG80/16 | |
| Usage | Other, Capsule/Tablet | Production Capacity | 6000 Capsules(Tablets)/min | |
| Voltage | AC 220V 50HZ | Power(W) | 1kw | |
| Weight | 500KG | Dimension(L*W*H) | 1160*2400*1670mm | |
| Certification | CE ISO GMP | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

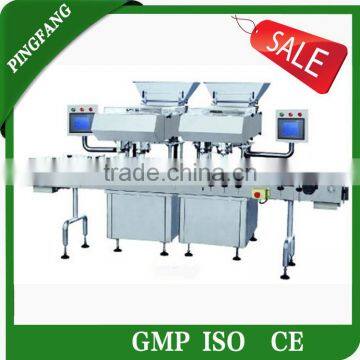

Brand New Best Selling CZG80/16 Capsule and Tablet Counter Machine
Application
1. This product is applicable in pharmaceutical, food, health-care industry; it can count accurately and fill round tablet, shaped tablet, capsules, transparent soft gelatin capsules, pill or other solid drug or granular filling into container.
2. High speed. This product has 16 counting channels, 1 filling funnel; the maximum speed reaches 60 bottles per min.
3. The machine would give auto-alarm when the bottles are insufficient or the bottles blocked. The machine would pause there. When the problems are solved, the machine can be normal work status again. It doesn't need certain people to watch it at any time.
4. Key pneumatic parts, especially integrated solenoid valve and cylinder for closing door are from Japan CKD, to ensure filling accuracy
5. You can set the quantity of the drugs (15~9999) on the touch screen. This can monitor the dropping status of drugs on the tracks at any time.
Feeding unit
Use 3-sep electromagnetic vibrator, frequency is variable, to separate granules rapidly
The 3-sep vibrators avoid granule overlapping
3-step dust collection design, the dust is removed when granules dropped, to avoid dust contamination
Counting unit
Use IR (infrared ray) dynamic scan technology, good counting accuracy
The IR scan eye has automatic light compensation function; limit warning & shutdown function
| CZG80/16 |
Dimension: | 1160×2400×1670mm |
speed( tablets/min): | 0--6000 |
Net weight: | 500 Kg |
Filling quantities per bottle | 15~9999 |
tablets specification: | Thickness: 3~10mm Dia.: 3.~15mm Length: 3~25mm |
Number of tracks: | 16 |
Bottle size:: | Dia. φ30~φ75mm Height: 40~250mm |
Hopper cubage: | 40L |
Compressed air : | 0.5Mpa |
Conveyor length: | 2400mm |
Number of vibrators: | 3 |
