Home > Products > Tablet/ Capsule filling line > JFSM-1 Automatic Cotton Inserting Machine, Cotton Inserter Machine

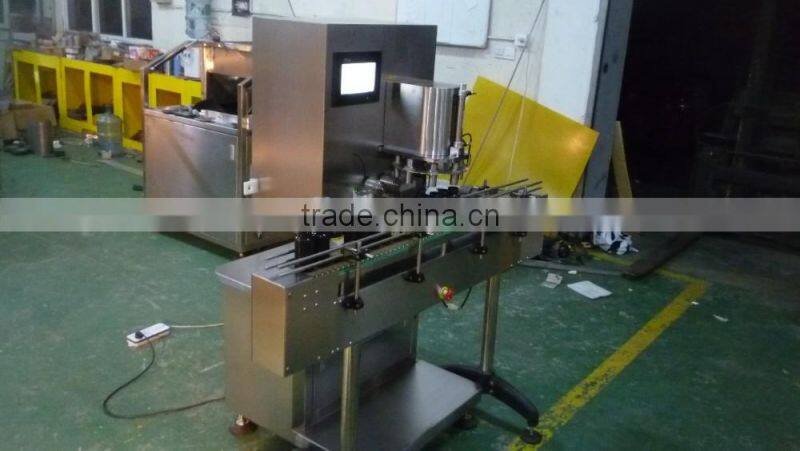

JFSM-1 Automatic Cotton Inserting Machine, Cotton Inserter Machine
- 100 Unit / Units per Month
- Shanghai Port China(Mainland)
- T/T Credit Card PayPal
You May Like
-
YL-2A Desktop Small Capsule Counting Machine
-
YL-2 Semi Automatic Capsule Counter Machine
-
YL-4 Manual Capsule Counting Filling Machine Price for Sale
-
YJA-90S Prefilled Syringe Unscramble Machine, Syringe Sorting Machine
-
DJL-4Z desktop electronic automatic counting machine for capsule and tablet
-
Hot selling High quality Automatic Pill Counting Machine for Capsule and Tablet
Product Details
| Condition | New | Application | Beverage, Chemical, Commodity, Food, Medical | |
| Packaging Type | Cartons | Packaging Material | Wood | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | 220V/50HZ | Power | 0.7 KW | |
| Place of Origin | Beijing, China | Brand Name | PF | |
| Model Number | JFSM-1 | Weight | 180kg, 180kg | |
| Certification | CE ISO | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
JFSM-1 Automatic Cotton Inserting Machine, Cotton Inserter Machine
Working principle
Artificial pull product loading to the edge of cotton roll. Machine can run automatically, Automatically into, snap, stuffing material pipe, go to the bottle mouth, into the bottle.Device automatically put the bottle in the right position, when positioning the time meet the parameters setted on the PLC, automatic bottle change by pneumatic system. Can realize full automatic operation and containing several times.
Main features
(1) Strong compatibility It’s height adjustable, suitable for all kinds of specifications, all kinds of round, flat, square, flat square bottles;
(2) Detection Don't work with no bottle, breakdown self check, fitted cotton in early and some other warning detection alarm control function.
(3) Special Stuffing cotton technology adopts pneumatic plug cotton, to avoid contamination of the machine for material.
(4) clean the suction aspiration, ensure the working environment clean.
(5) Adopts programmable controller PLC control, Chinese interface, touch screen, easy to learn, easy to operate;
(6) The machine adopts conform to GMP requirements of stainless steel and other materials.
Applicable bottle | inner diameter is 25~70mm |
Production capacity | 50 bottles per minute(It depends on the length and the diameter of the cotton) |
Power supply | AC220V 50Hz 0.7kw |
Air pressure | 0.5~0.7Mpa |
Weight | 180kg |
