Home > Products > Tablet/ Capsule filling line > cheapest price JF - B8 small desktop tablet, capsule, pill and soft capule counting machine

cheapest price JF - B8 small desktop tablet, capsule, pill and soft capule counting machine

FOB Price

USD $5,800 - $8,500 / Unit

1 Unit(Min.Order)

Port Shanghai China
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Jiangsu, China
Brand Name	PF	Model Number	DJL-4Z
Usage	Other, tablet/capsule/pill/soft capule	Production Capacity	10-30bottles/per bottle
Voltage	220V/50HZ	Power(W)	0.6kw
Weight	115kg	Dimension(LWH)	6101280780mm
Certification	GMP, ISO,	Warranty	1 Year
After-sales Service Provided	No overseas service provided

Product Description

cheapest price JF - B8 small desktop tablet, capsule, pill and soft capule counting machine

Main Function

The machine adopts the most advanced high resistance dust electronic counting technology. For tablet (including special-shaped pieces), hard capsule, soft capsule (various shapes transparent and opaque) pills and other size range in a 3-12 mm solid particle counting system. Bottles, boxes, bagging. Full compliance with GMP requirements, particularly applicable to research institutions, hospitals, new small pharmaceutical factory, health care products factory

Main features

(1) Good compatibility, high accuracy, wide applicable scope, can for tablet (including different pieces), capsule, soft capsule (transparent, opaque) pills to count bottling

(2)Applicability, using the company's original high resistance dust photoelectric sensing technology, in the case of high dust can work stable

(3)Vibration cutting unique patent agencies blanking not damage

(4)High intelligence :It has various alarm and control functions like no bottle no count, check fault automatically and so on.

(5)Automatic operation, and the upper and lower process intelligent spreading, coordinated, the need of personnel, to save human

(6)Cover an area of an area small, low use cost

(7)Easy to replace the varieties, remove the clear without any tools, convenient and quick

Structure compact, no high prices of wearing parts, low maintenance cost

Technical Parameters

Project	JF-B8
Application	00-5# capsules, soft gels, <Ø5.5~12 normal tablets, <Ø3-12 pills special shape tablets, coating tablets,and some other solid granules
Capacity	For 6mm tablet example , it can count about 1500 tablets per minute
Working Range	Adjustable from 1-9999 per bottle
Power supply and consumption	220V/50HZ 0.6kw
Size	140014001560mm
filling error	≤ 2‰ bottles
Material	SS316+SS304
Control System	MCU
Pressed Air Supply	0.6 Mpa
Weight	220kg

Configuration

Name	Producer
Photoelectric sensors	microchip chip and Taiwan electronic elements
Counting photoelectric sensor system	Optical components is from Taiwan ,and the microchip chip is from U.S., then developed and produced by our company.
Leakage protection	Schneider
Control Panel	Using the microchip chip is from U.S , developed and produced by our company
Interface	HITECH,Color touch screen

Raw Matieral:

Packaging & Shipping

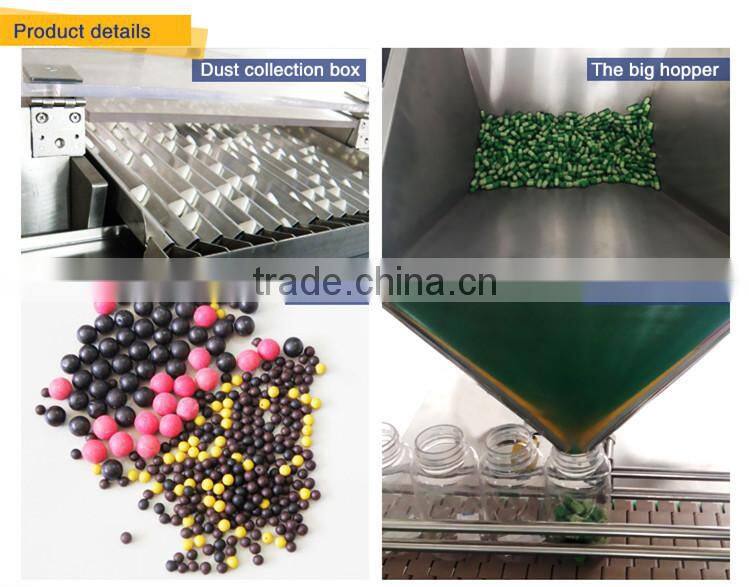

Factory show:

Our Services

Installing and Commission:

We will install and test the machine in best working condition before shipment. If customer requires our technician to adjusting the machine and train technician at arrival place, we will send technician there. All our expenses including round-trip air ticket to the nearest airport, local conveyance to your factory, Lodging&Boarding expenses shall be payable by you. In case the stay of our technician, additional service fee will be charged .

Warranty period:

One year for fully machine guarantee. And in this year if the machine broken caused by mechanical problem, all of the spare part is free. The service of the machine all though the machine’s life.
