CZG80/16 Fully Automatic High Speed Tablet Capsule Counting Machine

CZG80/16            Can counting 0~6000 tablets per minute

                           Number of feeding tracks is 16

NOTE: capacity data is based on φ5.5mm tablet, 50 tablets per bottle

DESCRIPTION

1. This product is applicable in pharmaceutical, food, health-care industry; it can count accurately and fill round tablet, shaped tablet, capsules, transparent soft gelatin capsules, pill or other solid drug or granular filling into container.

2. High speed. This product has 16 counting channels, 1 filling funnel; the maximum speed reaches 60 bottles per min.

3. The machine would give auto-alarm when the bottles are insufficient or the bottles blocked. The machine would pause there. When the problems are solved, the machine can be normal work status again. It doesn't need certain people to watch it at any time.

4. Key pneumatic parts, especially integrated solenoid valve and cylinder for closing door are from Japan CKD, to ensure filling accuracy

5. You can set the quantity of the drugs (15~9999) on the touch screen. This can monitor the dropping status of drugs on the tracks at any time.

                               Filling tolerance: ±1 drug in 1-3 bottles every thousand bottles

                               Advanced international control technology, PLC from Japan, HMI is easy to operate

                               According to GMP regulation, parts in contact with medicine material are made of AISI316 stainless steel, machine body made of AISI304 stainless steel. Easy to disassemble, convenient to clean and maintain

                                The machine has several protection devices, during production, no-man watch is possible

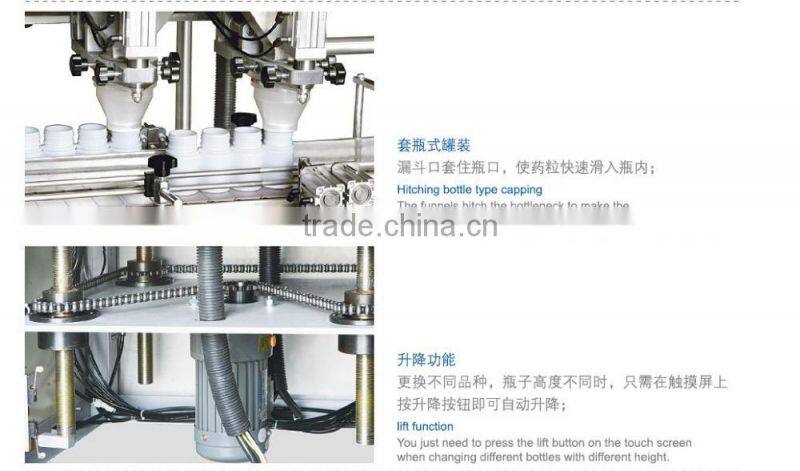

                                You just need to change the lifting buttons on the touch screen when changing different height bottles

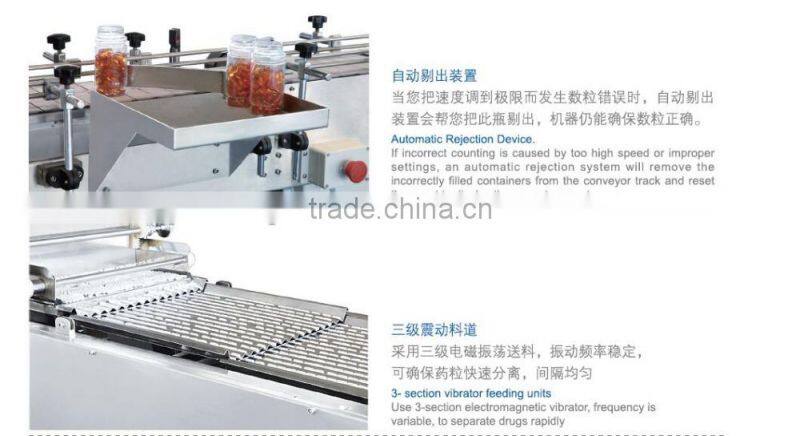

 Feeding unit

Installing and Commission:

We will install and test the machine in best working condition before shipment. If customer requires our technician to adjusting the machine and train technician at arrival place, we will send technician there. All our expenses including round-trip air ticket to the nearest airport, local conveyance to your factory, Lodging&Boarding expenses shall be payable by you. In case the stay of our technician, additional service fee will be charged .

Warranty period:

 One year for fully machine guarantee. And in this year if the machine broken caused by mechanical problem, all of the spare part is free. The service of the machine all though the machine’s life.
