Home > Products > Injection liquid/powder filling production line > ASMR Tunnel Hot Air Circulation Sterilizing Oven for sale
ASMR Tunnel Hot Air Circulation Sterilizing Oven for sale
- Shanghai port China(Mainland)
- T/T Credit Card
You May Like
-
GMS Series Tunnel Sterilizing Laminar Air Flow Oven
-
HDA Series Far Infrared Tunnel hot air Sterilizing Oven
-
AGF Series Vertical Ampoule Filling And Sealing Machine
-
YGZ Oral Liquid Filling And Capping Machine for vial bottles
-
KAGF Series Ampoule And Vial Filling-Sealing-Stoppling Machine
-
KGF Series Injection Vial Liquid Filling-Stoppling Machine
Product Details
Place of Origin | Shanghai, China | Brand Name | PF | |
Model Number | ASMR | Application | Other, ampoules, vial and oral liquid bottles, ampoule compact line | |
Type | Drying Machine | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

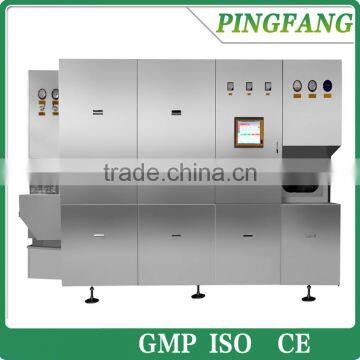

ASMR Tunnel Hot Air Circulation Sterilizing Oven for sale
I.Application:
With an integral tunnel structure, the machine includes three parts: the preheating area, high temperature sterilizing area and cooling area. It adopts the hot air laminar flow disinfection principle to carry out instant high temperature sterilization of the vessel. It is suitable for drying and sterilization of ampoules, antibiotic bottles, oral liquid bottles and other medicinal glass bottles. The machine adopts the advanced PLC man-machine interface control system. Through the man-machine interface control, the operating status of the machine is monitored and the requirements for production processes are met, while the combined control of the operating status for both the cleaning and filling equipments can also be realized to display the fault causes, locations, simple eliminating methods, and etc. In addition, temperature and curves can be recorded automatically.
II. Features:
1. It is provided with the power-off prevention self-heating device at the high temperature section, so there is no hidden risk of fire.
2. Process parameters relating to heating and running are preset.
3. The status of the parameters is displayed and records are printed automatically.
4. The circulation airflow is adjustable to ensure even temperature in the oven.
5. Temperature measuring points are set in the oven and at the oven ports.
6. It is provided with high efficiency filter DOP inspection ports.
7. The whole machine is designed in according with the GMP requirements.
III. Technical diameters:
Product Model | ASMR620-35 (38)(Air cooling) | ASMR620-43 (Air cooling) | ASMR620-48 (Air cooling) | ASMR800-55 (Air cooling) | ASMR1250-6000(Air cooling) | ASMR620-43 (Water cooling) | ASMR620-48 (Water cooling) | ASMR800-55 (Water cooling) |
---|---|---|---|---|---|---|---|---|
Applicable specifications(ml) | 1-20ml(Ampoule); 2-25ml(Vial, Oral liquid) | |||||||
Effective width of conveyor belt(mm) | 620 | 620 | 620 | 800 | 1250 | 620 | 620 | 800 |
Max sterilizing temperature (° C) | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 |
Temperature at bottle output (° C) | <40 | <40 | <40 | <40 | <40 | <40 | <40 | <40 |
Water consumption and temperature | / | / | / | / | / | Temprature:8℃ cooling water Cooling water consumption: 3T/h | Temprature:8℃ cooling water Cooling water consumption: 3T/h | Temprature:8℃ cooling water Cooling water consumption: 3T/h |
Air exhaust volume(m3/h) | 3000-4100 | 3500-4100 | 3500-4100 | 6600-8200 | 8500-9500 | 300 | 300 | 300 |
Sterilization in cooling section | Not included | Not included | Not included | Not included | Not included | Not included | Included | Included |
Power(kw) | 27.7kw(including heating power21.6kw) | 51kw(including heating power43kw) | 71kw(including heating power60kw) | 78kw(including heating power60kw) | 196kw(including heating power172kw) | 51kw(including heating power43kw) | 104kw(including heating power 60kw;cooling section sterilization power 32.4kw) | 152kw(including heating power 78kw,cooling section sterilization power 46.8kw) |
Cleanness | Class3 of international standard (Class100 of US standard) | |||||||
Overall dimensions (changeable upon request) (L × W × H)(mm) | 3550×1760 ×2343 | 4388×1465 ×2445 | 4738×1614 ×2445 | 5480×1950 ×2210 | 6200×2936 ×2670 | 4385×2050 ×2385 | 4887×1831 ×2343 | 6000×1870 ×2370 |
Weight(kg) | 2300 | 3000 | 3500 | 4000 | 6000 | 3500 | 4000 | 4500 |
Packaging Details: Export-standard and sea-worthy wooden case as following photos.
Delivery time: 15-45 working days normally
Free service: normal spare parts and quick worn parts will be delivered together with the main machine.
Huizhou Pingfang pharmaceutical machinery co. ltd. is a professional manufacturer and supplier for pharmaceutical machinery, pharmaceutical packing material company, who is standing firmly with a good reputation in the industry of China pharmaceutical machinery.
Our company focus on fabricating efficient and technically sound pharmaceutical machines that meets or exceed our customer’ expectations. Our vast product selection caters to numerous industries, worldwide. We are specializing in machinery including, pulverizes, mix, Granulate, tablet press machine, coating machine, soft capsules filling machine, hard capsules filling machine, ampoule filling and sealing machine, oral liquid filling production line, syrup machine, eyes drop filling machine, lyophilized powder production line, injectable vial powder filling production line, Ointment machine, Suppository machine, spray filling machine, pharmaceutical testing and experiment instrument, traditional Chinese medicine machine and packing materials. The packing materials including pharmaceutical PVC, PTP aluminum film, hard aluminum, vial, stopper, aluminum stopper, ampoule, glass, capsule, packing strap of suppository physic. Meanwhile, we can undertake turn key projects for conceptual design, process design, water treatment solutions, clean-room design, etc.
Because we stick to offer the high quality and competitive price to our customer, our machines have been exported many countries of world such as Singapore, Vietnam, Malaysia, Thailand , Bangladesh, USA, Russia, Pakistan, Nigeria, Chile, Germany, Denmark, Bolivia, Peru, Mexico, South Africa, Iran, Argentina, Canada, Australia, India, Kazakhstan, Turkey, Egypt, Brazil, Syria, Yemen and more. In order to offer the best quality, we manufacture our products in accordance with international standards, such as FDA, GMP, CGMP. We also be approved by CE, ISO certificate, too.
Our Customers:
Our Certificates:
Q1: What information should I let you know if I want to get quotation?
A: -the size of products (Length*Width*Height)
-the material
-if it is possible, please provide us the pictures or the design drawings, our designer will analyze your samples and give you exact details.
Q2: Is there MOQ for our machine?
A: 1 set is acceptable. Of course, if you order more, it will be fine and its price will be more competitive.
Q3: Do you have manual or operation video for us to know more about the machine?
A: Yes, of course. Please email us and ask for it. We will send you soon.
Q4: When can I get the price?
A: We usually quote within 24 hours after getting your inquiry. If you are urgent to get the price, please call us or tell us in your email. We will regard your inquiry priority.
Q5: How does your factory regard quality control?
A: Quality is priority. It’s the basement of company’s development. From the beginning of opening company, we especially focus on quality job. Our pharmaceutical equipment have passed the GMP model patents and invention patents issued by State Patent Office of China.
Pre-sale:
According to customer’s needs guide customers t configure the most appropriate device models. According to customer’s special requirements and working site provide list of equipment, equipment layout.
Dur-sale:
Inspect the product seriously before out of the factory. Invite customer for commissioning in the spot and raising the objection. Organize to delivery according to the contract.
After-sale:
Company can send technical data for guiding to install and debug the machine. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price. We also can provide 24-hour telephone or message service.
