Home > Products > Other pharmaceutical machinery > New Product Discount YHA-2 Series Fully-Automatic lifted Mixer Machine

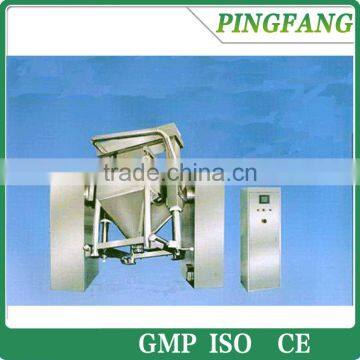

New Product Discount YHA-2 Series Fully-Automatic lifted Mixer Machine
- 10 Unit / Units per Month
- Shanghai port China(Mainland)
- T/T Credit Card
You May Like
-
YHA-1 Series fully-automatic lifted concrete mixer machine price
-
YSZ Series Hydraulic construction hoist lifting machine price
-
Hot sale YDX-Series Hydraulic electric Hoist Machine
-
YYSF Series moveable and telescopic hydraulic hoist machine
-
low price high quality YD Series hydraulic trolley lift between floors
-
NGV Series drum mixer Circulation concrete mixer drum for sale
Product Details
Place of Origin | Zhejiang, China | Brand Name | PF | |
Model Number | YHA-2 | Application | Other, Powder, mixing machine | |
Type | Mixing Machine | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
New Product Discount YHA-2 Series Fully-Automatic lifted Mixer Machine
I. Itroduction:
YHA-2 series fully-automatic mixer machine has a reasonable design, a compact structure, steady operation, high degree of homogeneity of material mixing and easy manipulation conforms with GMP standards of the medicine industry, fully satisfies the requirements for the enclosed production technology for solid preparations, and constitutes an ideal machine for mixing solid materials in silt form.
II. Features:
1.This machine can apply four mixing drums of different volumes, meet the requirement for production in large batches and for different varieties, and serve different purposes with the same machine.
2.This machine has and automatic inspection function. Through the use of PLC, touch screen display and frequency conversion speed regulation, the machine can automatically accomplish all the programs, and have a special man-machine interface and the function of storing and printing production date.
3.Through the use of mechanical transmission, it avoids oil leakage due to hydraulic transmission and environment pollution and medicine quality arising there from.
4.The mixing drum is detachable so that frequent material transfer is not needed during the production, to prevent flying dust and cross contamination, to optimize material transfer process, and to make washing easy.
5.This machine has double infrared detectors, AV alarm safety device and shock absorption device with easy and steady operation.
6.The whole machine is made of 304 stainless steel and its surface is treated against light pollution. All main components are of international brand names.
III. Technical Parameters:
Parameter/model | YHA-2A | YHA-8B | YHA-2C |
Mixing (rpm) | 8-12 | ||
Dimensions (mm) | 2250*3340*3040 | 1950*2300*2480 | 2250*3340*2720 |
Working area (mm) | 3400*3340*3500 | 2700*2300*2800 | 3100*3340*3200 |
Total power (kw) | 7 | 5.5 | 5.5 |
Loading coefficient | 50-80 | ||
Max. net load (kg) | 1000 | 350 | 600 |
Lifting speed (mm/min) | 580 | ||
Suitable drum specification | 1000L,1200L,1500L,2000L | 400L,600L,800L | 1000L,1200L |
Equipment weight (kg) | 2500 | 1600 | 2300 |
Packaging Details: Export-standard and sea-worthy wooden case as following photos.
Delivery time: 15-45 working days normally
Free service: normal spare parts and quick worn parts will be delivered together with the main machine.
Huizhou Pingfang pharmaceutical machinery co. ltd. is a professional manufacturer and supplier for pharmaceutical machinery, pharmaceutical packing material company, who is standing firmly with a good reputation in the industry of China pharmaceutical machinery.
Our company focus on fabricating efficient and technically sound pharmaceutical machines that meets or exceed our customer’ expectations. Our vast product selection caters to numerous industries, worldwide. We are specializing in machinery including, pulverizes, mix, Granulate, tablet press machine, coating machine, soft capsules filling machine, hard capsules filling machine, ampoule filling and sealing machine, oral liquid filling production line, syrup machine, eyes drop filling machine, lyophilized powder production line, injectable vial powder filling production line, Ointment machine, Suppository machine, spray filling machine, pharmaceutical testing and experiment instrument, traditional Chinese medicine machine and packing materials. The packing materials including pharmaceutical PVC, PTP aluminum film, hard aluminum, vial, stopper, aluminum stopper, ampoule, glass, capsule, packing strap of suppository physic. Meanwhile, we can undertake turn key projects for conceptual design, process design, water treatment solutions, clean-room design, etc.
Because we stick to offer the high quality and competitive price to our customer, our machines have been exported many countries of world such as Singapore, Vietnam, Malaysia, Thailand , Bangladesh, USA, Russia, Pakistan, Nigeria, Chile, Germany, Denmark, Bolivia, Peru, Mexico, South Africa, Iran, Argentina, Canada, Australia, India, Kazakhstan, Turkey, Egypt, Brazil, Syria, Yemen and more. In order to offer the best quality, we manufacture our products in accordance with international standards, such as FDA, GMP, CGMP. We also be approved by CE, ISO certificate, too.
We have established business relationship with many directly customers and have many agencies from abroad.
Customer service including technical support, installation & commissioning after sale.
Welcome all of friends from abroad to our company and establishing good business cooperation.
Our Customers:
Our Certificates:
Q1: What should I do to choose the best machine for us?
A: Tell me the size and shape of the tablet you need to press, and the capacity of the machine you need. We will suggest you the most suitable and economical one.
Q2: Does molds customized accepted,
A: Yes. Please send us your mould design, and the diameter you need, then we'll offer you the best price according to your requirement.
Q3: Do you have manual or operation video for us to know more about the machine?
A: Yes. We'll send you the manual and operation video after you asking from us.
Q4: When can I get the price?
A: We usually quote within 24 hours after getting your inquiry. If you are urgent to get the price, please call us or tell us in your email. We will regard your inquiry priority.
Q5: How does your factory regard quality control?
A: Quality is priority. We always attach great importance to quality control from raw material to the very end.
Pre-sale:
According to customer’s needs guide customers t configure the most appropriate device models. According to customer’s special requirements and working site provide list of equipment, equipment layout.
Dur-sale:
Inspect the product seriously before out of the factory. Invite customer for commissioning in the spot and raising the objection. Organize to delivery according to the contract.
After-sale:
Company can send technical data for guiding to install and debug the machine. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price. We also can provide 24-hour telephone or message service.
