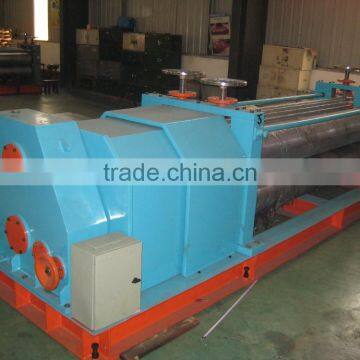

machine make forming corrugated steel roof sheet

FOB Price

USD $10,000 - $40,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China		Brand Name	everbright
Model Number	XH44-C XH37-C		After-sales Service Provided	Engineers available to service machinery overseas

No.	Main parameter of roll forming machine
1	Suitable to process	GI,PPGI
2	Type of the product	right angle steel (as your need)
3	Thickness of the plate	0.14-0.8mm
4	De-coiler	opinional
5	Rollers for forming	9 rows
6	Diameter of the roller	74 mm
7	Rolling material	GCr15
8	Main motor power	8-11kw,5#
9	Productivity	8-12m/min
10	Cutting method	Hydraulic mould cutting
11	Material of the cutting blade	Cr12
12	Hydraulic cutting power	3kw
13	Processing precision	Within 1.00mm
14	Control system	Delta PLC control
15	Side panel of machine	14mm
16	Main structure of the machine	300 H steel
17	Weight	About 2.0T
18	Dimensions	600020001506mm
19	Voltage	380V 50Hz 3phases(changeable as needs)
