Liaocheng Everbright Import And Export Co., Ltd.: Liaocheng, Shandong, China; Main products: galvanized steel sheet, prepainted steel sheet, galvanized corrugated steel sheet, profile steel sheet, roofing sheet

Home > Products > New Products > corrugated metal zinc roofing roll forming machine

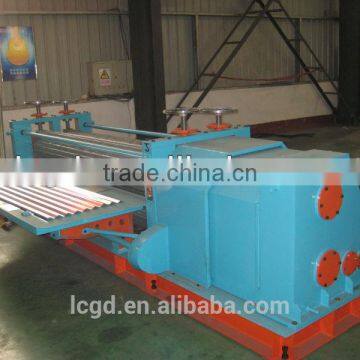

corrugated metal zinc roofing roll forming machine

FOB Price

USD $25,000 - $40,000 / Unit

1 Unit(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Cold Rolling Mill
Place of Origin	Shandong, China	Brand Name	everbright
Model Number	XH44-C	Voltage	380v
Power(W)	8-11	Dimension(LWH)	610020001506mm
Weight	9ton	Certification	ISO
Warranty	1year ,whole life technical support	After-sales Service Provided	Engineers available to service machinery overseas

1.used for making roofing sheet
2.model:XH44-C
3.Certificate:ISO9001:2008
4.Power of main motor:8-11kw
5.Guarantee:1 year

No.	Main parameter of roll forming machine
1	Suitable to process	GI,PPGI
2	Type of the product	right angle steel (as your need)
3	Thickness of the plate	0.14-0.8mm
4	De-coiler	opinional
5	Rollers for forming	9 rows
6	Diameter of the roller	74 mm
7	Rolling material	GCr15
8	Main motor power	8-11kw,5#
9	Productivity	8-12m/min
10	Cutting method	Hydraulic mould cutting
11	Material of the cutting blade	Cr12
12	Hydraulic cutting power	3kw
13	Processing precision	Within 1.00mm
14	Control system	Delta PLC control
15	Side panel of machine	14mm
16	Main structure of the machine	300 H steel
17	Weight	About 2.0T
18	Dimensions	600020001506mm
19	Voltage	380V 50Hz 3phases(changeable as needs)
