YSP45 STOPER ROCK DRILL

Operational Manual

Instruction

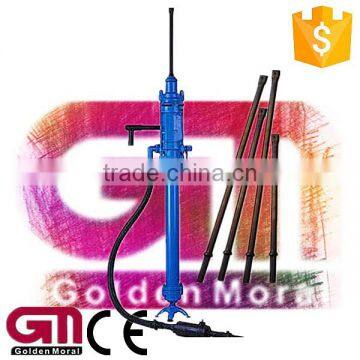

The YSP45 stoper rock drill drilling in quarry and coal or lineston mine.It’s robust design for tough working condition.It has high inpaxct frequency and is mainly used for producting drilling,raise driving ,bolting and other defence project facility.It’s high efficiency,upward(60-90 degree) drilling,tough working condition blasting.

   Specification:

Weight:                                                 44kg

Length                                      1420*390*160mm

Cylinder Dia                                           95mm

Piston Stroke                                           47mm

Air Leg Push Stroke                                    750mm

Leg cylinder inner Dia                                    74mm

Work pressure                                     0.4-0.63Mpa

Air consumption                                        83L/S

Impact frequency                                        47Hz

Rotation Speed                                       350r/min

Air pressure                                           0.5Mpa

Air Pipe Inner Dia                                       25mm

Water Pipe Inner Dia                                     13mm

Hole Drilling Dia                                     34-42mm

Max Deepth                                             5m

ShankSize                                        H22*108mm

FY250A Oil Lubricator:

Weight                                                 2.5kg

Oil Capacity                                            0.52L

   Working Manual

YSP45 Stoper rock drill operate by the air compress repeatedly.The pistion stroke the shank,and then piston turning with the shank.The adjust pressure valve of back head control the pusher,the air leg to inlet air by adjust pressure valve.

   Use and Maintains

 Notice

1         Machine should be oiled by the rustproof grease, before using. On using, reoil machine and assemble it .

2         When connecting water pipe and air pipe, blow off dirty to protect parts.

3         Before open machine, should inspect the flexibility and reliability of all control structure and operation part; oil reservoir be filled with lubrication, and measure oil quantity well, ensure mahine run regularly.

4         When finishing using machine,cut off water supply and let machine run slowly ,then blow off the rest moisture to avoid rusting parts.

5         The machine which often use, should pay attention to maintenance. Examine and repair every week at least, Clean the dirty within the machine and note to replace and change the damage and invalidation parts, eliminate the malfunction and hidden trouble.

6         If machine should store for a long time, diamantle machine for clean, oil and seal , then placed a dry place.

Air pipe and pressure

1,Air pipe inner dia. is 25mm and it’s length is ≤20mm. Pipe connector dia. is ≥20mm.

2,This diagram show the relation between speed and air pressure

(0.4-0.63Mpa for better).

Lubrication

Lubrication has great influence in the performance and working life.Do not operate machine without lubricating oil
