Home > Products > Air Cooled Diesel Generator > Cheap Price High Quality 5kva Small Silent Diesel Generator
Cheap Price High Quality 5kva Small Silent Diesel Generator
- SHANGHAI
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Factory Directly 10kw Small Water Cooled Diesel Generator
-
Factory Direct 5kw/5kva Small Silent Diesel Generator Price
-
Factory Direct 5kw Welding Generator Diesel Price
-
Factory Directly Powerful Engine 178f for 3kva Generator
-
Factory Directly 5kw Silent Diesel Generator Electric Start
-
Factory Directly 2kw Generator
Product Details
| Place of Origin | Jiangsu, China | Brand Name | TOPTEK | |
| Model Number | TDG6000SE | Output Type | AC Single Phase | |
| Speed | 3000/3600rpm | Frequency | 50/60Hz | |
| Rated Power | 4.5KVA/5.0KVA | Rated Voltage | 220~240V | |
| Rated Current | 21.7A |
Product Description
cheap price high quality 5kva small silent diesel generator
Reliable fuel injection system (NJ weifu brand)guarantee the engine stable moving.
Professional technical are available for installation guarantee the genset evry few breakdowns.
specification of small silent diesel generator:
| Model | TDG6000SE | ||
| Generator | Frequency(Hz) | 50Hz | 60Hz |
| Max. AC output(kva) | 5.0kva | 5.5kva | |
| Rated AC output(kva) | 4.5kva | 5.0kva | |
| DC.Current(A) | 12V/8.3A | ||
| Phase. | Single phase | ||
| Insulation. | B | ||
| Power factor(cosφ) | 1 | ||
| Rated AC voltage(V) | 110,120,220,230,240,110/220,120/240 | ||
| Engine | Model. | TD186FA | |
| Engine Type. | Air Cooled,4 Stroke,Single Cylinder,Vertical | ||
| Max power output(HP) | 10HP | ||
| Displacement(cc) | 418cc | ||
| Compressing ratio. | 19:1 | ||
| Engine speed(rpm) | 3000rpm | 3600rpm | |
| Starting system. | Recoil and Electric. | ||
| Lubracation System | Pressure splashed | ||
| Fuel tank capacity(L) | 15L | ||
| Lube oil capacity (L) | 1.65L | ||
| Noise level(dB / 7M) | 75dB(A) | ||
| conveyance | N.W./G.W.(kg) | 165/ 180kg | |
| Packing Dimension(mm) | 960x560x740 mm | ||
| 20'L/40'HQ (set) | 72sets/144sets | ||
Engine Factory:
Generator factory:

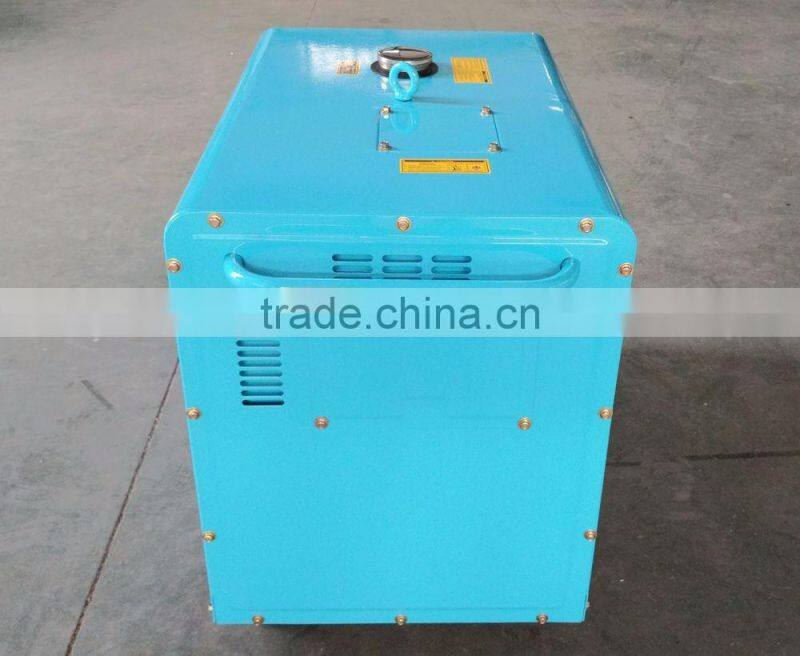

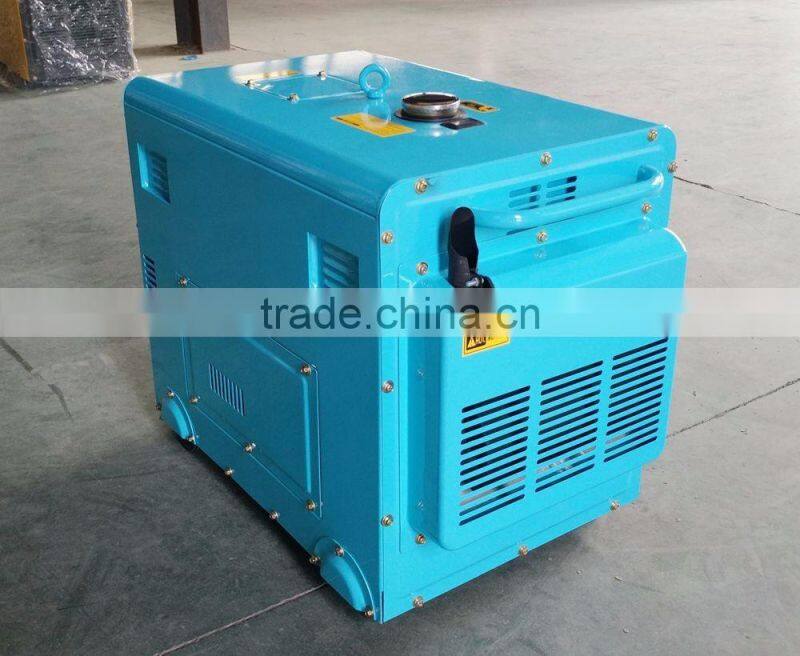

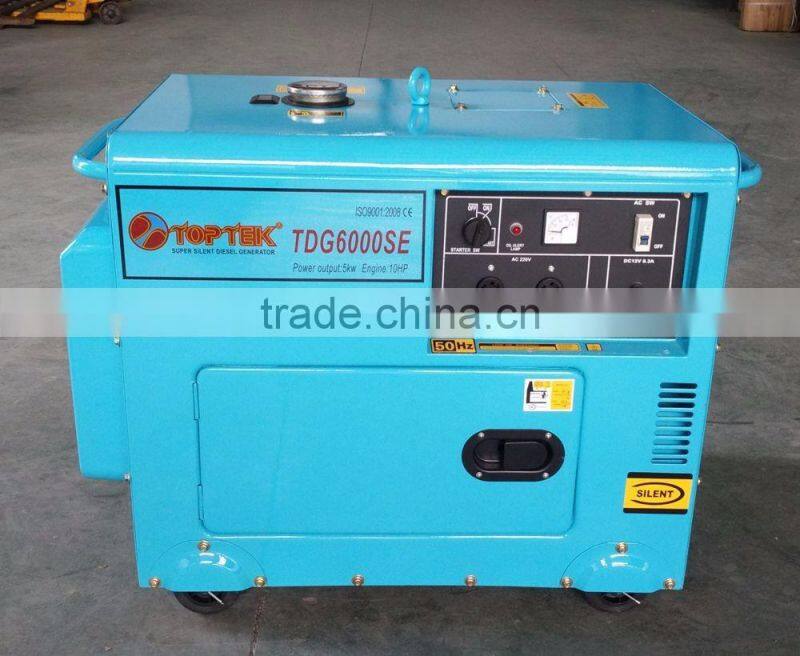

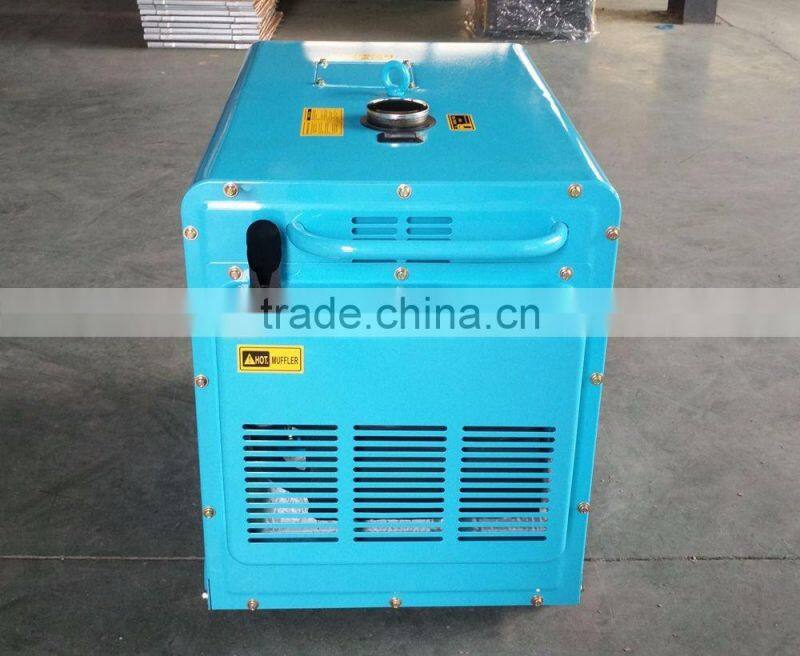

5kva small silent diesel generator pictures:
Approved Certificate:
Sales promises:
TOPTEK POWER provides a full line of brand new and high quality products, each and every units are strictly factory tested before shipment.
Payment Terms:
T/T or L/C, 30%T/T as deposit, the balance should be paid before shipment or against electronic B/L.
FAQ:
1)What’s the time deliver?
Re:
15~20working days after receiving payment
2)What's the life span of your product running 8 hrs a day 7 days a week?
Re:
within 500hours, it will be ok, then you need change the outside parts such as air filter, muffler, piston and piston ring after 500hours.
(PS: we recommend you buy the good quality air filter, muffler. of course, the price will be higher.)
3)What's the service or insurance that your company offer to the product?
Re:
a. Guarantee for one year or 500hours (accord to whichever reach first) from ex-factory date.
b. All the failed units can be removed under the permission of manufacturer.
c. During the guarantee period, We will provide the free easy-damaged spare-parts for problems caused by our quality of production or raw material, except the damageable spare parts of diesel engine caused by customer's incorrect man-made operation. After expiration, our company provides cost spare-parts maintenance for gensets/engines.
4)What differentiate your product from the competition?
Re:
a) We are professinal engine manufacture, have our own factories and facilities, it's easier to control our cost and quality.
b) our factory is located in yangzhou, jiangsu province, it is a manufacture base of generators, with affluent raw material, low cost , and it is close to SHANGHAI port, with better transportation.
c) good quality alternator are famous in our area ( gaoyou alternator)
d) we have many years of export experience, Currently we export to Philippines, Singapore, Jordan, Indonesia, Sri Lanka, etc, rich experience in OEM service.
e) many years of manufacture experience, mature installation technology, compact structure of products, perfect performance.
f) large quantity orders(8x40'HQ) in every months that guarantee the competitive prices on materials, and that means the competitive prices on products.
g) we are ISO9001:2008 certificated factory, all products are CE approved.
5)What's the service for maintenance I need to do? And when?
Re:
in the first 50hours, you need change the engine oil and wash the oil filter, engine oil is a major factor affecting engine performance and service life. then you need also check the air cleaner element to be sure it is clean and in good condition. if the element is dirty, clean it, replace the element if it is damaged. also you need wash the fuel injection pump and fasten the nut. then every 100hours do the same until up to 500hous.
any more questions pls contact person: Arthur Zhang (phone:+86-18852593763)
wechat ID: 18852593763
