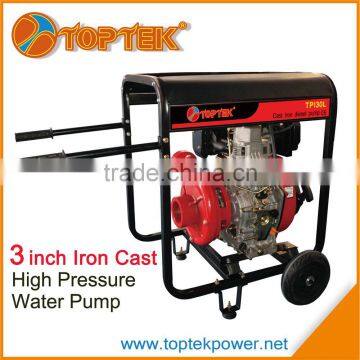

186fa Engine 3 Inch Iron Cast Diesel High Pressure Water Pump
- shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
High Efficiency 4 Inch Agriculture Diesel Engine Water Pump
-
Manufacturer 3 Inch High Pressure Iron Cast Portable Diesel Water Pump
-
Small Model Cheap Price 2 Inch Mini Diesel Water Pump
-
High Efficiency 4 Inch Electric Farm Irrigation Diesel Water Pump
-
2016 Hot Sale 3inch Water Pump With Diesel Engine
-
Factory Direct Agriculture Use 2 Inch 3 Inch 4 Inch Diesel Engine Centrifugal Pump Price
Product Details
| Place of Origin | Jiangsu, China | Brand Name | TOPTEK | |
| Model Number | TPI30L | Theory | Centrifugal Pump | |
| Structure | Piston Pump | Usage | Water | |
| Power | Other, 10hp/186fa | Standard or Nonstandard | Standard | |
| Fuel | Diesel | Pressure | High Pressure | |
| Application | Other, irrigation, construction of water pumping, fire, etc. |
Product Description
186fa engine 3 inch iron cast diesel high pressure water pump
the detailed specification of diesel high pressure water pump:
| Model | TPI30L | |
Pump | Outlet Size (inch)/mm | (3" )/80mm |
| Inlet Size (inch)/mm | (3" )/80mm | |
| Max.Capacity(m³/hr) | 38.3 | |
| Max.Head (m) | 60 | |
| Suction.Head(m) | 8 | |
| Self-priming time(4m/s) | 180s | |
| Engine | Engine Model | TD186FA |
| Bore stroke(mm) | 86×72 | |
| Max Power Output(HP) | 10HP(7.3kw) | |
| Recommend Power Using | 9.3HP(6.8kw) | |
| Speed | 3600rpm | |
| Start System | Recoil | |
| Lubricating system | Pressure splashed | |
| Fuel | 0#(summer),-10#or-20#(winter)diesel | |
| Ignition Syetem | Explode Ignition | |
| Fuel Tank Capacity(L) | 12.5L | |
| Fuel Consumption(g/kwh) | 285.6/3600 | |
| Lube Capacity(L) | 1.65L/0.29gallon | |
| Conveyance | Packing Dimension(mm) | 655x480x725mmmm |
| Net Weight(kg) | 69/70 kg | |
PS:
1) All diesel high pressure water pump are CE and ISO9001 approved.
2) factory profile:

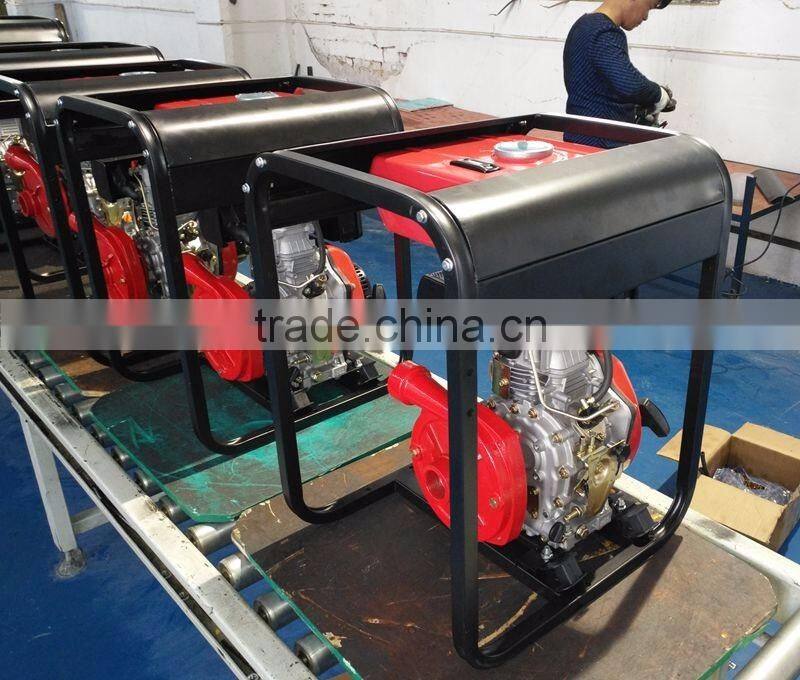

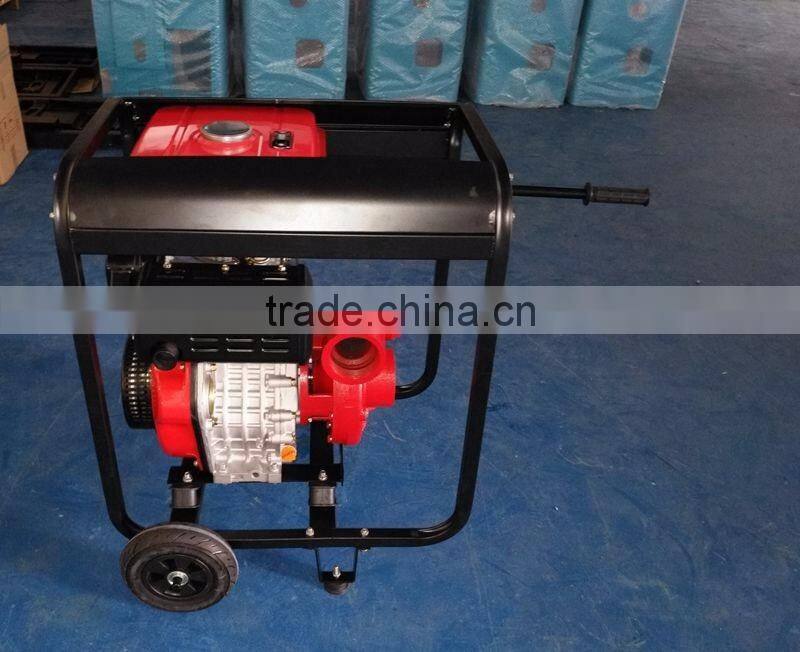

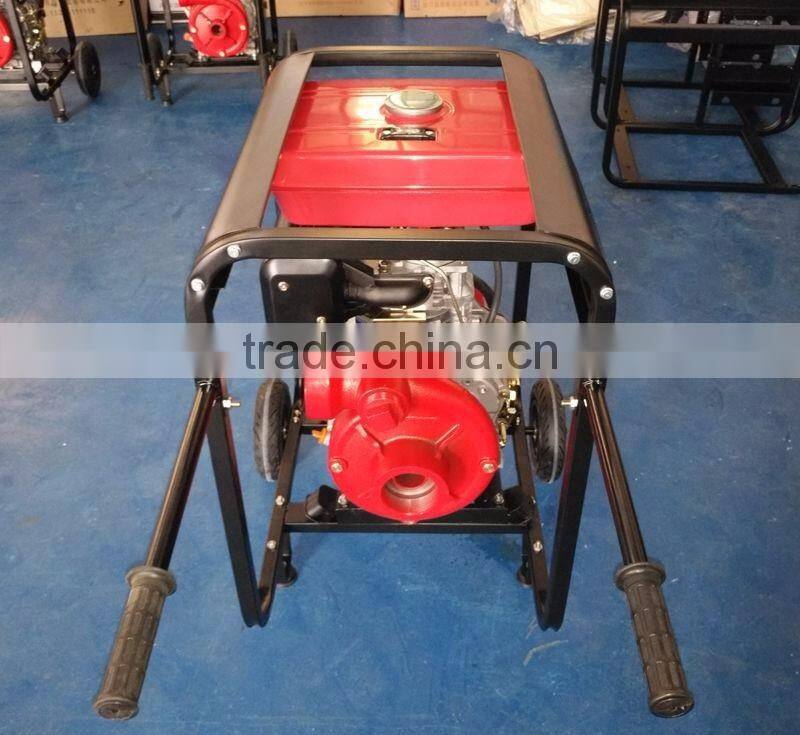

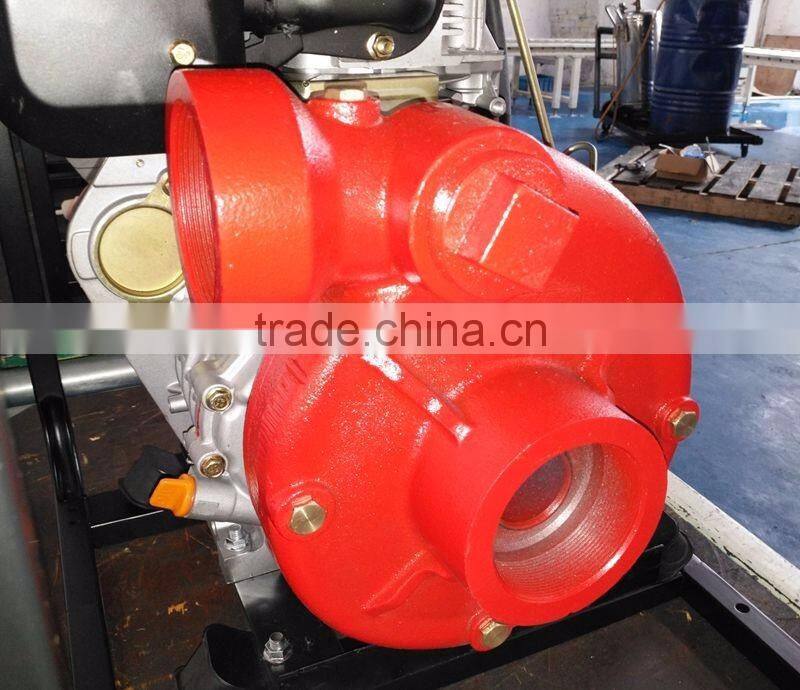

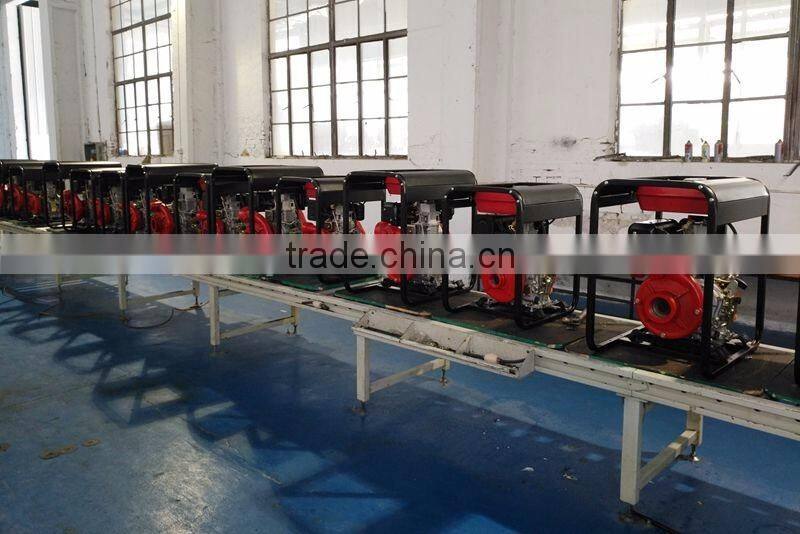

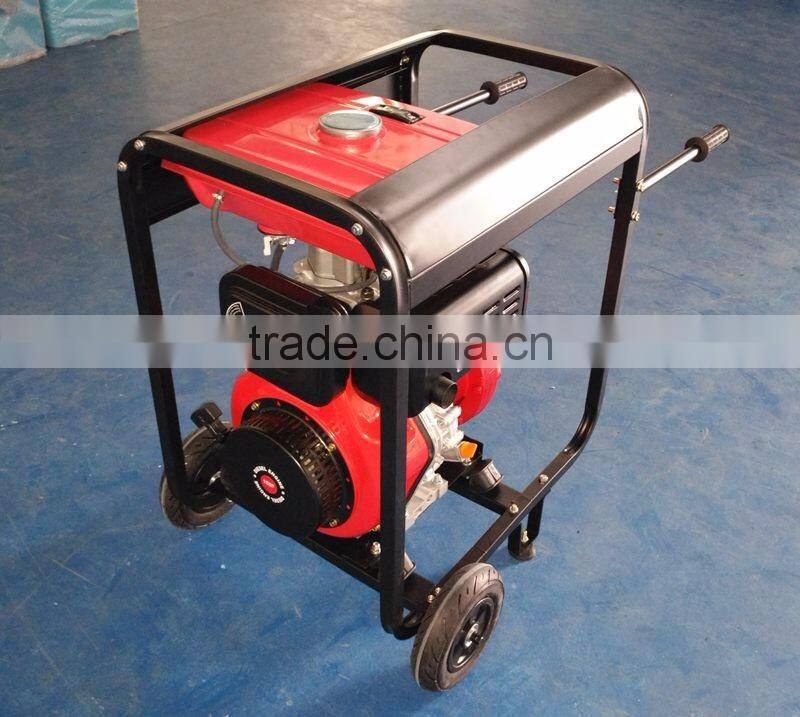

the relevant pictures of diesel high pressure water pump:
Our experiences and service:
1. Advanced automatic production line, high quality staff and mature installation technology.
2.We are manufacturer and we have our own export right.
3.Top quality, competitive price and many years of OEM service.
4.As your design for the package and brands.
5.Sample is available.
Packing details:
We use standerd export carton with plastic cover packing for diesel high pressure water pump, and if you have any special requirements, please tell us in advance, we will try to meet you.
Sales promise:
TOPTEK POWER provides a full line of brand new and high quality products, each and every units are strictly factory tested before shipment.
our products range as below:
Payment Terms:
T/T or L/C, 30%T/T as deposit, the balance should be paid before shipment or against electronic B/L.
FAQ:
1)What’s the time deliver?
Re: 15~20working days after receiving payment
(We usually complete the production within 15days after receiving your payment. But it also depends on your quantity or models, and sea shipping for all goods.)
2)What's the life span of your product running 8 hrs a day 7 days a week?
Re:
within 500hours, it will be ok, then you need change the outside parts such as air filter, muffler, piston and piston ring after 500hours.
(PS: we recommend you buy the good quality air filter, muffler. of course, the price will be higher.)
3)What's the service or insurance that your company offer to the product?
Re:
a. Guarantee for one year or 500hours (accord to whichever reach first) from ex-factory date.
b. All the failed units can be removed under the permission of manufacturer.
c. During the guarantee period, We will provide the free easy-damaged spare-parts for problems caused by our quality of production or raw material, except the damageable spare parts of diesel engine caused by customer's incorrect man-made operation. After expiration, our company provides cost spare-parts maintenance for gensets/engines.
4)What differentiate your product from the competition?
Re:
a) We are professinal engine manufacture, have our own factories and facilities, it's easier to control our cost and quality.
b) our factory is located in yangzhou, jiangsu province, it is a manufacture base of generators, with affluent raw material, low cost , and it is close to SHANGHAI port, with better transportation.
c) good quality alternator are famous in our area ( gaoyou alternator)
d) we have many years of export experience, Currently we export to Philippines, Singapore, Jordan, Indonesia, Sri Lanka, etc, rich experience in OEM service.
e) many years of manufacture experience, mature installation technology, compact structure of products, perfect performance.
f) large quantity orders(8x40'HQ) in every months that guarantee the competitive prices on materials, and that means the competitive prices on products.
g) we are ISO9001:2008 certificated factory, all products are CE approved.
5)What's the service for maintenance I need to do? And when?
Re:
in the first 50hours, you need change the engine oil and wash the oil filter, engine oil is a major factor affecting engine performance and service life. then you need also check the air cleaner element to be sure it is clean and in good condition. if the element is dirty, clean it, replace the element if it is damaged. also you need wash the fuel injection pump and fasten the nut. then every 100hours do the same until up to 500hous.
if any more questions pls contact person: Arthur Zhang (phone:+86-18852593763)
wechat ID: 18852593763 we will wholeheartedly give you the best service.
