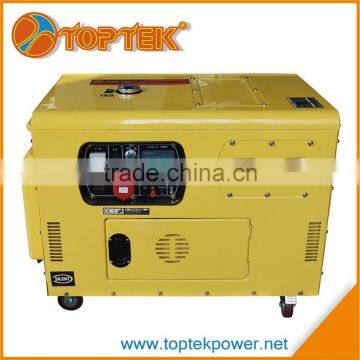

Air Cooled 2 Cylinder Diesel Power Generator 8kva
- SHANGHAI
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
220V Air Cooled Single Phase 8kva Silent Diesel Generator
-
50Hz/230V 5kw Diesel Generator for Myanmar Market
-
Factory Direct Cheap Price 2kw Diesel Generator
-
5kw Diesel Generator Fuel Consumption per Hour
-
Hot Sale 186fa Diesel Engine 418cc 5kw Portable Diesel Generator
-
Manufacturer Water Cooled 220V Silent Type 10kw Diesel Generator
Product Details
| Place of Origin | Jiangsu, China | Brand Name | TOPTEK | |
| Model Number | TDG10000SE | Output Type | AC Single Phase | |
| Speed | 3000/3600rpm | Frequency | 50/60Hz | |
| Rated Power | 8kva/9kva | Rated Voltage | 220V | |
| Rated Current | 36A |
Product Description
air cooled 2 cylinder diesel power generator 8kva
diesel power generator specification:
| Model | TDG10000SE | |
| Frequency(HZ) | 50 | 60 |
| Rated Speed(rpm/min) | 3000 | 3600 |
| Rated Power(KVA) | 8 | 9 |
| Max.Power(KVA) | 9 | 10 |
| Engine Model | 2V86FE/17HP | |
| Engine Type | two cylinder, V-type, 4-stroke | |
| Starting Way | Electric start with barrtery | |
| Cooling Way | air-cooled | |
| Rated Power Fuel Consumption g/Kw.h | <365/3000min | <375/3600min |
| Inlet Way | normally aspirated | |
| Compressed Ratio | 20:1 | |
| Bore*Stroke(mm) | 2-86*72 | |
| Displacement(L) | 0.840 | |
| Firebox Type | Swirl | |
| Fuel Capacity(L) | 35 | |
| Fuel Type | 0#(Summer),-10#(Winter)Diesel Oil | |
| Noise(dB)(@7m) | 75 | 75 |
| Voltage(V) | 220,230,240,220/110,220/380,230/400,240/415 | |
| Phase | Single Phase | |
| Power Factor | 1 | |
| Open/Silent | Silent | |
| Overall Dimension(mm) | 1220*760*900 | |
| Weight(Kg) | 255/285 | |
Factory profile:
diesel power generator photos:
8kva silent diesel generator control panel:
the accessories included:
Approved certification:
Sales promises:
TOPTEK POWER provides a full line of brand new and high quality products, each and every units are strictly factory tested before shipment.
our products range:
Payment Terms:
T/T or L/C, 30%T/T as deposit, the balance should be paid before shipment
FAQ:
1)What’s the time deliver?
Re:
15~20working days after receiving payment
2)What's the life span of your product running 8 hrs a day 7 days a week?
Re:
within 500hours, it will be ok, then you need change the outside parts such as air filter, muffler, piston and piston ring after 500hours.
(PS: we recommend you buy the good quality air filter, muffler. of course, the price will be higher.)
3)What's the service or insurance that your company offer to the product?
Re:
a. Guarantee for one year or 500hours (accord to whichever reach first) from ex-factory date.
b. All the failed units can be removed under the permission of manufacturer.
c. During the guarantee period, We will provide the free easy-damaged spare-parts for problems caused by our quality of production or raw material, except the damageable spare parts of diesel engine caused by customer's incorrect man-made operation. After expiration, our company provides cost spare-parts maintenance for gensets/engines.
4)What differentiate your product from the competition?
Re:
a. We are professinal engine manufacture, have our own factories and facilities, it's easier to control our cost and quality.
b. our factory is located in yangzhou, jiangsu, it is a manufacture base of generators, affluent raw material, low cost and so on.
c. good quality alternator are famous in our area ( gaoyou alternator)
d, we have many years export experience, Currently we export to Philippines, Singapore, Jordan, Indonesia, Sri Lanka, etc, rich experience in OEM service.
e, many years manufacture experience, mature installation technology, compact structure of products, perfect performance.
5)What's the service for maintenance I need to do? And when?
Re:
in the first 50hours, you need change the engine oil and wash the oil filter, engine oil is a major factor affecting engine performance and service life. then you need also check the air cleaner element to be sure it is clean and in good condition. if the element is dirty, clean it, replace the element if it is damaged. also you need wash the fuel injection pump and fasten the nut. then every 100hours do the same until up to 500hous.
if any more questions pls contact person: Arthur Zhang
