4x1000 Watts Single Phase Silent Mobile Light Tower Diesel Generator
- SHANGHAI
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
60Hz Open Type 220V Electric Diesel Generator 2500 Kva
-
ISO9001 Approved 2kw~10kw Portable Air-cooled Diesel Generator Power Plant
-
Factory Direct 60Hz Single Phase Portable 3.5kva Diesel Generator
-
Silent Type 418cc Low Price 5kva 3 Phase Diesel Generator
-
60Hz Portable Small Model Home Use 2.5kva Diesel Generator
-
Air Cooled V-type 2 Cylinder Portable 8000 Watt Diesel Generator
Product Details
| Place of Origin | Jiangsu, China | Brand Name | TOPTEK | |
| Model Number | TDG7500SE | Output Type | AC Single Phase | |
| Speed | 3000rpm | Frequency | 50Hz | |
| Rated Power | 5kw | Rated Voltage | 220~240V | |
| Rated Current | 22.7A |
Product Description

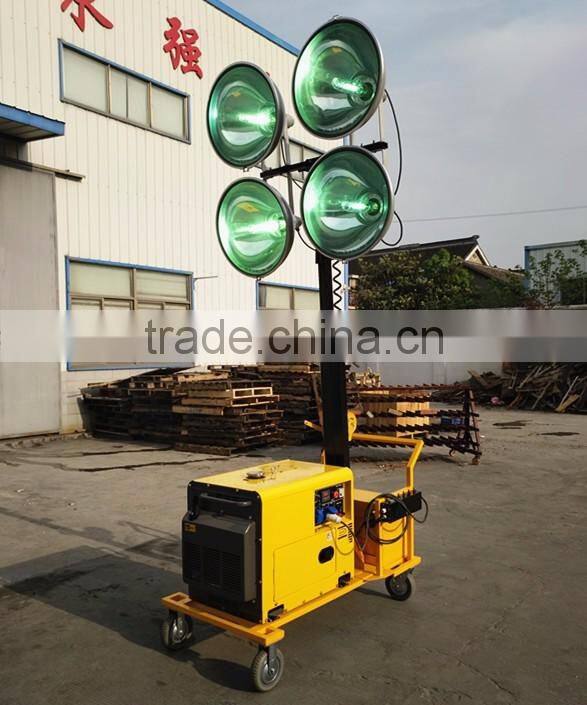

4x1000 watts single phase silent mobile light tower diesel generator
1.Detailed description for mobile light tower diesel generator
le light tower diesel generator using direct injection air-cooled engine, long life, low fuel consumption.
2.Special and vorious control panels are available for different market.
3.AVR automatic voltage to maintain stability and to ensure a smooth power on the voltage fluctuation sensitive equipment is especially important.
4.Engine oil warning system, fule display tables, etc.
5.Standby power for home use, leisure, agriculture and commerce.
6. provide suitable lifing points on top for easy moving.
7.reliable fuel injection pump assembly (NJ weifu brand) or (SHUNTIAN brand) guarantee generator high performance.
8.high quality alternator from Gaoyou city( the best manufacturer base of alternator)
9. silent diesel generator 5kw power for 4x1000 watts mobile light tower.
2.silent diesel generator 5kw specification:
| Model | TDG7500SE | ||
| Generator | Frequency(Hz) | 50Hz | 60Hz |
| Max. AC output(kw) | 5.2kw | 5.5kw | |
| Rated AC output(kw) | 5.0kw | 5.2kw | |
| DC.Current(A) | 12V/8.3A | ||
| Phase. | Single phase | ||
| Insulation. | B | ||
| Power factor(cosφ) | 1 | ||
| Rated AC voltage(V) | 220V/ | ||
| Engine | Model. | TD190FA | |
| Engine Type. | Air Cooled,4 Stroke,Single Cylinder,Vertical | ||
| Max power output(HP) | 13HP | ||
| Displacement(cc) | 476cc | ||
| Compressing ratio. | 19:1 | ||
| Engine speed(rpm) | 3000rpm | 3600rpm | |
| Starting system. | Electric start. | ||
| Lubracation System | Pressure splashed | ||
| Fuel tank capacity(L) | 15L | ||
| Lube oil capacity (L) | 1.65L | ||
| Noise level(dB / 7M) | 75dB(A) | ||
| conveyance | N.W./G.W.(kg) | 167/ 182kg | |
| Packing Dimension(mm) | 960x560x740 mm | ||
| 20'L/40'HQ (set) | 72sets/144sets | ||
Engine factory details:

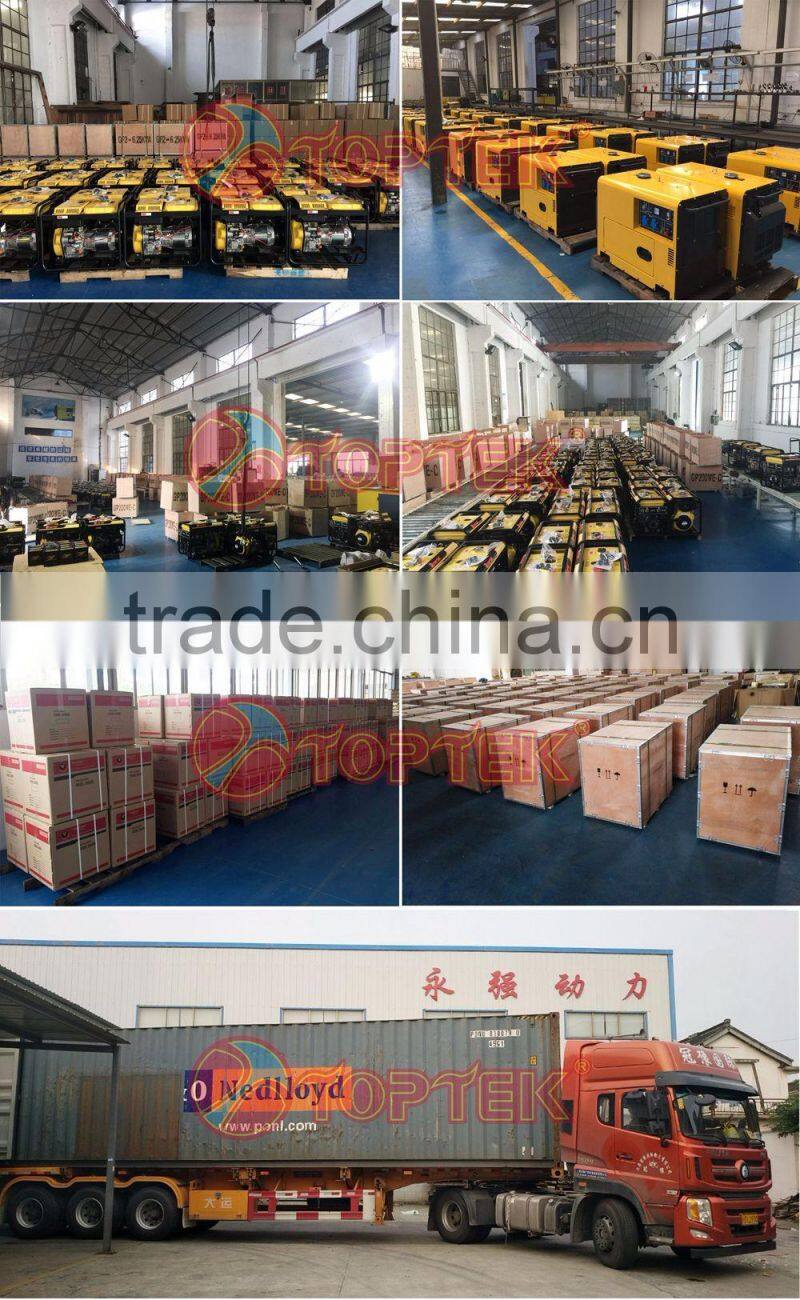

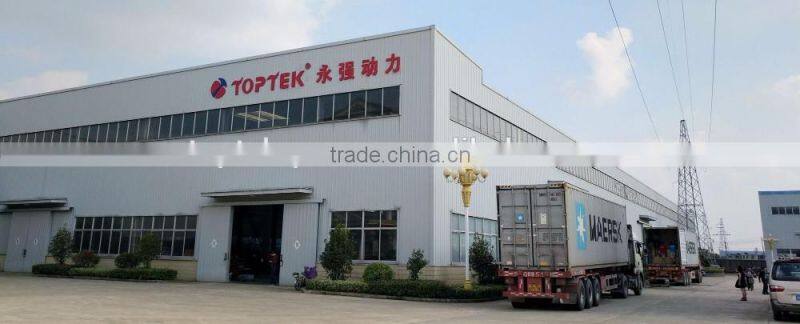

Generator factory details:

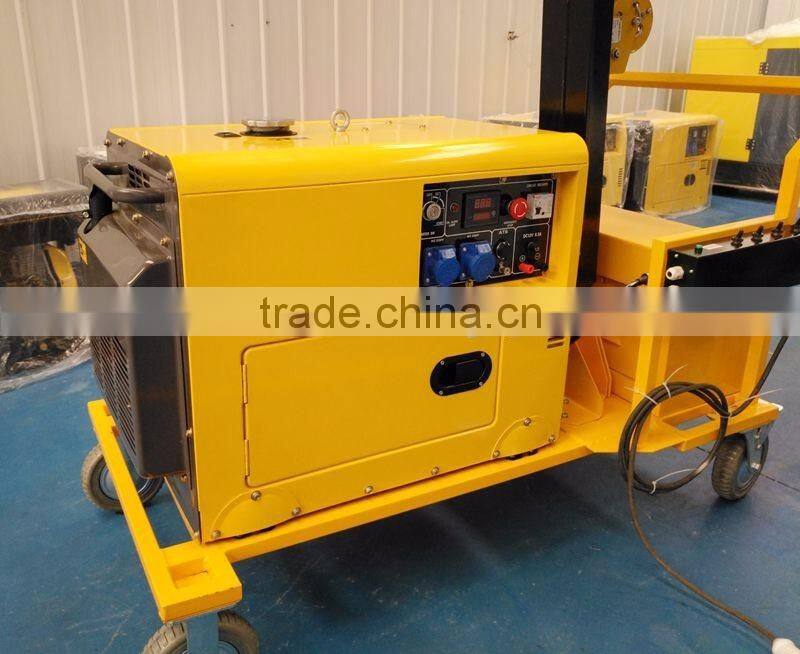

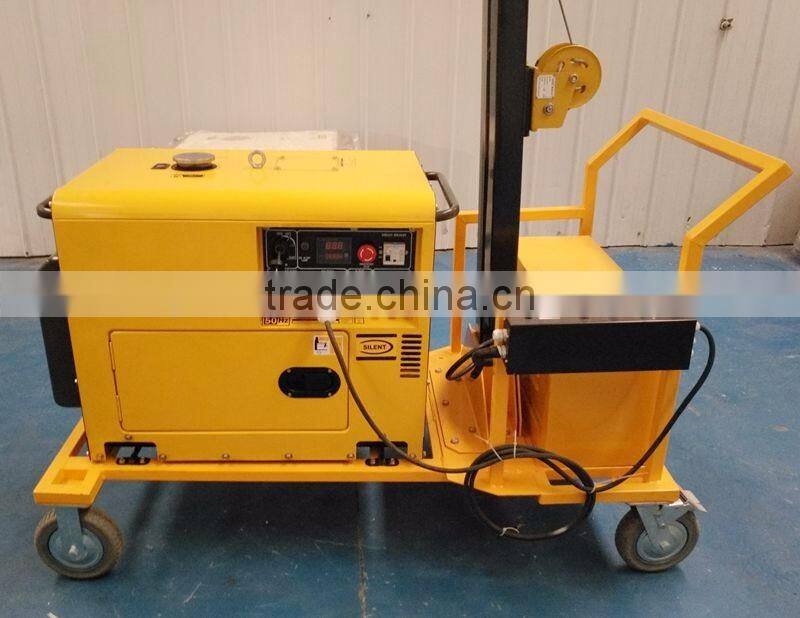

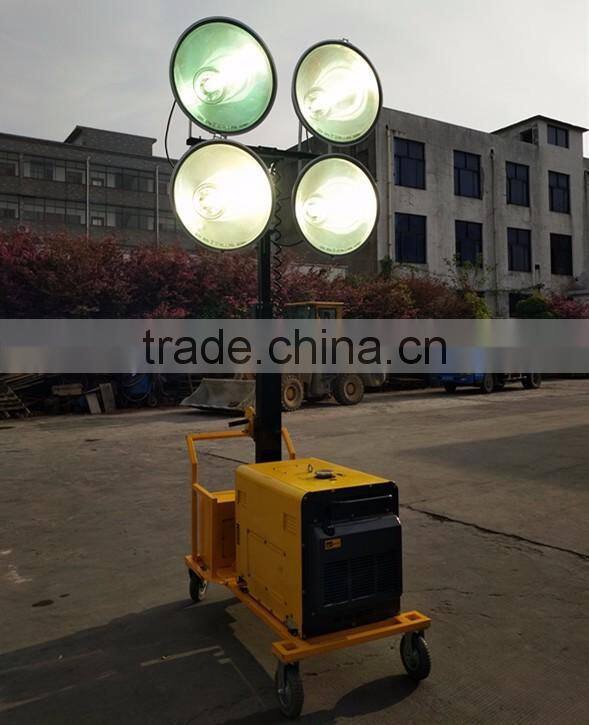

mobile light tower diesel generator pictures:
3. Approved Certification:
4.Packing and delivery
We usually finish the production within 15days after receiving your payment. But it also depends on your quantity or models. sea shipping for goods.
there are carton case and plywood packing for your selection, we suggest you choose plywood packing. if you have any special requirement, please tell us in advance, we will try to meet you.
5.Sales promises:
TOPTEK POWER provides a full line of brand new and high quality products, each and every units are strictly factory tested before shipment.
our products range as below, welcome to make an inquiry.
Payment Terms:
T/T or L/C, 30%T/T as deposit, the balance should be paid before shipment or against electronic B/L.
FAQ:
1)What’s the time deliver for mobile light tower diesel generator?
Re:
15~20working days after receiving payment
2)What's the life span of your product running 8 hrs a day 7 days a week?
Re:
within 500hours, it will be ok, then you need change the outside parts such as air filter(clean the foam element if dirty), muffler, piston and piston ring after 500hours. and you need also check all screws and fasten them once again.
(PS: we recommend you buy the good quality air filter, muffler. of course, the price will be higher.)
3)What's the service or insurance that your company offer to the product?
Re:
a. Guarantee for one year or 500hours (accord to whichever reach first) from ex-factory date.
b. All the failed units can be removed under the permission of manufacturer.
c. During the guarantee period, We will provide the free easy-damaged spare-parts for problems caused by our quality of production or raw material, except the damageable spare parts of diesel engine caused by customer's incorrect man-made operation. After expiration, our company provides cost spare-parts maintenance for gensets/engines.
4)What differentiate your product from the competition?
Re:
a) We are professinal engine manufacture, have our own factories and facilities, it's easier to control our cost and quality.
b) our factory is located in yangzhou, jiangsu province, it is a manufacture base of generators, with affluent raw material, low cost , and it is close to SHANGHAI port, with better transportation.
c) good quality alternator are famous in our area ( gaoyou alternator)
d) we have many years of export experience, Currently we export to Philippines, Singapore, Jordan, Indonesia, Sri Lanka, etc, with rich experience in OEM service.
e) many years of manufacture experience, mature installation technology, compact structure of products, perfect performance.
f) large quantity orders(8x40'HQ) in every months that guarantee the competitive prices on materials, and that means the cheap diesel generator.
g) we are ISO9001:2008 certificated factory, all products are CE approved.
h) we will wholeheartedly give you the best service anytime, that is the most important
5)What's the service for maintenance I need to do? And when?
Re:
in the first 50hours, you need change the engine oil and wash the oil filter, engine oil is a major factor affecting engine performance and service life. then you need also check the air cleaner element to be sure it is clean and in good condition. if the element is dirty, clean it, replace the element if it is damaged. also you need wash the fuel injection pump and fasten the nut. then every 100hours do the same until up to 500hous.
any more questions pls contact person: Arthur Zhang (phone:+86-18852593763)
wechat ID: 18852593763
