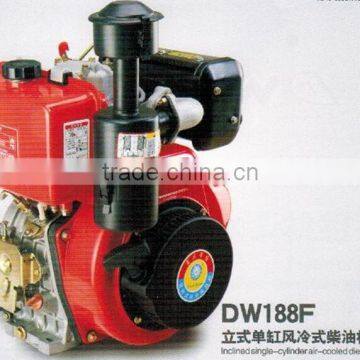

186F small engine efi kit
- 1000 Set / Sets per Month
- Chongqing Port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Usage | Other | |
| Fuel | Diesel | Stroke | 4 Stroke | |
| Cylinder | Single Cylinder | Cold Style | Other, Air-cooled | |
| Start | Electric Start | Place of Origin | Chongqing, China | |
| Brand Name | OEM | Model Number | DW188F | |
| Dimension(L*W*H) | 420*440*495mm | Weight | 48kg | |
| Certification | ISO9001 | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
| Engine type | Vertical or horizontal, Single cylinder,four stroke,OHV 25°,direction injection, forced air cooling | ||
| Clinder bore diameter x stroke | 88*75mm | ||
| Total piston displacement | 0.465 | ||
| Compression ratio | 8.0:1 | ||
| Rated power,hp/rpm | 9HP/3000 | ||
| Max.power,hp/rpm | 10HP/3600 | ||
| Max.torque,n.m/rpm | 21/2500 | ||
| Fuel consumption rate/rated rotational speed | 281.5/3600 | ||
| Min.stable speed,r/min | ≤1300 | ||
| Starting system | Recoil and hand operated or electric operated | ||
| Output shaft rotation direction | see the imput end as counter-clockwise | ||
| Output shaft type | Spline shaft/ flat key shaft/ threaded shaft/ taper shaft | ||
| Ignition system | CDI | ||
| Fuel grade designation | light diesel oil (0# forsummer 10#for winter ) | ||
| Fuel tank/oil capacity,L | 5.5/1.65 | ||
| Lubricating system | pressure and splash composite type | ||
| Lubricating oil model | SAEIOW3O( CC class or CD class) | ||
| N.W/kg | ≤48kg | ||
| Dimension,L*W*H mm | 420*440*495mm | ||
| 20FCL Loading quantity/sets | 220 | ||
Q1: What are products your company manufactured? Diesel/gasoline tiller Diesel/gasoline engine Diesel/gasoline generator Above products range from 3HP-10HP |
Q2: What is your MOQ? Generally we suggest 10sets, but we accept sample order if you want to test quality and performance first. |
Q3: What is the payment term? Prepayment after order confirmed, balance payment before shipment. You are welcome to pay by T/T, L/C, D/A,D/P, Western Union, etc. |
Q4: How about the delivery time? Within 10 workdays after receive the prepayment |
Q5: How about your warranty? 1year |
Q6: How about your after-sale service? 1-We have professional engineer team, they will be available for technical support. 2-After-service available for foreign market as customer required. |
