Home > Products > Pellet making line > Wood chipper Hammer Mill with cyclone SG40
Wood chipper Hammer Mill with cyclone SG40
- 50 Set / Sets per Month
- Qingdao China
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | Jinkun machinery | Model Number | SG40 | |
| Voltage | 220V/380V | Power(W) | 7.5 | |
| Dimension(L*W*H) | 1310*800*1070 | Weight | 0.27t | |
| Certification | CE,ISO | Warranty | 1 years | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Wood chipper Hammer Mill with cyclone3-4t/h
90-110kw
applied for dry or fresh seeding of yam, peanut,rice other plants,
Factory Picture of Wood chipper Hammer Mill with cyclone

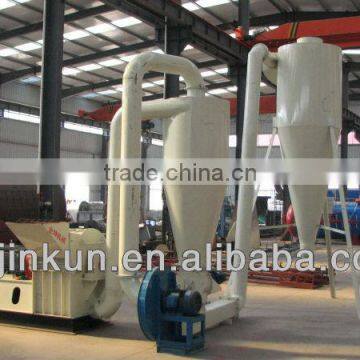

Picture of Wood chipper Hammer Mill with cyclone
Application of Wood chipper Hammer Mill with cyclone
1,Hammer mill are for grinding the Bio-mass like straw, stalk and wood chip, tree branch and forest waste to be powder of less than 3-5mm, which is right size before pelletizing and briquette.
2. It is also ideal machine for farming material like dry or fresh seeding of yam, peanut, rice and other plants, husks, maize, wheat, beans of all grain.
Spare parts of Wood chipper Hammer Mill with cyclone
Hammer mill Technical Parameter:
Model | Capacity (T/H) | Power (KW) | Weight(T) | Size(mm) | Hammer pieces |
JK40 | 0.2-0.5 | 7.5 | 0.27 | 1310*800*1070 | 12 |
JK50 | 0.6-0.8 | 15 | 0.45 | 1380*800*1010 | 16 |
JK65*27 | 0.8-1.5 | 22 | 1.1 | 1500*1000*1100 | 24 |
JK65*55 | 1-2 | 37-45 | 1.5 | 1700*1000*1100 | 48 |
JK65*75 | 2-3 | 55-75 | 1.9 | 2100*1000*1100 | 72 |
JK65*100 | 3-4 | 90-110 | 2.3 | 2400*1000*1100 | 90 |
JK130*55 | 5-6 | 130-160 | 5.3 | 2800*1620*2100 | 80 |
JK130*100 | 7-8 | 160-220 | 6.8 | 3020*1620*2170 | 160 |
Advantages of Wood chipper Hammer Mill with cyclone
It has simple construction, convenient operation, high efficiency and low power consumption.
Other details of Wood chipper Hammer Mill with cyclone
Hammer mills are matched machines of pellet mills. You can use hammer mills to crush the wood blocks or other raw materials into sawdust, then you can use sawdust to make pellets by pellet mills.
After-sale service
1.Guarantee period is one year, since the date of purchasing (with invoice), if there are failure issues due to manufacturing quality during this one year, factory will be responsible for the maintenance for free. (Die, rollers, bearing, spare parts are not included).
2.If failure or damage caused by the user’s improper operation, our factory will provide paid services.
3.Users need service, please contact our factory.
4. New drawing and technical parameters will change without notice to the user, please understand.
Finished picture of Wood chipper Hammer Mill with cyclone
Contact us
Contact Us
- Zouping Jinkun Machinery Production Co., Ltd.
- Contact namealice liui Chat Now
- Phone86-543-4837188
- AddressHUANGWANG VILLAGE,CHANGSHAN TOWN,ZOUPING,SHANDONG,CHINA, Binzhou, Shandong
