Fully Automatic Rotary Arm Pallet Wrapping Machine With Conveyor

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Beverage, Chemical, Commodity, Food, Medical, Other
Packaging Type	Cartons	Packaging Material	Metal
Automatic Grade	Automatic	Driven Type	Mechanical
Voltage	220V/380V/50HZ	Power	3KW
Place of Origin	Jiangsu, China	Brand Name	Jiajun
Model Number	SM-1600	Dimension(LWH)	5x8x3m
Weight	800KG	Certification	ISO9001
After-sales Service Provided	Engineers available to service machinery overseas

Welcome to your site, It's so luck to meet you

Advantage:

1.this automatic pallet wrapping machine have great advantage,whole the machine controled by PLC and photoeletric sensor,

so the pallet wrapping machine can work precisely

2.cut &grab film fully automatic after wrapping the pallet

3.Photoeletric sensor measuring pallet ,delivery pallet automatic

4.Independent electric control box ,more safety.

5.Touch screen ,show lot imformation on it ,such us :wraped pallets ,machine situation.

6.frenquency conveter control ,more steady,and good qulity

7.save film very much ,our pallet wrapping machine ,film carriage system can pre-stretch film 300%.

Automatic pallet wrapping machine specification:

Model			SM-1500
Max packing hight			2000mm
Max packing area			2000mmx1300mm
Max packing weight			2000kg
Turntable diameter			2000mm
Turntable speed			0-14/min
Wrapping speed			30-40 loads per hour
Power supply			380V/50Hz
control type			PLC (Brand:MITUSUBISH or SIMENS)
screen			Touch screen
frequency converter			SIMENS
Measuring pallet			photoelectric sensor (Brand: AUTONICS)
automatic type			Fully automatic
inpout power conveyor			2000mm
output power conveyor			2000mm
conveyor roller material			SS304
Table hight			550mm
roller diameter			76mm
colour of guard			yellow
Guard rail. size			10000x1000mm(LxH)
Turntable motor power			0.75KW (Brand: CPG)
Film frame motor power			0.4KW
consumables			LLDPE(thickness:20-30mic)
stretch film percent			250%
Film width			500mm
Film elevation speed			0-3m/min
safety device			Emergency brake button
electric control box			Independent electric control box
measuring hight			photoelectric sensor
Turntable startup mode			Frequency conversion slow start
machine size			6000x2650x2900mm
machine weight			1200KG

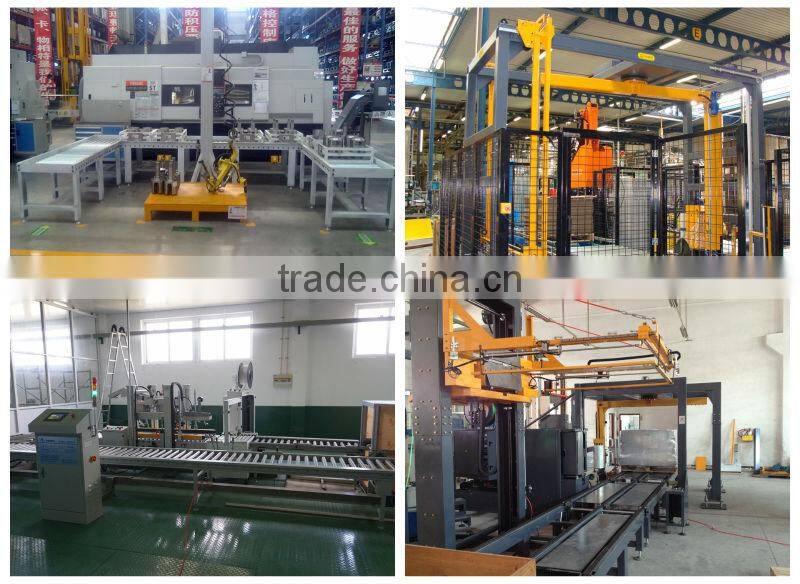

our customers:

our company:

Looking forward to your reply
