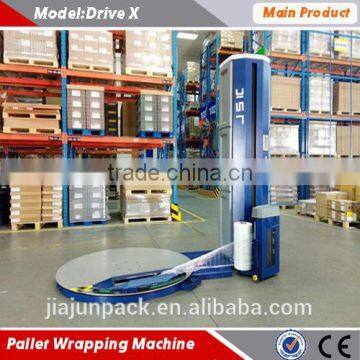

Good Price newest fully automatic pallet wrap machine with 300% pre-stretch SIEMENS control system CE

Product Application

1Pallet wrap machine use LLDPE stretch film as the main packing material to wrap the bulk cargos stacked on the pallet

2.Film provides extra support during transportation and storage to protect them from dust, moisture or damage

3.The pallet wrap machine  has been widely used in industries such as glassware, tools, electric & electronic, paper,
pottery, food & beverage, et.

Main Features

 1. High efficiency and low electricity-consumption, convenient in operation.
2. The wrapping type and times can be designed on customers’ requirements.
3. Photoelectric sensor test pallet height automatic
4. Auto reset of turn table
5. Pre-stretch ratio: 300%
6. Programmable control and frequency converter is available.
7.PLC control ,manual optional. Wrap cycle (top, bottom, reinforcement) adjustment.
Variable lift speed/ film tension control. Film up/down controls.
8.Pallet wraping machine soft start and soft stop.
9.Suitable for heavy pallet

10.Remote control sytem ,fully automatic

1.Variable wrapping force system

Automatic adjust wrapping force according to pallet shape
1.let every part of the pallets be wrapped tightly
tect the corner of the loads ,avoid the corner concave.

300% Pre-stretch rate , save 30% film compared to traditional pallet wrapping machine .

2.Remote control system

DriveX pallet wrapping machine ，worker just need put the pallet on the turntable and press remote control button,machine will wrap pallet automatically,during this time ,the worker no need get off the forklift truck and operate machine by hand .

3.Automatic Cut and Clamp Film

Drive X automatic cut and clamp film system， let worker no need use they hand to cut film and put film on pallet any more ,cut &clamp fim system will do it automatically .

4.Pallet Grip system

Pallet grip system : film bottom narrowed to become film rope , film rope grip to pallet & products during wrapping.

1.during transport ,no need worry the products fall down when the pallets get violent vibration
2.if the truckfork damage the film on the bottom of pallet ,the film do not breach .
3.pallet bottom grip and whole journey grip can be instead of the horizontal strapping machine

5.Intelligent LED lIght Alarm system

during working ,if the film break or film exhaust，drive X pallet wrapping machine will stop work ,and the warning light remind the worker .and the Light use LED ,can be use 100000 hours

6.Intelligent Touch screen

JSK pallet stretch wrapping machine use the best touch screen"SIEMEN ",the reaction of the touch screen and function all is perfect

the touch screen can set the "turntable speed .up& down speed and film carriagre speed directly" and we also prepare for our customer 6 wrapping model for they pallet ,most of customer they have diffierent pallet to wrap ,so the different pallets need different wrapping speed ,wrapping force ,the customer just need set the 6 model one time ,then just choose the right model for they pallet , no need adjsut the parameter every time any more.

We use Good brand spare part .

if you want to buy a good and durable machine,the eletric part will be very very important ,if one eletric use a bad brand ,it;s a big risk for the customer ,becuase one part not work whole machine stop working,and the eletric part problem ,sometime difficult to fix  ,because you do not know which part broken from the serval parts ,so our pallet stretch wrapping machine all part we use the famous brand ,we do not want machine have any problem from the eletric parts .so that we can make our our machine be used for lone time without problem.

Machine Safety .

The safety is very very important for the machine and every company and every worker ,so we consider all the parts which have the risk of safety problem ,and find slution to let machine  be very safety ,we care the workers' foot and head ,we care the eletric shock ,also we consider if the machine use long long time ,the machine broken ,how can let the machine still safety .

This is we must do ,because this is what you care !

How we manufature the machine ,why you can trust us .

a good machine must need a good beginning  ,this beginning means good design,if the design have problem ,no matter how good the spare part you use ,all is in vain ,so JSK pallet stretch wrapping machine have 18 engineers just study and design JSK pallet wrapping machine ,after Desgin ,we test the sample ,after everything is fine ,we begin to manufacture the machine ,we use good laser cutting machine and good bend machine to bend and cut the steel ,we use robot to weld the machine ,after welding our worker will check all the parts ,and then printing the machine ,the install worker must according to our SOP to install the machine ,make sure no missing parts ,after intallation we test each machine ,everything is fine ,wer pack the machine and ship out ,about the packing the machine ,we use steel+wooden box ,pallet wrapping machine easy damage during transport ,so we use the steel box and surface covered with wooden board ,it will be safety for the machine,when customer get the machine ,everything is fine .

1.What's mean "JSK"

1.what;s mast height of machine?

Dirve x pallet wrapping machine mast height is 2400mm ,and the max packing height  is 2200mm ,if you pallet over 2200mm,you need choose mast height 3200mm,the max packing height 3000mm

-----------------------------------------------------------

2.How to choose control system?

Dirve X have theree control system can be choose .

standard control system is :JSK system

SIEMENS controlo system and OMRON system can optional

-----------------------------------------------------------

3.what;s turntable size ?

the standard turntable size is 1650mm .

1800mm and 2000mm turtable optional

-----------------------------------------------------------

4.what;s temperature can be use ?

standard machine need > 0 degree

if <0 degree ,need tell us ,we need use a special motor for machine

-------------------------------------------------------

5.what;s the thickness of turntable steel and use what cut the steel?

turntable steel 10mm ,and use water cutting teachnology,do not use laser cutting.

--------------------------------------------------------

6.what;s max weight can be use?

our standard machine max load weight 2000KG ,above 2000KG we need change to steel roller under the turntable ,standard  machine use plastic roller .

-----------------------------------------------------------
