CE Qualified Hydraulic Waste Aluminum Sheet Cutting Machine
- shanghai for Hydraulic Waste Aluminum Sheet Cutting Machine
You May Like
-
High Capacity Heavy Duty Hydraulic Scrap Metal Recycling Cutting Equipment
-
6300KN Automatic Hydraulic Scrap Car Baler Shear
-
CE Qualified Hydraulic Scrap Car Baler Shear
-
Supply Of Automatic Hydraulic Scrap Metal Baler Shear
-
High Capacity Heavy Duty Hydraulic Scrap Metal Recycling Cutting Machine
-
Heavy Duty Customized Hydraulic Scrap Metal Baling Cutting Machine
Product Details
| Place of Origin | Jiangsu, China | Brand Name | gaode | |
| Model Number | Q91Y | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

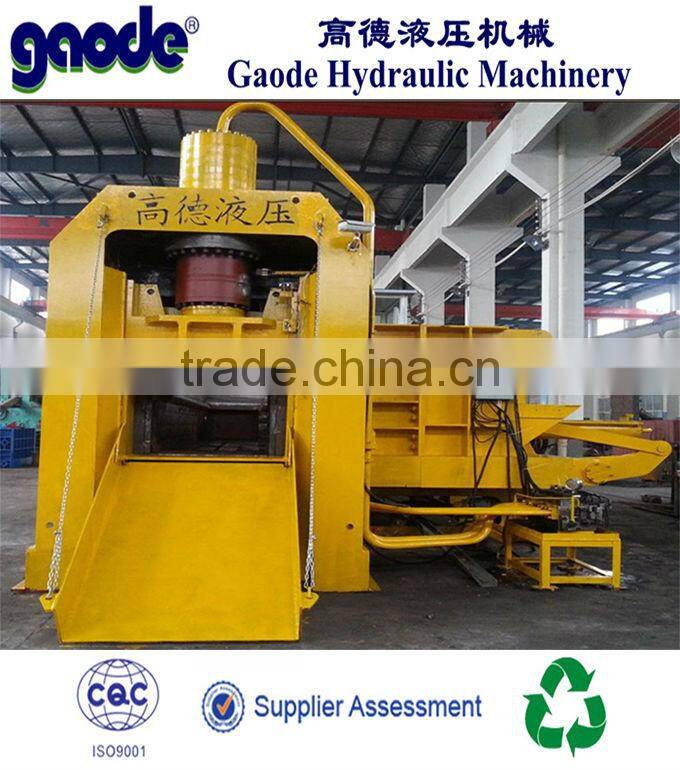

CE Qualified Hydraulic Waste Aluminum Sheet Cutting Machine

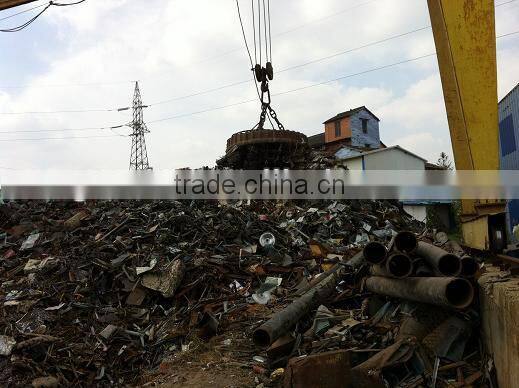

Scrap Metal Chip
Cutting machine Q91Y is suitable for ferrous & non-ferrous metal smelting industry
to shear into acceptable pieces
Q91Y4000 Technical Specifications:
1 | Press Box Size(L*W*H)
| 5000*2000*1300mm | ||||
2 | Bale Size(L*W*H)
| 750*550mm |
| |||
3 | Hydraulic System Pressure | 25 MPa |
| |||
4 | Total Motor | 90 KW |
| |||
5 | Power | 380V/3PH,50Hz |
| |||
6 | Blade Length | 900mm |
| |||
7 | Pressing Length | 630mm |
| |||
8 | Shear Angular | 10 |
| |||
9 | Shearing Frequency (times/min) | 3 time/min |
| |||
10 | Capacity(Ton/Hour) | 4-12 |
| |||
11 | Max Cutting Force (material Tensile Strength no more than 440MPa) | Round TeelΦ115mm |
| |||
Billet 105*105mm | ||||||
Steel Plate 60*600mm | ||||||
12 | Motor | Model | YZ-225M-4 | Nominal Power | 45KW |
|
Nominal Speed | 1460rmp | Quantity | 2 pieces |
| ||
13 | Hydraulic Pump | Model | A7V | Nominal Pressure | 31.5MPa |
|
Nominal Outflow | 160ml/r | Quantity | 2 Pieces |
| ||


GAODE Hydraulic Machinery has been a trusted name in the waste recycling equipment industry for over a decade as a dedicated Chinese manufacturer of scrap metal recycling equipment, our flagship products includethe shear baler, scrap baler, scrap shear, and recycling crane.
In addition to scrap metal processing equipment, we also supply horizontal baler and vertical baler for compacting plastic, paper, cardboard, straw, textile and more types of wastes.Our company was first inaugurated in 2003.
Our GAODE brand has received critical acclaim both domestically and overseas. As a trusted waste recycling equipment manufacturer, we have successfully passed the certification of both the TUV and the ISO9001 Quality Management System. We are currently in the process of obtaining the approval of European standards such as CE and UL.
Finished Products
Our Exhibition
Our Certification
Welcome To Our Factory

6months guarantee for whole machine
24hours technical support by email
Calling or door to door service
User manual and detailed video
Ms. Apple Zhang
Sales representative
Jiangsu Gaode Hydraulic Machinery Co.,Ltd---China factory
Add: No. 691 Chengshan Road, Jiangyin City, Jiangsu Province.
Mobil/What's App : +86-15906169741 (24/7)
Tel: 86-510-86996082
Fax: 86-510-86993993
Skype: zhangguoping520
QQ: 445228997
Q1:Can I add my logo on the machines?
A: Yes,OEM and ODM are available for us.
But you should send us the Trademark authorization letter.
Q2:How can i get the after-service?
A: We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
Q3:Do you have inspection procedures for machines?
A:100% self-inspection before packing
Q4:Can I have a visit to your factory before the order?
A:Sure,welcome to visit our factory.
Here is our factory address:No.691, Chengshan Road, Jiangyin City, Jiangsu Province, China.
Q5: Can we order one set machine?
A:Yes, you can.
