Good performance recycling scrap shear balers for export

FOB Price

USD $123,000 - $125,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China
Brand Name	gaode	Model Number	HBS-4000
Voltage	Based on customer	Rated Power	110 KW
Dimension(LWH)	None	Weight	None
Certification	CQC;CE, ISO9001: 2008	Warranty	6 Months, 180Days
After-sales Service Provided	Engineers available to service machinery overseas

Good performance recycling scrap shear balers for export

Detailed Specifications Of New Durable Hydraulic Baler Shear For Scrap Metal Recycling (HBS):

No.	Technical Specification					Remark
1	Press Box Size(LWH)			50001600900mm
2	Bale Size(LWH)			700*500mm
3	Hydraulic System Pressure			25 MPa
4	Total Motor			110KW
5	Power			380V/3PH,50Hz
6	Blade Length			800mm
7	Shearing Frequency (times/min)			3-5 time/min
8	Capacity(Ton/Hour)			4-12
9	Max Cutting Force (material Tensile Strength no more than 440MPa)			Round TeelΦ120mm
				Billet 110*110mm
				Steel Plate 50*600mm
10	Motor	Model	Y200L₂-6	Nominal Power	55KW
		Nominal Speed	970rmp	Quantity	2 pieces
11	Hydraulic Pump	Model	250YCY14-1B	Nominal Pressure	31.5MPa
		Nominal Outflow	250ml/r	Quantity	2 Pieces
12	Equipment Outline Dimension			1130028003500(Flank Expansion)		LWH
				1130022003500mm(Flank Collapsed)		LWH
13	Floor Space			14000*4000mm		L*W
14	Control System			PLC Automatic Control
15	Cooling System			Oil - steam heat exchanger

Exhibition

Certificates

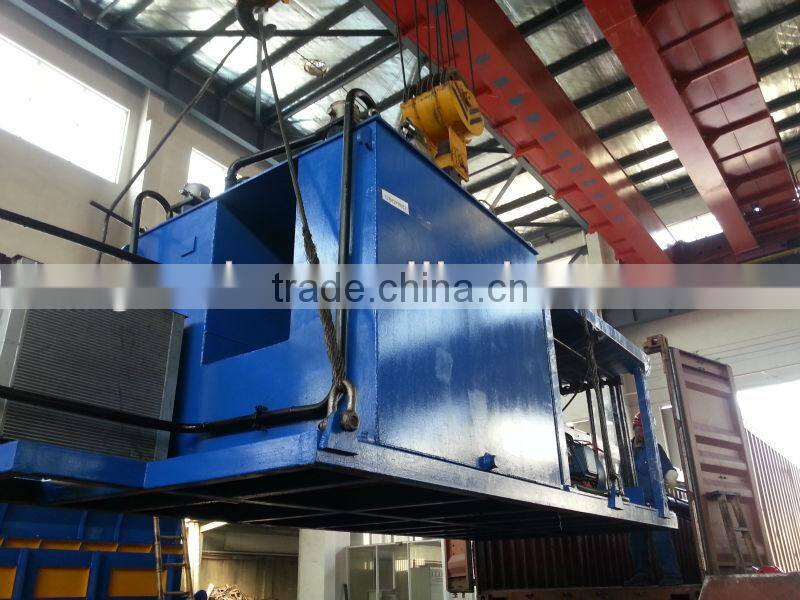

Loading of our products:

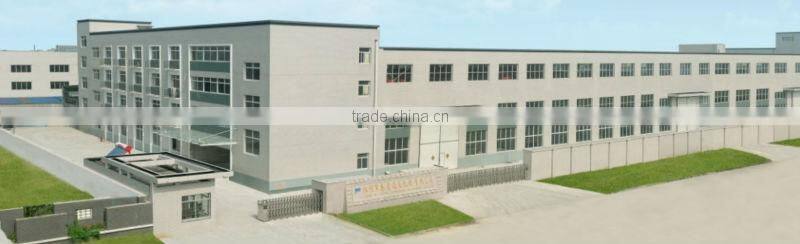

Welcome to our factory

Guarantee and after-sale service

6months guarantee for whole machine

24hours technical support by email

Calling or door to door service

User manual and detailed video
