Home > Products > Plastic mixer > PVC Compounding Plant

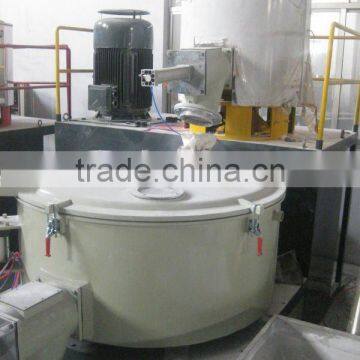

PVC Compounding Plant
- Shanghai
- T/T
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Sevenstars | |
| Model Number | SRL-Z500/1000 |
Product Description
Specifications
PVC Compounding Plant1.Used for drying ,colour .and mixing. PVC powder .
2.Heating mixer
3.High speed.
PVC Compounding Plant
1 | Model | / | SRL-Z500/1000 mixer group | ||
Hot mixer | |||||
1 | total volume of hot mixer | L | 500 | ||
2 | effective volume of hot mixer | L | 375 | ||
3 | material weight/batch | kg/batch | ≤160 |
| |
4 | Output | kg/h | ≤800 | ||
5 | motor power | KW | 55/75, double speed motor | ||
6 | Thickness of wall of barrel (stainless steel 304 ) | mm | 8 | ||
7 | Thickness of bottom of barrel (stainless steel 304 ) | mm | 10 | ||
8 | hot mixer rotating speed | r/min | 430-860 | ||
9 | Quantity of stirring blade | pcs | 3(1Cr18Ni9Ti) | ||
10 | mixing time | min/batch | 8-10 | ||
11 | Heating method | Electric heating and self-mixing heating | |||
cooling mixer | |||
1 | cooling mixer volume | L | 1000 |
2 | effective volume of cooling mixer | L | 640 |
3 | motor power | KW | 18.5 |
4 | material of cooling mixer blade | / | ZG1Cr18Ni9Ti |
5 | stirring blade rotating speed | r/m | 60 |
6 | Thickness of wall of barrel (stainless steel 304 ) | mm | 8 |
7 | Thickness of bottom of barrel (stainless steel 304 ) | mm | 10 |
8 | lift control method | / | pneumatic |
9 | Cooling method | / | water cooling |
10 | cooling time | min/batch | 10-15 |
11 | Total weigth of the overall machine | kg | 5800 |
