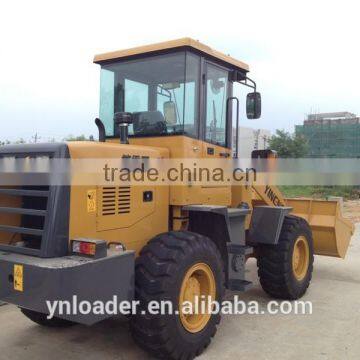

YN926 Front wheel loader(capacity 1.1m3)

Bucket capacity 1.1m3;Rated load 2000kg; Dumping height 2750mm; 60KW; YTO Engine

1-      FEATURES:

* YTO diesel engine is adopted, with strong power.

* Applying hydrodynamic transmission technology, single stage, 3 elements torque converter owns simple structure and high reliability.

* Controlled by flexible shaft, hydraulic power shift gearbox with 2 forward and 2 reverse gears makes operation easy.

* Single pump, split flow working hydraulic system makes lower consumption and excellent performance.

* Double sealed hydraulic pipeline joints with 24°awl and O ring of international standard, avoiding oil leakage;

* Load sensing fully hydraulic steering system makes operation easy.

* Air over hydraulic brake system; Caliper disc brakes.

* Working device with automatically levelling ability at high position.

*Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability.

* Integral, luxury instrument board.

* New, luxury cabin.

OPTIONAL:

Original Cummins engine.

(Model: B3.3TAA-C80, Euro III emission)

Cummins engine

(Model 4BTA3.9-C100, from Dongfeng Cummins Co.)

Lovol Engine, with Perkins Technolgy

(Model:1004-4L06, From Tianjin Lovol Engine Co.)

Electric controlled gear-shift.

Air Condition

Joystick

Quick Hitch (Fork)

ROPS Cabin

*CE Approved.

*Obtained the certificate of ISO9001:2000;

*Manufacturing license number: TS2510025-2009.

2- SPECIFICATIONS:
