MINI LOADER
- 50 Unit / Units per Month
- QINGDAO
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Condition | New | Brand Name | YINENG | |
| Model Number | YN715 | Place of Origin | Shandong, China | |
| Type | Mini Loader | Moving Type | Wheel Loader | |
| Rated Load | 1500KG | Certification | CE,ISO9001:2008, TS2510025-2009 | |
| Warranty | ONE YEAR | After-sales Service Provided | Overseas third-party support available |
Product Description

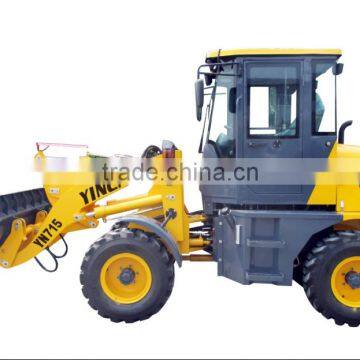

Specifications of YN715 Mini Loader
1.Euro iii Xinchai engine, powerful energy, reliable performance;
2.New special design for European market, such as steps as per CE NORMS;
3. Hydraulic transmission, fine workmanship, cheap price but high quality;
4. Integral operation platform, streamline design and humanized operation layout;
5. 35°big turning angle, more flexible than common ones;
6. Wide cabin, large-vision, standard heating and ventilation equipment ;
Parameters
Performance | Rated load | 1500kg |
Overall weight | 3550kg | |
Bucket capacity | 0.6m3 | |
Maximum breakout force | 31kN | |
Maximum grade ability | 22° | |
Maximum dump height | 2622mm | |
Maximum dump reach | 900mm | |
Overall dimention(L×W×H) | 5050*1720*2600 | |
Minimum turning radius(outside of bucket) | 5150mm | |
Transmission system | Transmission | Hydraulic torque converter |
Pump | / | |
Motor | / | |
Speed type | Variable speed control, two speeds | |
Inching | Nope | |
Drive axles | Main reducing spiral | Circular Arc Bevel Gear |
Decelerating mode | / | |
Wheel base | 2125mm | |
Wheel tread | 1400mm | |
Minimum ground clearance | 330mm | |
Engine | Model | Xinchai498 |
Type | Vertical, In-line, Water Cooled, 4-Stroke Diesel Engine | |
No. of cylinder-bore/stroke | 4-90×105 | |
Rated power | 37kW | |
Rated speed | 2400r/min | |
Hydraulic system | System working pressure | 16.5MPa |
Boom lifting time | 5.7s(Full Loaded) | |
Total time | 10.2s(Full Loaded) | |
Control valve | 3-spoon type, hydraulic pilot control | |
Fuel tank capacity | 80L | |
Brake system | Service brake | Vacuum boost drum brakes on 4 wheels |
Parking brake | Manual parking brake | |
Tyre | Type specification | 14-17.5 |
