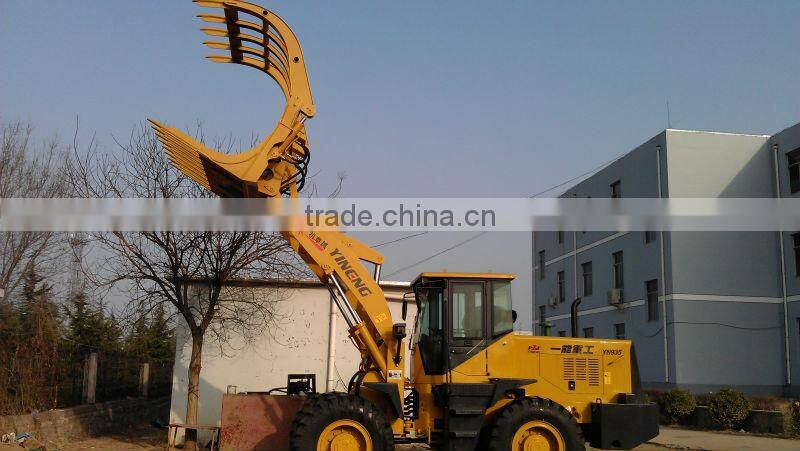

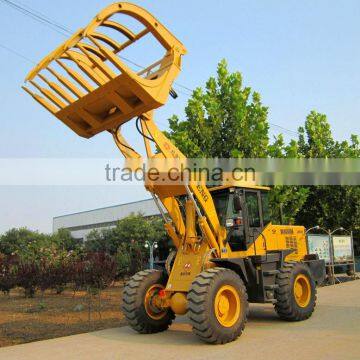

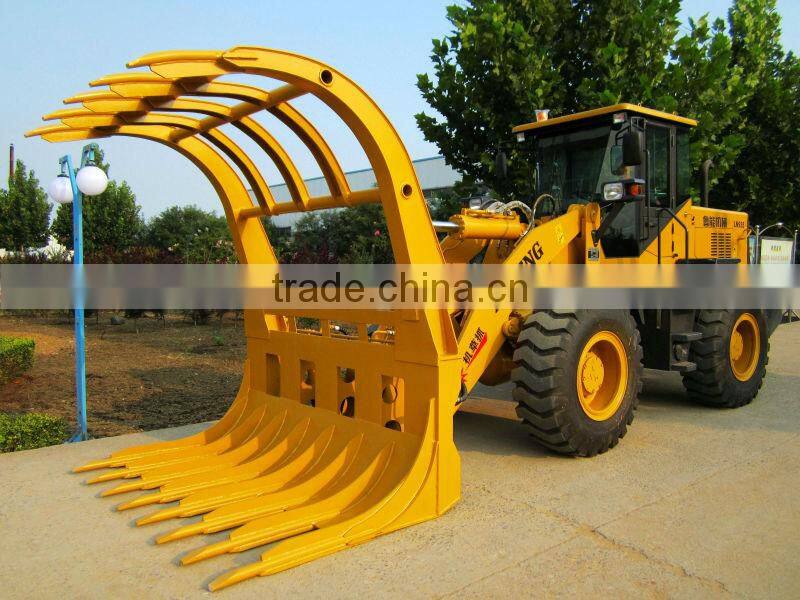

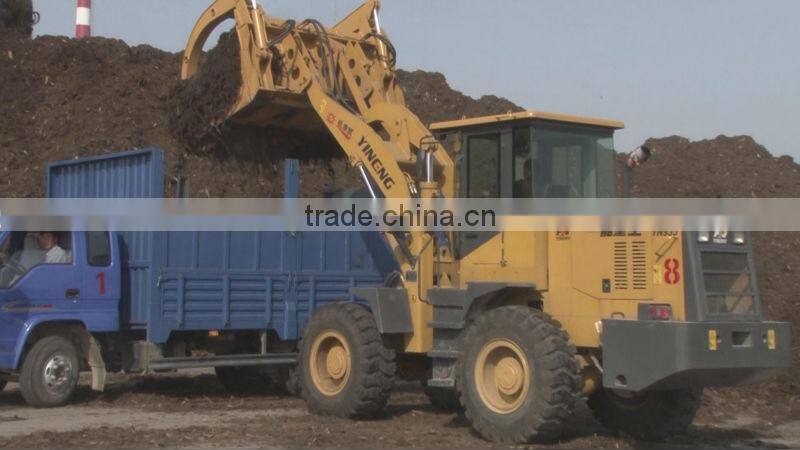

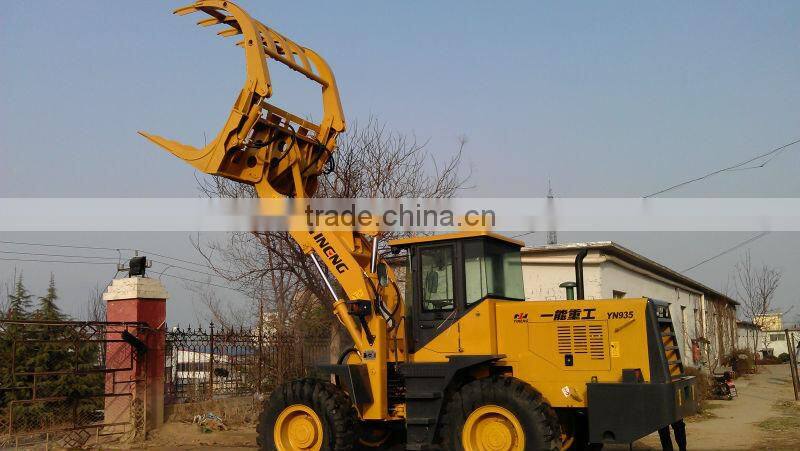

Grass Grasper Loader (1500kg+Deutz Engine+BS428 Transmission)

FOB Price

Negotiable / Unit

1 Unit(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Brand Name	YINENG
Model Number	YN935	Place of Origin	Shandong, China
Type	Front Loader	Moving Type	Wheel Loader
Dimension(Long * Breadth * High)	7470x2310x3000	Rated Load	1500kg/1.5T

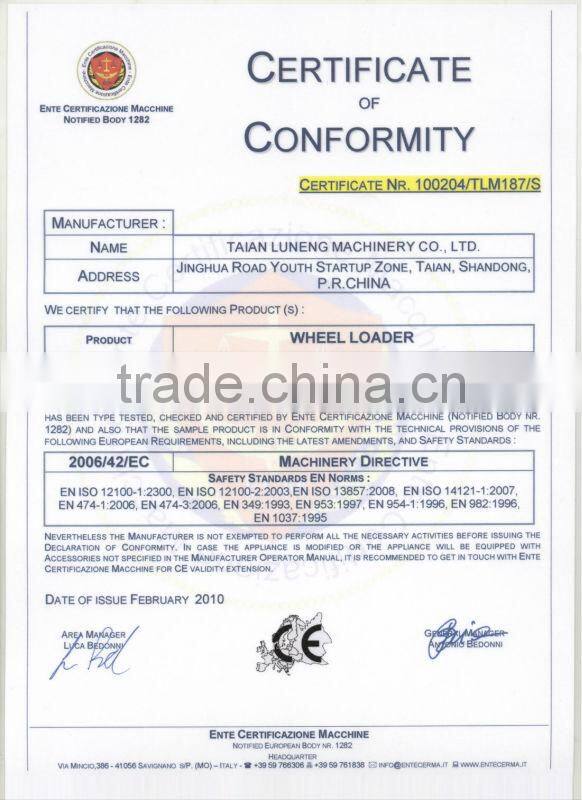

Certification	ISO9001:2008/CE	Warranty	12 months
After-sales Service Provided	Overseas third-party support available

Deutz engine+BS428 transmission+High hardness and intensity steel+chinese well-known hydraulic system.Air over hydraulic disks.

Item	Performance
Max opening dimension	2830mm
Min diameter of holding circle	1450mm
Gripping tool width	2400mm
Holding volume	5 m³
Rated load capacity(kg)	1500kg
Operating weight	10300kg
Max.dump height	2800mm
Max.dump reach	1558mm
Min.ground clearance	410mm
Wheel base	2600mm
Tread	1870mm
Static tilting load at full steering position	58.8KN
Max breakout force	120KN
Max pulling force	90KN
Max grade ability	30°
Lifting time	5.5s
Total cycle time(lifting, dumping, lowering	9.67s(full load)
Overall dimensions (l×w×h)mm	7470×2310×3000
Fuel tank capacity	125L

ENGINE

Item	Performance
Engine	Deutz
Model	WP6G125E23
Type	In line, water cooled, four stroke, dir.inject
Rated speed	2200r/min
Rated power	92kw
Min fuel consumption	235g/kw.h
Cylinder No.	6
Cylinder bore	108 mm
Max torque	463 N.m

WORKING SYSTEM

WORKING SYSTEM

Item	Performance
Hydraulic working system
Pump	GBGV2100
Multiple directional control valve type	DF25.2C

STEERING SYSTEM

STEERING SYSTEM

Item
Type	Full-hydraulic articulated steering
steering angle(each direction)	35°±1
Min turning radius	5160mm

TRANSMISSION SYSTEM

TRANSMISSION

Item			Performance
Torque convertor	Type		Three-element, single stage
	Model		YJ315x
	Torque ratio		3.23
	Cooling system		Circulated, water cooled
	Inlet oil pressure		500-600
Transmission box	Type		Full power shift, countershaft type
	Shift		Forward 4 Reverse 2
	Highest speed		36km/h
	Transmission ratio	Forward I	3.82
		Forward I	2.08
		Forward III	1.09
		Forward IV	0.59
		Reverse I	3.05
		Reverse II	0.87
	Model of Transmission pump		CBE532B
	Working pressure		1.2-1.5Mpa
Main Drive	Type		Spiral bevel gear, single stage
Final reducer	Type		Single stage, planetary shift
Driving axle and tyre	Type		Driving axle and tyre
	Tyre specification		17.5 x 25
	Tyre pressure	Front Wheel	343kpa
		Rear Wheel	294kpa
Brake system	Service brake		Air over hydraulic disc brake on 4 wheels
	Parking brake		Soft axis, cable control
