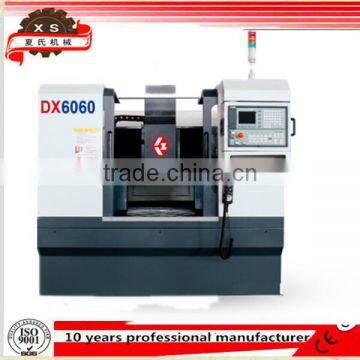

Vertical CNC Engraving and Milling Machine With High Precision DX6060

FOB Price

USD $100 - $1,000 / Set

1 Set(Min.Order)

Supply Ability 30 Set / Sets per Month
Port ShenZhen
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Guangxi, China
Brand Name	XIASHI	Model Number	DX6060
Type	Horizontal	CNC or Not	CNC
Voltage	220/380V-50/60Hz	Power(W)	4-5.5kw
Dimension(LWH)	2400x2200x2300mm	Weight	3000kg
Certification	CE ISO9001	Warranty	1 Year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Engraving machine center for sale

8000 RPM, Auto Tool Change
Auto Measurement and offset
64 MB program capacity

engraving machine center for sale

Features:

1.L.M. guide-ways for all axes
2.Pre-Loaded ball screws for all axes
3.Centralized lubrication system
4.AC Servo Drive for all axes
5.Water cooled spindle
6.Electric hand control wheel
7.Air blast for spindle taper cleaning
8.Fully covered machine
9.Telescopic covers for all 3 axes
10.Auto & Manual coolant system

Optional:

1.Plug-in 4th and 5th axis
2.Chip Conveyor
3.Flood Coolant System
4.Voltage Stabilizer
5.Machine Lamp

engraving machine center -Specification

Model	5050	6060/6080	8080/80100	80120
Working Table size (mm)	500×500	600×600-600×800	800×800-800×1000	800×1200
Stroke(X/Y/Z)(mm)	500×500×240	600×600×300-600×800×300	800×800×300-800×1000×300	800×1200×300
Max.feeding speed	8000	8000	8000	10000
Max.cutting speed	6000	6000	6000	8000
Accuracy of couple knives	0.002(Automatic)
Positioning Accuracy (mm)	0.01/300	0.01/300	0.01/300	0.01/300
Duplicate positioning Accuracy (mm)	0.005	0.005	0.005	0.005
X/Y verticality	0.015/300	0.015/300	0.015/300	0.015/300
Diatance between working table and Main spindle(mm)	60-300	150-450	20-420	80-380
type groove size(mm)	5-12×100	5-14×150	5-14×150	5-14×250
Gantry height(mm)	400	500	520	560
Gantry across height(mm)	300	450	420	380
Gantry width(mm)	600	700	900	900
Max. load on table(kg)	200	300/400	500	600
Spindle speed(r/min)	600-2400	600-18000	600-18000/15000	600/15000
Main motor power(kw)	3.2	4/5.5	5.5/7.5	7.5
Weight(kg)	2500	3000	3700	4200
clamping chuck	ER20	ER25/32	ER32/40/BT30	ER32/40/BT30
System grade servo	LNC/ Syntec/ Fagor-Yaskawa /Panasonic
Battery request(kva)	10	13	15	16
Dimension(mm)	2000×1800×2100	2400×2200×2300	2800×2500×2500	3000×2600×2500

Packaging & Shipping

We will pack the machine with standard export wooden case ,ensure the transport safety

FAQ

1)Q: Which trade term I can choose?
A: You can choose FOB,CIF, DDU or other terms. You can book ship or I can book ship for you.

2)Q: How can I get quotation from you?
A: You can make the inquiry online on Alibaba, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 2 hours on work days, and within 24 hours on holiday.

3)Q: How can I choose right machine and how to assure quality?
A: You can choose machine on our website accodring to your request. Or You can let our seller know what is your request specifcation or what is your parts, so let our seller recommend suitable machine to you. We have do trade machine years, and export machine to over 100 countries. We have CE, ISO, SGS and other quality certificate.

4)Q: how can I make the payment?
A: We can make the deal on Alibaba online platform, you can pay by T/T or Credit card. You can also pay to my company business bank account. You can also choose L/C or other way.

5)Q: How long does it take to get machine?
A: If the machine you will order is standard machine, we can ready the machine within 15days. If special machine, please confirm with our seller. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.

6)Q: how about warranty?
A: warranty is one year, but we will offer lifetime service for machine.
