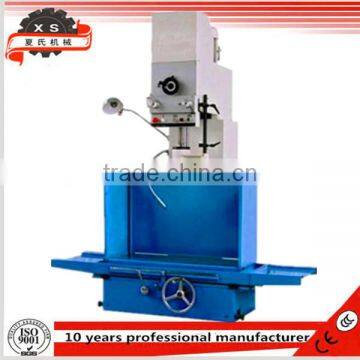

Advanccd-design 2M2217A vertical honing machine

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 30 Set / Sets per Month
Port shenzhen
Payment TermsT/T L/C D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Brand Name	XiaShi
Model Number	2M2217A	CNC or Not	Normal
Weight	2000kg	Dimension(LWH)	1900x1176x2169mm
Warranty	1years	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Application

The Machine is mainly used for horing holes of cylinder body and sleeve for engines and other accurate holes.

Feature

The Machine is mainly used for horing holes of cylinder body and sleeve for engines and other accurate holes.

Advanccd-design and steady function.

Stepless of spindle turning feeding.

The rotation of the main shaft adopts gear transmission, feeding by Continuously Variable;

Technical parameters

Honing diameter range		φ40-φ170mm
max.honing depth		320mm
Telescopic length of spindle connecting rod		120mm
Spindle speeds(four steps)		130,180,240,365rev/mm
Spindle alternating motion speed(stepness)		3-18m /min
Max.spindle travel		300mm
Distance from spindle axis to column vertical plane		300mm
Dimensions of the surface		400x 1000mm
Table longitudinal travel		800mm
Machining accuracy	Dimension accuracy	0.003mm
	Roundness	0.005mm
	roughness	Ra0.4
Overall Dimensions(LxWxH)		1900x1176x2169mm3
N.W./G.W.		2000kg / 2500kg
Paking Dimensions ( LxWxH )		1440x1770x2170mm3

Standard accessory

MT 62 honing head

(honing Φ62-Φ82 hole)

tool case

1	MT110 honing head(honing Φ110-Φ170 hole) (Need special order)
2	MT82 honing head(honing Φ82-Φ110hole)
3	MT40 honing head(honing Φ40-Φ62 hole)

Picture details

If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
