ZBQ50 mine grouting pump
- 500 Set / Sets per Month
- QINGDAO
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Model Number | ZBQ | |
| Usage | Air Pump | Power | Pneumatic | |
| Standard or Nonstandard | Standard | Fuel | Gasoline | |
| Pressure | High Pressure |
Product Description
Specifications
Specifications1.Small volume, light weight
2.Moving more frequently grouting
Specifications
1.Small volume, light weight
2.Moving more frequently grouting

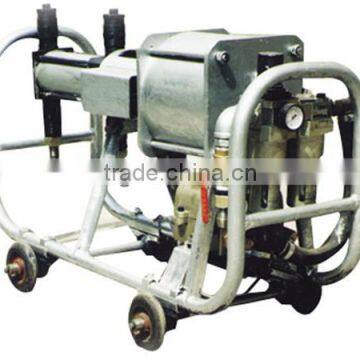

ZBQ50 pneumatic grouting pump
(1)Small volume, light weight, mobile handling, moving frequently multipoint grouting.
(2)Due to adopt pneumatic transmission pump performance is very suitable for grouting pressure low need big flow, and grouting pressure to the operation condition of the small flow.
(3)Because of using pneumatic transmission in inflammable, high explosive, such as large water spray, dust work environment can also be used.
(4)Under the condition of slurry ratio is not very strict available time, which can realize double fluid grouting pump, construction equipment purchase cost is greatly reduced.
Technical parameters
Type |
| ZBQ50/6 |
parameter name | unit | The basic parameters |
Rated flow | L/min | 30 ,50, 100 |
The rated working pressure | Mpa | 10,6,3 |
Plasma cylinder Canon | mm | 60,75,100 |
The length of the stroke | mm | 120 |
Reciprocating frequency | min-1 | 2-55 |
Gas supply pressure | mpa | 0.6 ~ 0.7 |
Adjust the pressure | mpa | 0.05 ~ 0.6 |
Cylinder straight through | mm | 250 |
Ventilation straight through |
| G1 |
Compressed air consumption | m3/min | ≤0.7 |
Weight | KG | 60 |
Overall dimensions (L×W×H) | mm | 1000×504×645 |
