Submersible Water Pump FWQB

FOB Price

US$ 400 - 800 / Piece

1 Piece(Min. Order)

Port Qingdao
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	BAFANG
Model Number	FWQB70/30	Theory	Other, turbone power
Usage	Water	Power	Pneumatic
Standard or Nonstandard	Standard	Fuel	Diesel
Pressure	Other, 0.4-0.7 MPa	Application	Submersible

Product Description

Specifications

1. work in dangerous underground or coal mine
2.low noise
3.light but efficient
temperature C: 5-40

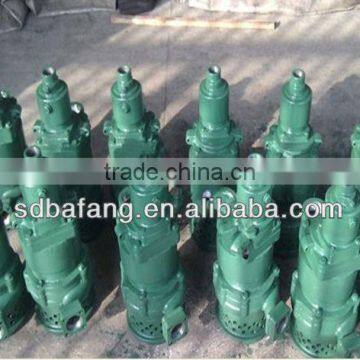

Pneumatic turbine-power submersible pump

1. Have gas and coal dust in the air

2. Working pressure is 0.4-0.7MPA

3. The PH of liquid is 4-10

4. Density of water is not more than 1.1 * 1000 kg/m3

5. Working environment temperature (5 ~ 40)°C

High quality Pneumatic turbine-power submersible pump FWQB 70/30 is mainly used in mining development, digging wells' tunnels and vertical shaft constructionfor draining or moving matters.

Type	Rated flow (m³/h)	Rated Head (m)	Air consumption (m³/min)	Work pressure (MPa)	Size (mm) *(LWH)*	Weight (kg)
FQW20-25/W	25	20	4.5-5	0.5	347×274×462	30
FQW70-30/W	30	70	4.5-5	0.5	347×274×462	32
FQW20-40/W	40	20	4.5-5	0.5	347×274×495	34
FQW40-20/W	20	40	4.5-5	0.5	347×274×462	31
FQW25-50/W	50	25	4.5-5	0.5	347×274×495	35
FQW30-18/W	18	30	4.5-5	0.5	347×274×495	35
FQW50-25/W	25	50	4.5-5	0.5	347×274×462	32
FQW48-12/W	12	48	4.5-5	0.5	347×274×462	31

The information you may like to know before order:

1. Payment

T/T (Telegraphic Transfer) or Western Union or L/C at sight

2. Delivery

Based on order quantity, normally it takes 7-20 days for production.

3. Shipping

Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air

Bulk order: we suggest by air or by sea.

4. Quality Control

We have our own experienced QC.

There will be strict inspection and testing for every order before shipping out.

5. After Services:

1. Our sales team will response for your question within 24 hours (Holidays Excluded)

2. Technical Support will be available in any time

3. Free replacement will provide once the failure confirmed caused by our product quality
