Spiral Bevel Gears
- Chinese Port
- T/T L/C D/P D/A
You May Like
Product Details
| Tooth Profile | Other, Spiral Bevel Gears | Direction | Left Hand | |
| Material | Steel | Processing | Other, Forging + Lapping + Heat Treatment | |
| Pressure Angle | as customer requirement | Model Number | BW88135102 | |
| Brand Name | BOWIN | Standard or Nonstandard | Nonstandard |
The spiral bevel gear are packed in couple in carton box.
The carton boxes are packed in wooden cases.
The package as request is avaliable.
Product Description

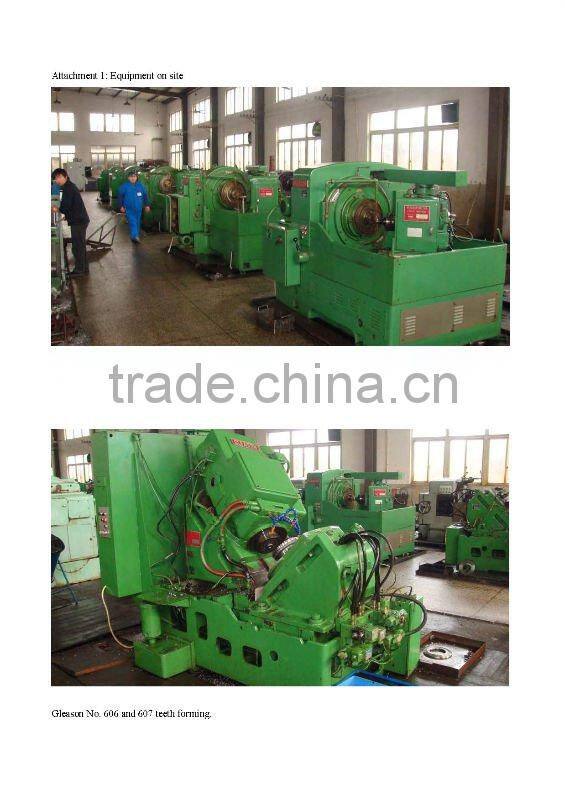

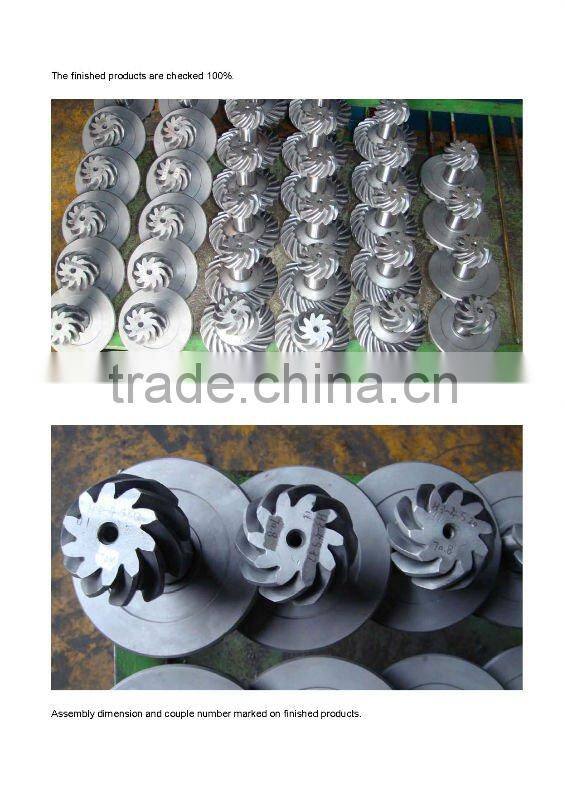

BW88135102 Spiral Bevel Gears are teeth machined by Gleason equipment, and heat treated with IPSEN heat treatment furnace. 100% of gears are checked in couple on low noise testing machine about contact mark, backlash and noise level.

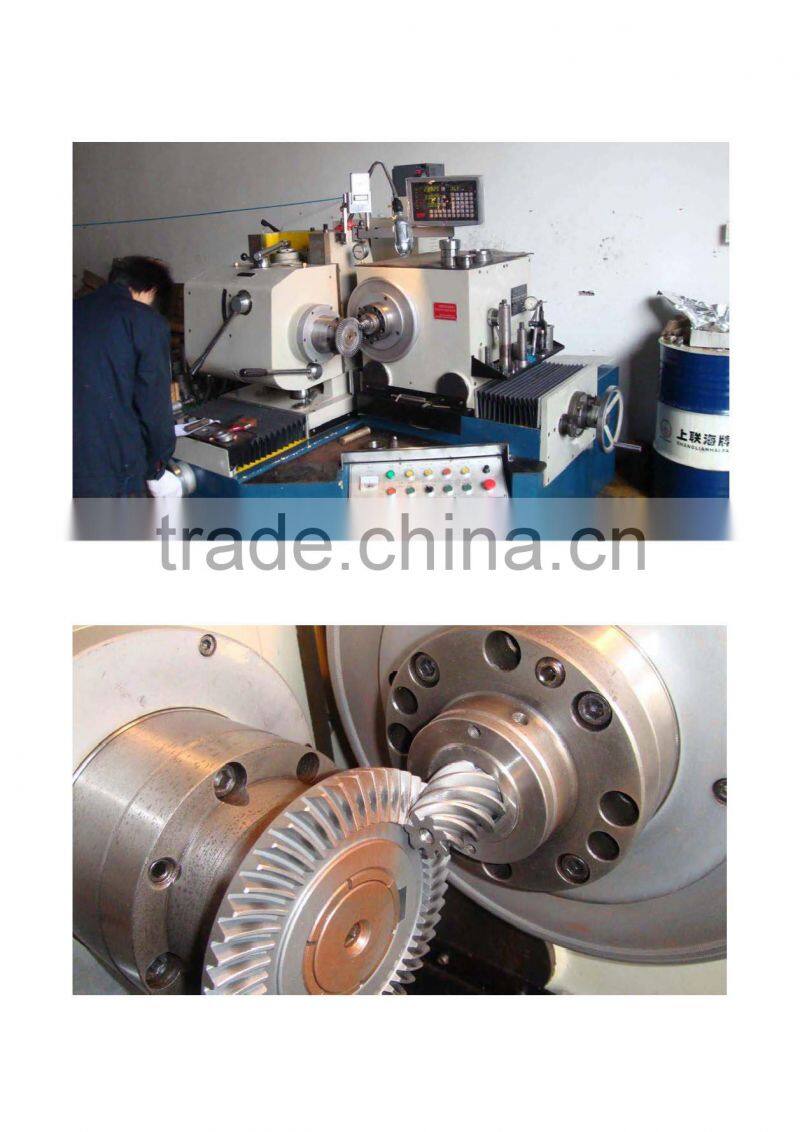

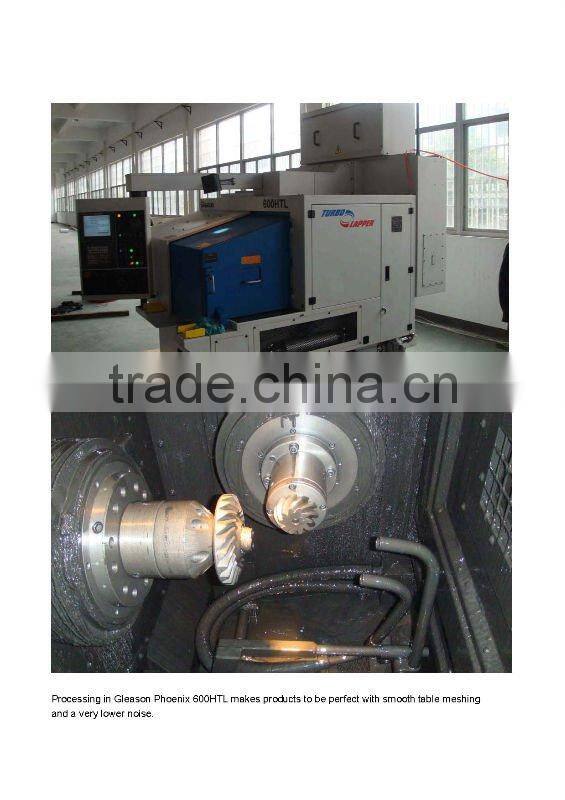

The driving pinion and driven crown are lapped in fine by Gleason 600HTL Turbo Lapper.

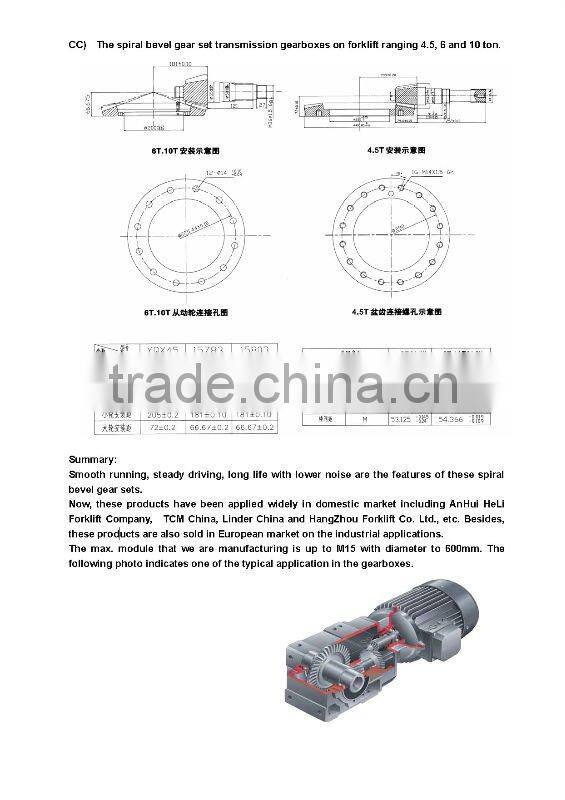

BW88135102 Spiral Bevel Gears are mainly applied on Mechanical and Hydrodynamic Forklift Transmission Gearboxes and Power Drive of Gearmotor.
Design and Production according to customer's demand are available.

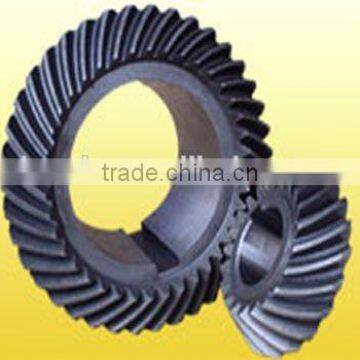

1.BW88135102 Spiral Bevel Gears for Gear Motor
2.M4.126, Z13 and M4.126, Z51
3.Material:20MnCr5
4.Weight:6.2KG
5.OEM Supply
Company Profile
Bowin International Co., Ltd. was established in 2008 and is located in Tianjin Free Zone of China. Our company has been specializing in the development and production of mechanical components and parts of construction equipment, agricultural machinery and automotive applications, such as various kinds of gearboxes, drive axles and shafts, gears, pinions, solid and hollow shafts, rings and other related products. Since our company implemented the global marketing strategy, we have established and kept good business relationships with esteemed enterprises especially in Europe. There are a lot of advanced machines in our company, and these machines are available in both domestic and international markets. We set up strict quality assurance system, conduct tracing control and arrange test in each processing step, thus the products have the predominant quality and competitive price. At the same time, we win the highest credit of the global customers. We welcome all customers from all over the world to cooperate with us.
