Custom Made Precision Small Titanium Gears OEM
- Chinese port
- T/T L/C D/P D/A
You May Like
Product Details
| Brand Name | BOWIN | Model Number | BWS66420XXX |
1. Gears are packed in carton by rolling with anti-rust paper;
2. The carton is packed in wooden cases.
3. Package as request is avaliable.
Product Description

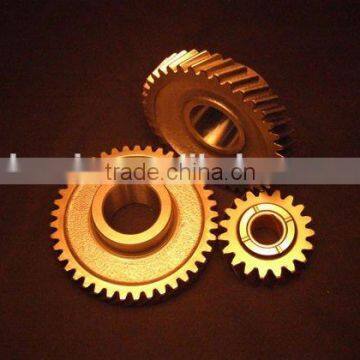

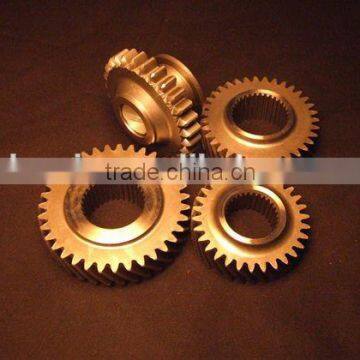

BW6642XXX Series Steel Shaved Gear with M3.5 Z44 is made by hobbing and shaving, the force honing process is possible to improve teeth surface in case necessary.
The precision level of teeth profile and lead are ensured at class 8 after heat treatment.
The design and manufacture as per customer's request are available.
1.Steel Shaved Planetary Gear
2.Material:20MnCr5, 8620H, 20CrMoH
3.DIN 3962-3963 Class 8
4.Roughness: Ra0.8
The involute teeth M2.5 Z29 is made by hobbing and shaving, with excellent control on the deformation during heat treatment, the precision level reaching DIN 3962-3963 class 8. Roughness on inner hole surface is at Ra 0.4, and Ra 0.8 on teeth surface.
Number of teeth: 29
Standard module:2.5
Standard pressure angle: 20
Tip diameter:79.5
Root diameter:67.592
DIN 3692-3693 class 8
Company Profile
Bowin International Co., Ltd. was established in 2008 and is located in Tianjin Free Zone of China. Our company has been specializing in the development and production of mechanical components and parts of construction equipment, agricultural machinery and automotive applications, such as various kinds of gearboxes, drive axles and shafts, gears, pinions, solid and hollow shafts, rings and other related products. Since our company implemented the global marketing strategy, we have established and kept good business relationships with esteemed enterprises especially in Europe. There are a lot of advanced machines in our company, and these machines are available in both domestic and international markets. We set up strict quality assurance system, conduct tracing control and arrange test in each processing step, thus the products have the predominant quality and competitive price. At the same time, we win the highest credit of the global customers. We welcome all customers from all over the world to cooperate with us.
