KG925D Middle Pressure Electric Motor Crawler Mounted Pneumatic Surface DTH Drilling Rig
US$ 21,700 - 25,300
/ Set
1 Set(Min. Order)
- Guangzhou port
- T/T Credit Card
You May Like
-
KG925 Middle Pressure Diesel Engine Crawler Mounted Pneumatic Surface DTH Drilling Rig
-
KG920S Middle Pressure Diesel Engine and Electric Motor Crawler Mounted Pneumatic Surface DTH Drilling Rig
-
KG920D Middle Pressure Electric Motor Crawler Mounted Pneumatic Surface DTH Drilling Rig
-
KG920A Middle Pressure Diesel Engine Crawler Mounted Pneumatic Surface DTH Drilling Rig
-
KG910C Low Pressure Diesel Engine and Electrical Motor Crawler Mounted Pneumatic Surface DTH Drilling Rig
-
KG915D Low Pressure Electric Motor Crawler Mounted Pneumatic Surface DTH Drilling Rig
Product Details
| Condition | New | Type | Rotary Drilling Rig | |
| Power Type | Electric | Place of Origin | Zhejiang, China | |
| Brand Name | Kaishan | Model Number | KG925D | |
| Usage | Ore | Voltage | 380V | |
| Power(W) | 30 kw | Dimension(L*W*H) | 5.68*2.13*2.1 m | |
| Weight | 4000 kg | Certification | ISO9001:2000 | |
| Warranty | 1 Year | After-sales Service Provided | No overseas service provided |
Product Description

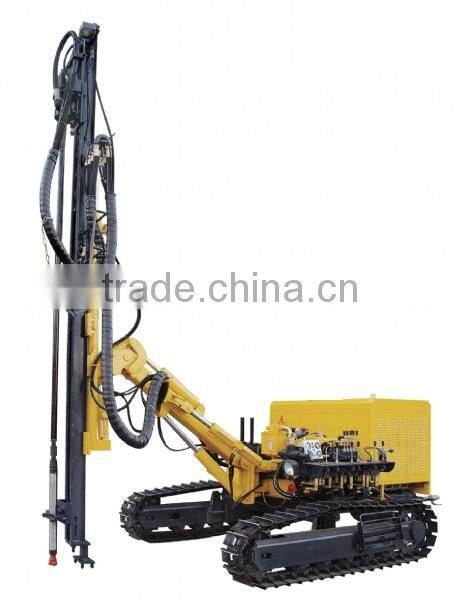

KAISHAN KG925D Middle Pressure Electric Motor Crawler Mounted Pneumatic Surface DTH Drilling Rig
Middle Pressure Pneumatic Surface DTH Drilling Rig

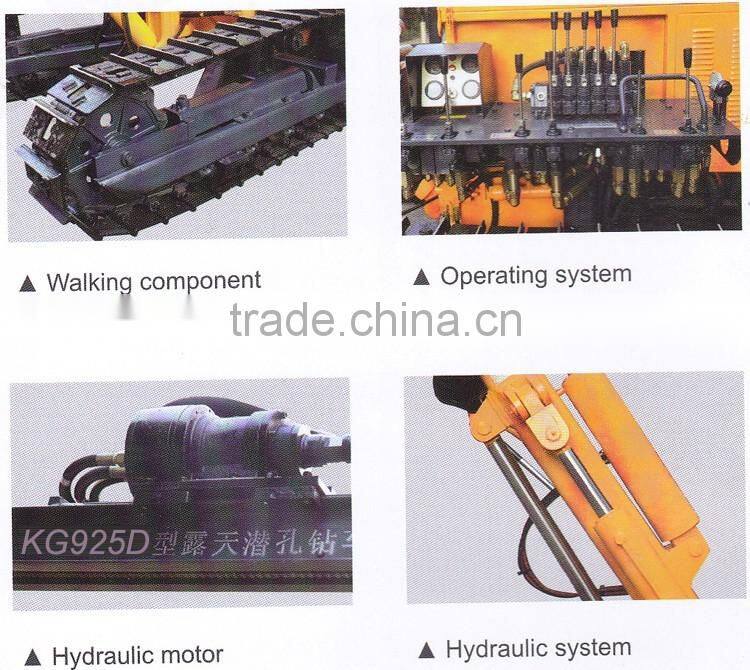

KG920 series surface DTH drilling rig retains the characteristics of KY125 drilling rig. The hydraulic system, drilling boom components, traveling components have been optimized and upgraded. Motivation and climb capacity is stronger and drilling angle is more reasonable. The rotation speed and advancing speed can be faster. The motor service life is longer and the reliability is better.
KG925 series surface DTH drilling rig is with variable pitch mechanism and double pivot angle mechanism. Pitch and pendulum angle is big, and moves smoothly, the cycloid motor gyrator with high speed and big torque.
| Middle Pressure Pneumatic Surface DTH Drilling Rig Specification | ||||||
| Model | KG920A | KG920B | KG920D | KG920S | KG925 | KG925D |
| Rock Rigidity | f=6-20 | f=6-20 | f=6-20 | f=6-20 | f=6-20 | f=6-20 |
| Drilling Hole Diameter | 80-115mm | 80-115mm | 80-115mm | 80-115mm | 80-115mm | 80-115mm |
| Drilling Depth | 25m | 25m | 25m | 25m | 25m | 25m |
| Traveling Speed | 0-1.8km/h | 0-1.8km/h | 0-1.8km/h | 0-2.0km/h | 0-2.0km/h | 0-2.0km/h |
| Rotation Speed | 0-70r/min | 0-70r/min | 0-70r/min | 0-120r/min | 0-120r/min | 0-120r/min |
| Rotation Torque | 1400N.m | 1400N.m | 1400N.m | 1400N.m | 1400N.m | 1400N.m |
| Max. Feed Force | 15000N | 15000N | 15000N | 15000N | 15000N | 15000N |
| Push Way | Cylinder. Chain | Cylinder. Chain | Cylinder. Chain | Cylinder. Chain | Cylinder. Chain | Cylinder. Chain |
| Feed Stroke | 3000mm | 3000mm | 3000mm | 3000mm | 3000mm | 3000mm |
| Climb Capacity | 30º | 30º | 30º | 30º | 30º | 30º |
| Ground Clearance | 290mm | 290mm | 290mm | 350mm | 290mm | 290mm |
| Weight | 4000kg | 4200kg | 4000kg | 5500kg | 4200kg | 4000kg |
| Dimension | 5.5*2.2*2.3m | 5.5*2.2*2.3m | 5.5*2.2*2.3m | 5.5*2.2*2.35m | 5.68*2.13*2.1m | 5.68*2.13*2.1m |
| Guide Tilt | 50º up, 135º down | 50º up, 135º down | 50º up, 135º down | 50º up, 135º down | 50º up, 135º down | 50º up, 135º down |
| Guide Swing | 45º right, 100º left | 45º right, 100º left | 45º right, 100º left | 45º right, 100º left | 45º right, 100º left | 45º right, 100º left |
| Boom Lift | 25ºup, 50ºdown | 25ºup, 50ºdown | 25ºup, 50ºdown | 25ºup, 50ºdown | 25ºup, 50ºdown | 25ºup, 50ºdown |
| Boom Swing | 45º right, 44º left | 45º right, 44º left | 45º right, 44º left | 45º right, 44º left | 45º right, 44º left | 45º right, 44º left |
| Compensation Stroke | 900mm | 900mm | 900mm | 900mm | 900mm | 900mm |
| Engine Model | YC2108 | YC4D80 | Electromotor | YC4D80 / Electromotor | YC4D80 | Electromotor |
| Power | 33kw | 58kw | 30kw | 58/45kw | 58kw | 30kw |
| Working Pressure | 7-17bar | 7-17bar | 7-17bar | 7-17bar | 7-17bar | 7-17bar |
| Air Consumption | 9-16m³/min | 9-16m³/min | 9-16m³/min | 9-16m³/min | 9-16m³/min | 9-16m³/min |
| Air Hose | φ38*2*20 | φ38*2*20 | φ38*2*20 | φ38*2*20 | φ38*2*20 | φ38*2*20 |
| Recommended Hammer | QCW930 (KQG45S; HD45S; KQG35A) | QCW930 (KQG45S; HD45S; KQG35A) | QCW930 (KQG45S; HD45S; KQG35A) | QCW930 (KQG45S; HD45S; KQG35A) | KQG45S (HD45S; QCW930; KQG35A) | KQG45S (HD45S; QCW930; KQG35A) |
| Recommended Rod | φ64*3000mm (φ76*3000mm) | φ64*3000mm (φ76*3000mm) | φ64*3000mm (φ76*3000mm) | φ64*3000mm (φ76*3000mm) | φ64*3000mm (φ76*3000mm) | φ64*3000mm (φ76*3000mm) |
| Recommended Bit | φ80-115mm (105mm; 90mm; 115mm) | φ80-115mm (105mm; 90mm; 115mm) | φ80-115mm (105mm; 90mm; 115mm) | φ80-115mm (105mm; 90mm; 115mm) | φ80-115mm (105mm; 90mm; 115mm) | φ80-115mm (105mm; 90mm; 115mm) |
| Recommended Air Compressor | LGCY-13/13 (LGCY-15/13; LGCY-12/10; LGCY-13/17) | LGCY-13/13 (LGCY-15/13; LGCY-12/10; LGCY-13/17) | LGCY-13/13 (LGCY-15/13; LGCY-12/10; LGCY-13/17) | LGCY-13/13 (LGCY-15/13; LGCY-12/10; LGCY-13/17) | LGCY-13/13 (LGCY-15/13; LGCY-12/10; LGCY-13/17) | LGCY-13/13 (LGCY-15/13; LGCY-12/10; LGCY-13/17) |
| Please contact us for further information. | ||||||

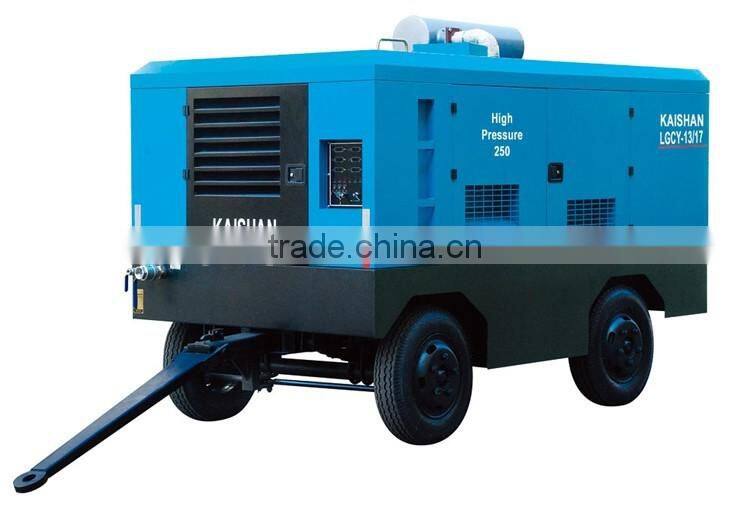

Recommended Diesel engine portable screw air compressor (LGCY-13/17):
Recommended components and spare parts for drilling equipments:
Please contact us for further information.
