KW30 300m Depth 168 ~ 300mm Diameter Crawler Mounted Multifunctional Geothermal Water Well Drilling Rig
US$ 46,300 - 49,200
/ Set
1 Set(Min. Order)
- Guangzhou port
- T/T Credit Card
You May Like
-
KW20C 200m Depth 115 ~ 220mm Diameter Truck Mounted Multifunctional Geothermal Water Well Drilling Rig
-
KW20 200m Depth 115 ~ 254mm Diameter Crawler Mounted Multifunctional Geothermal Water Well Drilling Rig
-
KAISHAN KW10 120m Depth 115 ~ 180mm Diameter Crawler Mounted Multifunctional Geothermal Water Well Drilling Rig
-
KT20S the Most Advanced Diesel Engine and Electric Motor Driven Crawler Mounted Integrated Dth Drilling Rig
-
KT20 the Most Advanced Crawler Mounted Integrated Dth Drilling Rig
-
KT15 the Most Advanced Crawler Mounted Integrated Dth Drilling Rig
Product Details
| Condition | New | Type | Rotary Drilling Rig | |
| Power Type | Diesel | Place of Origin | Zhejiang, China | |
| Brand Name | Kaishan | Model Number | KW30 | |
| Usage | Water Well | Voltage | 380V | |
| Power(W) | 110 kw | Dimension(L*W*H) | 5.2*2.3*3.2 m | |
| Weight | 9500 kg | Certification | ISO9001:2000 | |
| Warranty | 1 Year | After-sales Service Provided | No overseas service provided |
Product Description

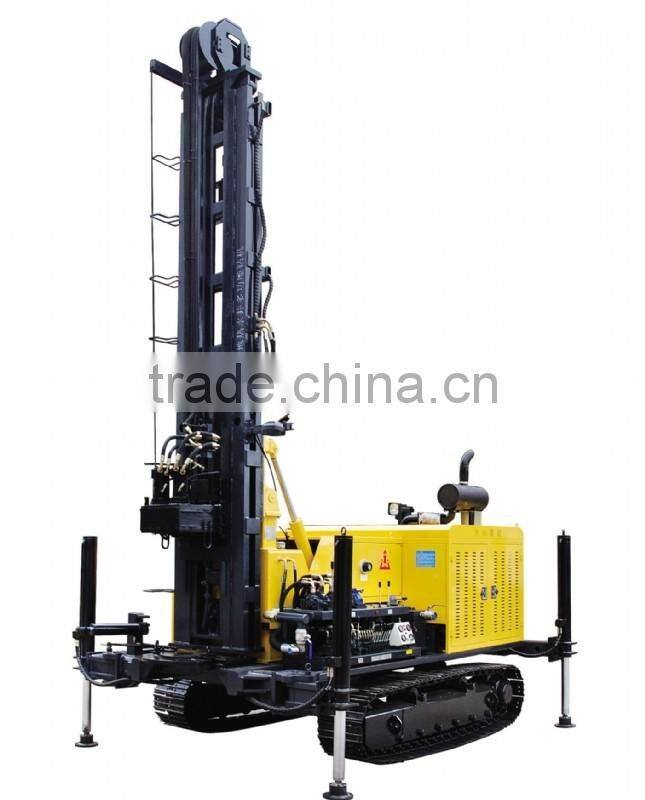

KAISHAN KW30 Crawler Mounted Multifunctional Geothermal Water Well Drilling Rig
Multifunctional Geothermal Water Well Drilling Rig
KW series water well drilling rig is a lightweight, high efficiency, multifunctional car hole drilling equipment. It is mainly suitable for drilling wells, geothermal air-conditioning holes and well holes for other purposes.
1. The drilling rig can work in different formation and the hole depth is up to 350m.
2. The drilling rig adopts the new type of hydraulic technology, and is equipped with the high torque hydraulic motor rotary and large bore hydraulic oil cylinder. The engine of famous factory to provide power for hydraulic system, two levels filter and design of air compressor inlet, prolonging the service life of diesel engine.
3. Unique design of pump group is convenient for maintenance, and reduces the maintenance cost. Centralized control of the hydraulic control console is convenient for operation.
4. The drilling rig adopts engineering machinery dedicated crawler chassis; cross-country performance is strong. Independent module design can make the drilling rig be installed on the truck to increase its mobility. Combined the locator can adjust and change the positioning tray according to different types of drill rod and impact or to guarantee accurate and reliable positioning centering.
| KW Series Water Well Drilling Rig Specification | |||||||
| Model | KW10 (Crawler-mounted) | KW20 (Crawler-mounted) | KW20C (Truck-mounted) | KW30 (Crawler-mounted) | KW180 (Crawler-mounted) | KW400 (Crawler-mounted) | KW600 (Crawler-mounted) |
| Drilling Hole Diameter | 115-180mm | 115-254mm | 115-220mm | 168-300mm | 110-202mm | 110-273mm | 130-350mm |
| Drilling Depth | 120m | 200m | 200m | 300m | 180m | 250m | 450m |
| Traveling Speed | 0-2.5km/h | 0-2.5km/h | 0-2.5km/h | 0-2.5km/h | 0-2km/h | 0-2km/h | |
| Rotation Speed | 50-100r/min | 60-105r/min | 60-105r/min | 43/52/69-85/102/125r/min | 33-67r/min | 57-94r/min | 38-61 (76-120)r/min |
| Rotation Torque | 3200N.m | 4000N.m | 4000N.m | 4000-8000N.m | 4200N.m | 5700N.m | 8600 (3200)N.m |
| Max. Feed Force | 30000N | 45000N | 45000N | 50000N | 25000N | 44000N | 75000N |
| Max. Hoist Force | 70000N | 95000N | 95000N | 150000N | 50000N | 95000N | 153000N |
| Feed Stroke | 1750mm | 2400mm | 2400mm | 2400mm | 2380mm | 4400mm | 4400mm |
| Climb Capacity | 15° | 25° | 25° | 20° | 20° | 20° | |
| Ground Clearance | 254mm | 280mm | 280mm | 290mm | 280mm | 280mm | |
| Jacket Stroke | 460mm | 1000mm | 1000mm | 1000/1500mm | 1000/1500mm | 1400mm | 1400mm |
| Weight | 6500kg | 8500kg | 10000kg | 9500kg | 4500kg | 9800kg | 10000kg |
| Dimension | 6*2.3*2.5m | 5.1*2.3*2.85m | 6.7*2.15*3.2m | 5.2*2.3*3.2m | 2.7*1.55*2.35m | 7.3*2.25*2.75m | 7.3*2.25*2.75m |
| Engine Model | YC4D80 | YC6B125-K10 | YC6B125-K10 | YC6B150Z-Z21 | YC4D80 | YC6B125-K10 | YC6B150Z-Z21 |
| Power | 58kw | 92kw | 92kw | 110kw | 58kw | 92kw | 110kw |
| Working Pressure | 10.5-24.6bar | 10.5-24.6bar | 10.5-24.6bar | 10.5-24.6bar | 10.5-24.6bar | 10.5-24.6bar | 10.5-34.5bar |
| Air Consumption | 16-30m³/min | 16-30m³/min | 16-35m³/min | 16-40m³/min | 16-30m³/min | 16-54m³/min | 16-76.4m³/min |
| Recommended Hammer | HD45 / HD55 / HD65 | HD45 / HD55 / HD65 / HD85 | HD45 / HD55 / HD65 / HD85 | HD65 / HD85 | HD45 / HD55 / HD65 | HD45 / HD55 / HD65 / HD85 | HD55 / HD65 / HD85 / HSD10 |
| Recommended Rod | φ76*3000mm; φ89*3000mm | φ76*3000mm; φ89*3000mm | φ76*3000mm; φ89*3000mm | φ89*3000mm; φ102*3000mm | φ76*3000mm; φ89*3000mm | φ89*3000mm; φ102*3000mm | φ89*3000mm; φ102*3000mm; φ114*3000mm |
| Recommended Bit | φ115-180mm | φ115-254mm | φ115-220mm | φ168-300mm | φ110-202mm | φ110-273mm | φ130-350mm |
| Recommended Air Compressor | LGCY-22/20; LGCY-27/20 | LGCY-27/20; LGCY-33/25 | LGCY-27/20; LGCY-33/25 | LGCY-33/25; LGCY-39/25 | LGCY-22/20; LGCY-27/20 | LGCY-33/25 | LGCY-33/25; LGCY-39/25 |
| Please contact us for further information. | |||||||

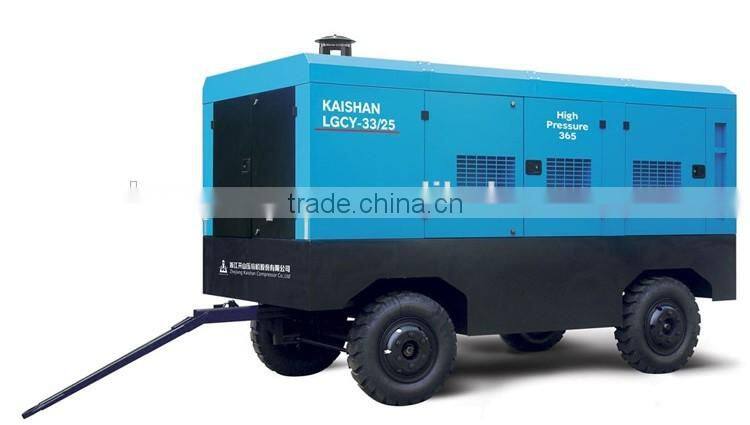

Recommended Air Compressor: Diesel-engine screw air compressor (LGCY-33/25):
Recommended components and spare parts for drilling equipments:
Please contact us for further information.
