Home > Products > Trommel Screen > HSM ISO CE Compost Trommel Screen For Sale

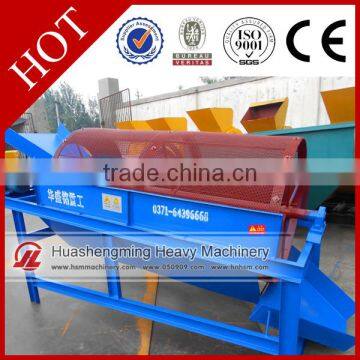

HSM ISO CE Compost Trommel Screen For Sale

FOB Price

US$ 2,000 - 10,000 / Set

1 Set(Min. Order)

Port Any port in China
Payment TermsT/T L/C D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Circular
Application	Other, many industry, Fine Power wood chip soil compost etc.	Place of Origin	Henan, China
Brand Name	HSM	Model Number	GTS0630
Voltage	380V as for customer local	Power(W)	5.5kw
Dimension(LWH)	Ref.parameter	Weight	2t
Certification	ISO,CE	Warranty	2 YEARS, 2 Years
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

HSM ISO CE Compost Trommel Screen For Sale

Product Application

The Compost Trommel is used for screening and classifying materials, also widely used in metallurgy, mining, chemical, coal, building materials, abrasives, and other industries.

Typical material:

Crushed stone and concrete
Construction and demolition waste
Woodchip
Compost
Hardcore
Skip
Waste
Topsoil
Sand and gravel Peat

This compost trommel screen is export to philippine, screen mesh size 8mm. model 0630, diesel engine drive.

Compost Trommel Screen Main Features

1. single layer, double layer and muti layer type trommel optional

2. strong processing ability

3. Easy maintenance and long life

4. High-efficient and power-saving

5. Simple and various feeding ways

6. non-pollution and low noise

Compost Trommel Screen Working Principle

compost feed into the trommel and lifted up by the

rotation and aerated as it falls back down. This action is

repeated with each revolution along the length of the

trommel. The finer material passes through the screen

openings while the larger material tumbles towards its

eventual exit at the rear of the trommel.

Compost Trommel Screen Technical Parameter

Model	Drum Specifications （m）	Rotation Speed （r/min）	Screen mesh size （mm）	Max Feeding Sizes （mm）	Capacity （m3/h）	Motor Power （kw）
GTS820	Φ0.8X2	17-32	2-20mm	Mesh size* 2.5	8-30	3
GTS830	Φ0.8X3	17-32	2-20mm	Mesh size* 2.5	10-50	3
GTS1030	Φ1X3	17-32	2-20mm	Mesh size* 2.5	12-60	4
GTS1040	Φ1X4	17-32	2-20mm	Mesh size* 2.5	15-80	4
GTS1230	Φ1.2X3	17-32	2-20mm	Mesh size* 2.5	16-100	5.5
GTS1240	Φ1.2X4	17-32	2-20mm	Mesh size* 2.5	18-120	5.5
GTS1250	Φ1.2X5	17-32	2-20mm	Mesh size* 2.5	20-120	5.5
GTS1530	Φ1.5X3	17-32	2-20mm	Mesh size* 2.5	20-140	5.5
GTS1540	Φ1.5X4	17-32	2-20mm	Mesh size* 2.5	22-150	7.5
GTS1550	Φ1.5X5	17-32	2-20mm	Mesh size* 2.5	25-180	₁₁

Certifications

Detailed Images

Our Company

Gongyi Huashengming Heavy Machinery Factory are mainly produce crushing and screening equipment.
We have 20 years experience.Our products got ISO CE BV SGS certificate. If your are interested in any of our machine,

pls feel free to contact us. Compost Trommel Screen For Sale

Packing & Delivery

FAQ

Q: Can I visit your factory?

A: Yes. Many domestic and overseas customers visited our factory every year.

Q: What about the warranty of your equipment? Do you supply spare parts?

A: Our warranty is 2 years(24 months), and we can supply spare parts also.

Q: Do you provide equipment operation training?

A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.

Q: Do you provide producution flow chart?

A: Yes. Our experienced engineers are specialized in designing process flow for trommel screen equipment.

Q: Can you test our sample raw material?

A: Yes. You can send your samples to us for testing and analysis.

Q: Have you made the whole trommel for sale line?

A: Yes. We have made many large&small scale trommel screen line at home and abroad.
