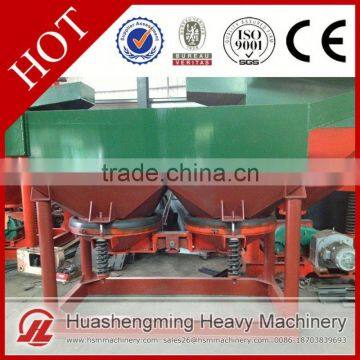

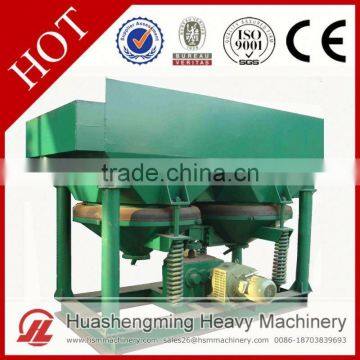

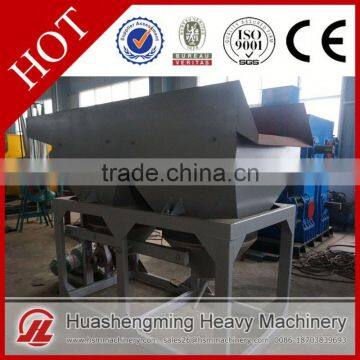

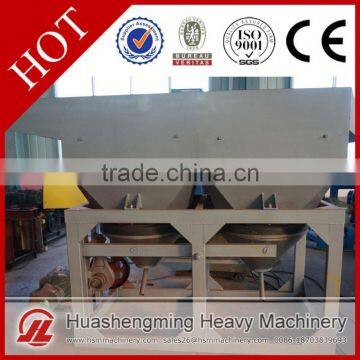

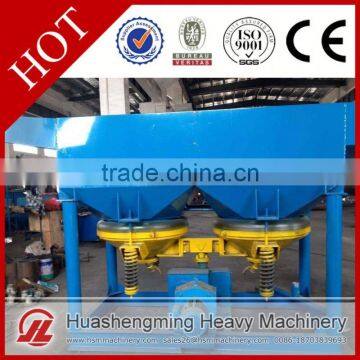

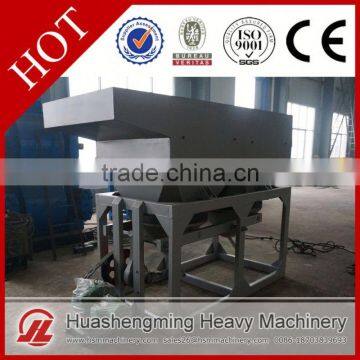

HSM CE small gold jiging machine
- Tianjin Shanghai Qingdao
- T/T Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Gravity Separator | |
| Production Capacity | 5-10t/h | Place of Origin | Henan, China | |
| Brand Name | HSM small gold jiging machine | Model Number | JT2-2A | |
| Voltage | 380v 220v | Power(W) | 5.5kw | |
| Dimension(L*W*H) | 3225*1550*2050mm | Weight | 3500kg | |
| Certification | ISO CE | Warranty | 2years | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
1. Application of small gold jiging machine
small gold jiging machine is applicable to separate the minerals of large density contrast like wolfram ore, tannery, iron ore, manganese minerals, and chromium minerals, and the non-ferrous metallic substance and black metallic substance consisting of gold and rare metal.
2:Feature of small gold jiging machine
High capacity
High concentration ratio and high recovery
Fabricated with highest quality material
Easy to install, operate and maintain
The pulsation curve is saw-tooth wave shape facilitate heavy mineral to settling
Saving water 30-40% than ordinary jig
The pulsation speed very easy adjusted by regulator
Suitable for roughing and desliming
This machine Can achieve a good result in processing such as placer gold, tungsten, iron, tin, hematite, cope,
tantalum-niobium, titanium, manganese, barite, zirconium, chrome and gemstone etc.saw-tooth Jig
operating recovery rate is higher than the sine wave by the sn: 3.01%, w: 5.5%, pb: 1.63%, zn: 2.04%; water
consumption reduced by 30% -40%, covers reduction by 1/3, and the stroke is adjustable. The performance of Saw-tooth Wave
Jig has reached the domestic advanced level, and is one of the ideal devices in energy-saving gravity separation.
3:Working principle of small gold jiging machine
small gold jiging machine need water to work, and it loosens materials in vertical alternative water-flows, and it forms different layers of materials
of different densities and discharges both layers from up and down
discharging ports separately. The basic composition of jigger is jigging chambers, also called jigging boxes,
and there are screens in each chamber.Water and raw ore will be fed from one end of the jigger screen,
the ore granules will move in the vertical alternative water-flows. Layers will be formed because of density difference of materials.
The minerals with small density will be in the up layer and will flow together with the up pulp flow while material with bigger
density will be in the down layer and will discharged from the down discharging port as jigging concentrate.
4:Technical Data Of small gold jiging machine
Model | Chamber | Feeding Size(mm) | Water added | Pressure of water | Processing capacity | Motor Power | Dimension | Weight | |
shape | Aream2 | ||||||||
JT0.57-1 | Ladder | 0.57 | <6 | 1-3 | >0.5 | 1-2.5 | 1.5 | 1550*780*1530 | 610 |
JT1-1 | Ladder | 1.04 | <10 | 1-3 | 2-4 | 2.2 | 2270*1110*1890 | 900 | |
JT2-2 | Rect | 2.28 | <10 | 1-3 | 4-8 | 3 | 3225*1550*2050 | 1640 | |
JT3-1 | Ladder | 3.3 | <10 | 1-3 | >0.5 | 6-10 | 5.5 | 3180*2000*2600 | 3260 |
JT5-2 | Ladder | 4.86 | <10 | 1-3 | 10-15 | 7.5 | 3600*2000*2600 | 4500 | |
JT1.5-2 | Rect | 1.53 | <30 | 1-2 | >0.5 | 5-8 | 3 | 3200*1550*2050 | 1520 |
JT4-2 | Rect | 4.33 | <30 | 1-2 | 10-15 | 7.5 | 3600*1850*2600 | 4600 | |
We usually accept EXW, FOB and CIF etc. terms.
1.By sea or by train. we have 20 years cooperate transport company. bestfreight, fast delivery.
2.Send B/L in 3-5 days after ship leaving.
3.will remind you before ship arrival.
1.Rustproof and moisture proof before small gold jiging machine delivery.
2.Free fumigation plywood case for single machine,larger parts are wrapped by plastic sheeting.
3.Export standard container 20GP,40GP,40HQ,etc. for production line.
4.Other packaging according to your special requirement
1. We are small gold jiging machine factory,NOT Dealer
2. Training & service
1.Design most suitbale flow chart and layout freely according to your request.
2.Provide operating instruction and relative drawing.
3.We can send 1-2 technicians to the site for guiding the installation and commissioning.
4.We offer training service for free.
5.We offer the components with favorable price.
6.lifetime Warranty.
Gongyi Huashengming Machinery Co., Ltd is a high-technology enterprise in Gongyi City. For the past twenty years, Huashengming has been developing and manufacturing machines for the stone crushing plant, drying plant, screening plant,oil press plant,wood pellet production line ,construction machine and so on.
Our factory has 800 sets of equipment, more than 1,300 employees, including 215 technicians, with casting, forging, heat treatment, machining, welding, assembly, machine repair workshop, and a complete quality assurance system TQC. Testing and heat treatment through the ISO9001 international quality system certification, to provide customers with the design and manufacture of complete sets of equipment
1. Q: Can I visit your factory?
A: Yes. Many domestic and overseas customers visited our factory every year.
2. Q: What about the warranty of your equipment? Do you supply spare parts?
A: Our warranty is 2 years(24 months), and we can supply spare parts also.
3. Q: Do you provide after-sales service?
A: Yes. We have a professional after-sale service team to promptly and thoroughly solve your problems.
4. Q: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.
5. Q: Do you provide producution flow chart?
A: Yes. Our experienced engineers are specialized in designing process flow for stone crushing plant and various ores beneficiation line.
6. Q: Can you test our sample raw material?
A: Yes. You can send your samples to us for testing and analysis.
Why HSM small gold jiging machine with high production is popular in the world ?
The reason:The outstanding features of small gold jiging machine from HSM.
1.Easy to transport
2.Greatly reduce material transportation cost
3.Wide applications
4.Reliable performance and convenient maintenance
5.Customized production and flexible configuration
HSM insists on providing clients with overall solutions from equipment recommendation to debugging and installation, worker training, technical support and maintenance.
