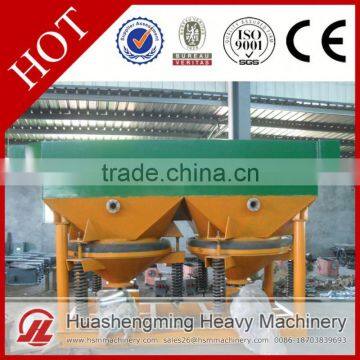

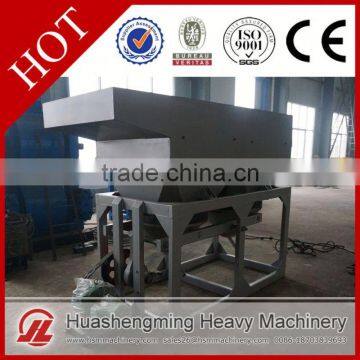

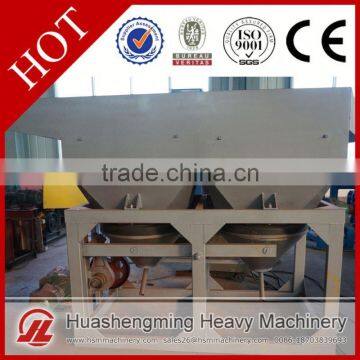

HSM CE Sawtooth Pulsation Jig

1. Application of sawtooth pulsation jig

sawtooth pulsation jig is applicable to separate the minerals of large density contrast like wolfram ore, tannery, iron ore, manganese minerals, and chromium minerals, and the non-ferrous metallic substance and black metallic substance consisting of gold and rare metal.

2:Feature of sawtooth pulsation jig

High capacity
High concentration ratio and high recovery
Fabricated with highest quality material
Easy to install, operate and maintain
The pulsation curve is saw-tooth wave shape facilitate heavy mineral to settling
Saving water 30-40% than ordinary jig
The pulsation speed very easy adjusted by regulator
Suitable for roughing and desliming
This machine Can achieve a good result in processing such as placer gold, tungsten, iron, tin, hematite, cope,
tantalum-niobium, titanium, manganese, barite, zirconium, chrome and gemstone etc.saw-tooth Jig
operating recovery rate is higher than the sine wave by the sn: 3.01%, w: 5.5%, pb: 1.63%, zn: 2.04%; water
consumption reduced by 30% -40%, covers reduction by 1/3, and the stroke is adjustable. The performance of Saw-tooth Wave
 Jig has reached the domestic advanced level, and is one of the ideal devices in energy-saving gravity separation.

3:Working principle of sawtooth pulsation jig

sawtooth pulsation jig need water to work, and it loosens materials in vertical alternative water-flows, and it forms different layers of materials
of different densities and discharges both layers from up and down
discharging ports separately. The basic composition of jigger is jigging chambers, also called jigging boxes,
and there are screens in each chamber.Water and raw ore will be fed from one end of the jigger screen,
the ore granules will move in the vertical alternative water-flows. Layers will be formed because of density difference of materials.
The minerals with small density will be in the up layer and will flow together with the up pulp flow while material with bigger
density will be in the down layer and will discharged from the down discharging port as jigging concentrate.

4:Technical Data Of sawtooth pulsation jig
