Home > Products > New Products > DISK MILL FFC-15

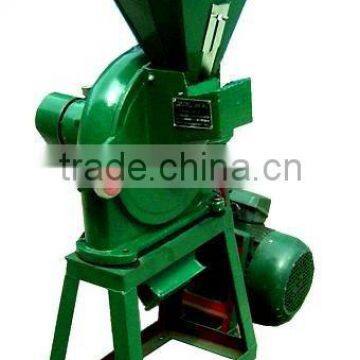

DISK MILL FFC-15
US$ 30 - 300
/ Set
200 Sets(Min. Order)
- QINGDAO CHINA
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | JIMO brand | |
| Model Number | FFC-15 | Type | Grain Processing Equipment |
Product Description
Specifications
DISK MILL FFC-151.JIMO brand
2.Rotational speed of main shaft:9000r.p.m.
3.power:1.1kw
4.sieve size:0.6,1.2
DISK MILL DISC MILL :FFC-15
| MODEL | Unit | FFC-15 |
| Rotational speed of main shaft | r.p.m | 9000 |
| Outer diameter of the rotator (including oblate gear) | mm | 150 |
| Number of oblate gears of the rotator | p.c | 3 |
| Number of knuckle gears of the rotator | p.c | 3 |
| Circles of square gears of the gear wheel | circles | 1 |
| Pitch between the oblate gear and screen | mm | 9 |
| Sieve size | mm | 0.6,1.2 |
| Motor:power | kw | 1.1 |
| Motor:rotational speed | r/min | 2840 |
| Dimension(length*width*height) | mm | 565*305*610 |
| Weight(excluding the motor) | kg | 18 |
| Packing size | mm | 556*271*285 |
| quantity per 20"container(without motor) | set | 824 |
| quantity per 20"container(with e-motor) | set | 576 |
DISK MILL DISC MILL FFC-15,FFC-23,FFC-37,FFC-45
| DISK MILL | |||||
| MODEL | Unit | FFC-15 | FFC-23 | FFC-37 | FFC-45 |
| Rotational speed of main shaft | r.p.m | 9000 | 5800 | 3600 | 3000 |
| Outer diameter of the rotator (including oblate gear) | mm | 150 | 230 | 370 | 450 |
| Number of oblate gears of the rotator | p.c | 3 | 4 | 4 | 5 |
| Number of knuckle gears of the rotator | p.c | 3 | 8 | 8 | 12 |
| Circles of square gears of the gear wheel | circles | 1 | 2 | 2 | 2 |
| Pitch between the oblate gear and screen | mm | 9 | 19 | 16.5 | 16.5 |
| Sieve size | mm | 0.6,1.2 | 0.6,1.2,3.6 | 0.6,1.2,3.6 | 0.6,1.2,3.6 |
| Motor:power | kw | 1.1 | 3 | 7.5 | 11 |
| Motor:rotational speed | r/min | 2840 | 2840 | 1450 | 1450 |
| Dimension(length*width*height) | mm | 565*305*610 | 800*500*1000 | 1050*680*1325 | 1150*755*1425 |
| Weight(excluding the motor) | kg | 18 | 65 | 158 | 224 |
| Packing size | mm | 556*271* 285 | 635*565* 455 | 870*670* 658 | 970*670* 750 |
| quantity per 20"container(without motor) | set | 824 | 220 | 104 | 60 |
| quantity per 20"container(with e-motor) | set | 576 | 155 | 72 | 49 |
