Disk mill FFC-45

FOB Price

USD $40 - $300 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China		Brand Name	JIMO
Model Number	FFC-45		Type	Grain Processing Equipment

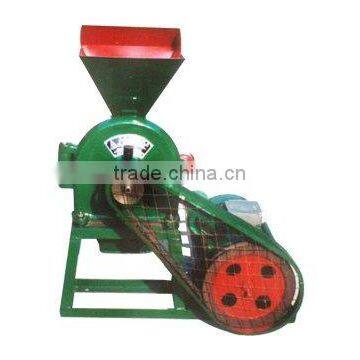

FFC-45 disk mill disc mill
1.Speed of main shaft 3000r/min
2.Outer diameter of the rotator 450 mm
3.Motor power 11kw

FFC-45 disk mill	specification
Speed of main shaft	3000r/min
Outer diameter of the rotator	450 mm
Diameter of hole in screen :	0.6 /1.2/3.6 mm
Overall dimension	74011501340mm
Motor power	11kw
Motor speed	1450r/min
Belt style	B2184
Belt Quantity	4
Disk mill weight	224kg (no motor)

DISK MILL(DISC MILL):FFC-15,FFC-23,FFC-37,FFC-45

DISK MILL
MODEL	Unit	FFC-15	FFC-23	FFC-37	FFC-45
Rotational speed of main shaft	r.p.m	9000	5800	3600	3000
Outer diameter of the rotator (including oblate gear)	mm	150	230	370	450
Number of oblate gears of the rotator	p.c	3	4	4	5
Number of knuckle gears of the rotator	p.c	3	8	8	12
Circles of square gears of the gear wheel	circles	1	2	2	2
Pitch between the oblate gear and screen	mm	9	19	16.5	16.5
Sieve size	mm	0.6,1.2	0.6,1.2,3.6	0.6,1.2,3.6	0.6,1.2,3.6
Motor:power	kw	1.1	3	7.5	11
Motor:rotational speed	r/min	2840	2840	1450	1450
Dimension(lengthwidthheight)	mm	565305610	8005001000	10506801325	11507551425
Weight(excluding the motor)	kg	18	65	158	224
Packing size	mm	556271 285	635565 455	870670 658	970670 750
quantity per 20"container(without motor)	set	824	220	104	60
quantity per 20"container(with e-motor)	set	576	155	72	49
