Home > Products > New Products > Disk mill Disc mill FFC-15,23,37,45

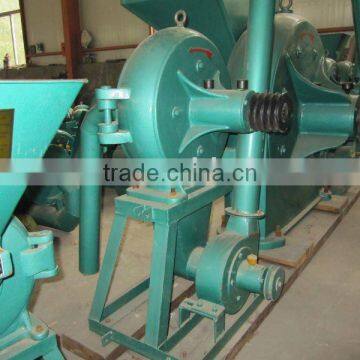

Disk mill Disc mill FFC-15,23,37,45
USD $40 - $300
/ Set
1 Set(Min.Order)
- 500 Set / Sets per Month
- Qingdao China
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | JIMO | |
| Model Number | FFC-15,FFC-23,FFC-37,FFC-45 | Type | Grain Processing Equipment |
Product Description
Specifications
FFC-45 disk mill disc mill1.Speed of main shaft 3000r/min
2.Outer diameter of the rotator 450 mm
3.Motor power 11kw
| FFC-45 disk mill | specification |
| Speed of main shaft | 3000r/min |
| Outer diameter of the rotator | 450 mm |
| Diameter of hole in screen : | 0.6 /1.2/3.6 mm |
| Overall dimension | 740*1150*1340mm |
| Motor power | 11kw |
| Motor speed | 1450r/min |
| Belt style | B2184 |
| Belt Quantity | 4 |
| Disk mill weight | 224kg (no motor) |
DISK MILL(DISC MILL):FFC-15,FFC-23,FFC-37,FFC-45
| DISK MILL | |||||
| MODEL | Unit | FFC-15 | FFC-23 | FFC-37 | FFC-45 |
| Rotational speed of main shaft | r.p.m | 9000 | 5800 | 3600 | 3000 |
| Outer diameter of the rotator (including oblate gear) | mm | 150 | 230 | 370 | 450 |
| Number of oblate gears of the rotator | p.c | 3 | 4 | 4 | 5 |
| Number of knuckle gears of the rotator | p.c | 3 | 8 | 8 | 12 |
| Circles of square gears of the gear wheel | circles | 1 | 2 | 2 | 2 |
| Pitch between the oblate gear and screen | mm | 9 | 19 | 16.5 | 16.5 |
| Sieve size | mm | 0.6,1.2 | 0.6,1.2,3.6 | 0.6,1.2,3.6 | 0.6,1.2,3.6 |
| Motor:power | kw | 1.1 | 3 | 7.5 | 11 |
| Motor:rotational speed | r/min | 2840 | 2840 | 1450 | 1450 |
| Dimension(length*width*height) | mm | 565*305*610 | 800*500*1000 | 1050*680*1325 | 1150*755*1425 |
| Weight(excluding the motor) | kg | 18 | 65 | 158 | 224 |
| Packing size | mm | 556*271* 285 | 635*565* 455 | 870*670* 658 | 970*670* 750 |
| quantity per 20"container(without motor) | set | 824 | 220 | 104 | 60 |
| quantity per 20"container(with e-motor) | set | 576 | 155 | 72 | 49 |
