Home > Products > New Products > Electric scissor lifter with 6m lifting height ,EG6060J, CE approved

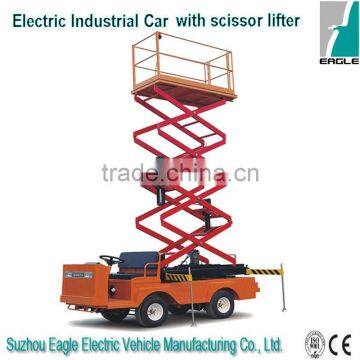

Electric scissor lifter with 6m lifting height ,EG6060J, CE approved
- Shanghai
- T/T
You May Like
-
waste collection truck, electric, small size, EG6020X, CE approved, brand new
-
China small electric vehicle on sale
-
buggies street legal, 2 passengers with rear cargo box, EG6043KR-01,brand new
-
street legal golf trolley with seats and long cargo box, EG2048HCXR
-
Street legal electric car with cargo box, EG2048HR
-
road legal electric buggy , EG2028HR
Product Details
Certification | CE |
Product Description
Item | Description |
Controller | Curtis controller, 275A, imported from USA directly |
Motor | Rated power 3KW (4.08HP) DC motor, Chinese brand |
Battery | Trojan battery, T105+, imported from USA directly |
Charger | 48V high frequence onboard charger (input 90V-265V, 47-63HZ, output 48V/22A) |
Item | Description |
Passenger Capacity | 2 |
Range (loaded) (km)* | up to 60 |
Max.speed (km/h) | up to 35 |
Min.turning radius (m) | 4.3 |
Max.climbing ability(loaded) | up to 20% |
Max.lifting height (m) | 6 |
Max. movement after brake at speed of 20km/h | ≤4m |
Max.lifting weight (kgs) | 300 |
Charging time (hour) | 8-10 |
Battery lifespan (cycles) | 750 |
* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
2) Range will vary depending on temperature, grade, payload and driving style.
Item | Description |
Overall dimensions (mm) | 3415x1390x1200 (LxWxH) |
Rear cargo bed dimensions (mm) | 2110x1370x260 (LxWxH) |
Min.ground clearance (mm) | 160 |
Wheelbase (mm) | 1730 |
Front wheel tread (mm) | 1210 |
Rear wheel tread (mm) | 1200 |
Item | Description |
Frame & Chassis | Welded steel framework with sand blasting and painting |
Body | Steel plate |
Seat | Reborn sponge with artificial leather, with steel armrest |
Floor | Bamboo floor with Skidproof leather |
Rear scissor lifter | Hydraulic lifting |
Beverage holders | 1 cups holders |
Side rear view mirror | 2pcs, one long-arm mirror and one small mirror |
Item | Description |
Lights | 12V, headlight (H/L beam), front turning light, Rear taillight (brake light and rear turing light) |
Horn | Electric horn, 12V |
Reverse buzzer | Electric, 12V |
Combination switch | |
DC/DC converter | 48V/12V |
Digital Meter | with Current meter, voltometer, speedometer and various indicators |
Item | Description |
Steering System | Single-stage rack and pinion steering system, with automatic compensation function |
Brake System | 4-wheel hydraulic drum brake with hand park brake |
Accelerator | Resistance type, stepless speed change |
Front suspension | Independent suspension |
Rear suspension | integrated rear end, steel plate spring suspension, cylinder hydraulic vibration absorber |
Transmission system | Clutch, 4F+1R gear box, transmission shaft |
Wheel & Tyre | 4J*12 steel rim, 155R12C 8PR tyre, with wheel cover |
To increase the sales value of our vehicles, we also provide many optional accessories.
Item | Option description |
1 | 2-point seatbelt |
2 | Side mirror |
3 | Battery watering pipe |
4 | Water pump (handle) |
5 | Cabin with Canvas roof with windshield |
Container loading qty | Semi-knock-down | Refer Picture |
20'ft GP | 1 | |
40'ft GP | 3 | |
40'HQ | 3 |
- Customization is available
- 13 months warranty from shipping date
- FOC spare parts provided
Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd. was founded 1999, and it's a leading manufacturer specialized in designing and manufacturing 4-wheel electric vehicles, includes: electric golf cart, electric utility car, electric personal carrier, electric shuttle bus, electric industrial car, various customized electric vehicles based on standard ones, etc.. It has a workshop area of 20,000 square meters with 2 assembly lines inside. Its daily production capacity is 80 units per day; this can be adjusted with the order volume increasing. It has around 300 workers including 50 engineers in R&D department and 15 engineers in QC department.
Suzhou Eagle takes quality as its lifeline. Eagle invests a lot to make production moulds, jigs and checking moulds to ensure precise component parts. Eagle invests a lot on checking machines like Salt spray test equipment for anti-rust ability, Rockwell hardness tester, Three-coordinate shock test-bed, Life test equipment, etc. to ensure component parts are produced and treated correctly. Eagle chooses the most top quality key component parts (Battery, Controller) to ensure the performance of its vehicles. In all, Eagle follows International Quality Standard to produce, control and inspect its electric vehicles. Hence, Eagle was awarded ISO9001-2000 Certificate in 2003 and Certificate of WMI Code (L4F) in 2006.
Eagle people believe good service has the same importance as good quality. Eagle’s sales persons can be reached in 24 hours x 365 days. Eagle’s sales persons are willing to answer any emails from their customers within 24 hours. Eagle provides all the spare parts (Except battery) of its vehicles.
With effective management and specialized talents, Suzhou Eagle is dedicated to offering top quality products with competitive price and first class after-sales service.
