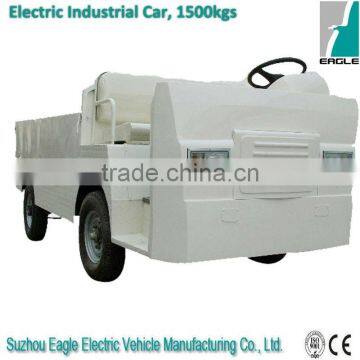

electric Industrial utility vehicle for1500kgs loading weight, EG6030H
- Shanghai
- T/T
You May Like
-
airport electric car, 800kgs loading capacity, EG6021H, brand new
-
2 seat small golf cart in 2015
-
hotel room service cart, electric, big dining box, EG6088T,brand new , CE approved
-
2015 electric electric bus 8 seat
-
2 seater with a rear al rear cargo box utility golf carts
-
Red color Electric fire truck
Product Details
Seats | 1 - 2 | Fuel Type | Electric | |
Battery Voltage | Other | Certification | CE |
Product Description
EG6030H, industrial utility vehicles, battery powered, 1500kgs loading capacity, steel body,48V system, 5KW motor, with gear box and clutch
Item | Description |
Controller | Curtis controller, 275A-400A, imported from USA directly |
Motor | Rated power 5KW (6.8HP)DC motor, Chinese brand |
Battery | Trojan battery, T105+, imported from USA directly |
Charger | 48V high frequence onboard charger (input 90V-265V, 47-63HZ, output 48V/22A) |
Item | Description |
Passenger Capacity | 2 |
Range (loaded) (km)* | up to 50 |
Max.speed (km/h) | up to 40 |
Min.turning radius (m) | 4.3 |
Max.climbing ability(loaded) | up to 20% |
Max. movement after brake at speed of 20km/h | ≤4m |
Max.loading weight (kgs) | 1500 |
Charging time (hour) | 8-10 |
Battery lifespan (cycles) | 750 |
* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
2) Range will vary depending on temperature, grade, payload and driving style.
Item | Description |
Overall dimensions (mm) | 3475x1390x1300 (LxWxH) |
Rear cargo bed dimensions (mm) | 2240x1370x260 (LxWxH) |
Min.ground clearance (mm) | 170 |
Wheelbase (mm) | 1920 |
Front wheel tread (mm) | 1240 |
Rear wheel tread (mm) | 1240 |
Item | Description |
Frame & Chassis | Welded steel framework with sand blasting and painting |
Body | Steel plate |
Seat | Reborn sponge with artificial leather, with steel armrest |
Floor | Bamboo floor with Skidproof leather |
Rear cargo bed | Steel side fender, rear foldable fender, bottom board with plywood+ galvanized steel plate on the top |
Beverage holders | 1 cups holders |
Side rear view mirror | 2pcs, one long-arm mirror and one small mirror |
Item | Description |
Lights | 12V, headlight (H/L beam), front turning light, Rear taillight (brake light and rear turing light) |
Horn | Electric horn, 12V |
Reverse buzzer | Electric, 12V |
Combination switch | |
DC/DC converter | 48V/12V |
Digital Meter | with Current meter, voltometer, speedometer and various indicators |
Item | Description |
Steering System | Recirculating ball-type steering gear |
Brake System | 4-wheel hydraulic drum brake with hand park brake |
Accelerator | Resistance type, stepless speed change |
Front suspension | non-independent suspension, cylinder hydraulic vibration absorber and leaf spring |
Rear suspension | integrated rear end, steel plate spring suspension, cylinder hydraulic vibration absorber |
Transmission system | Clutch, 4F+1R gear box, transmission shaft |
Wheel & Tyre | 12*3.00D steel rim, 5.00-12 tyre |
To increase the sales value of our vehicles, we also provide many optional accessories.
Item | Option description |
1 | 2-point seatbelt |
2 | Side mirror |
3 | Battery watering pipe |
4 | Water pump (handle) |
5 | Cabin with Canvas roof with windshield |
Container loading qty | Semi-knock-down | Refer Picture |
20'ft GP | 1 | |
40'ft GP | 2 | |
40'HQ | 2 |
- Customization is available
- 13 months warranty from shipping date
- FOC spare parts provided
Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd. was founded 1999, and it's a leading manufacturer specialized in designing and manufacturing 4-wheel electric vehicles, includes: electric golf cart, electric utility car, electric personal carrier, electric shuttle bus, electric industrial car, various customized electric vehicles based on standard ones, etc.. It has a workshop area of 20,000 square meters with 2 assembly lines inside. Its daily production capacity is 80 units per day; this can be adjusted with the order volume increasing. It has around 300 workers including 50 engineers in R&D department and 15 engineers in QC department.
Suzhou Eagle takes quality as its lifeline. Eagle invests a lot to make production moulds, jigs and checking moulds to ensure precise component parts. Eagle invests a lot on checking machines like Salt spray test equipment for anti-rust ability, Rockwell hardness tester, Three-coordinate shock test-bed, Life test equipment, etc. to ensure component parts are produced and treated correctly. Eagle chooses the most top quality key component parts (Battery, Controller) to ensure the performance of its vehicles. In all, Eagle follows International Quality Standard to produce, control and inspect its electric vehicles. Hence, Eagle was awarded ISO9001-2000 Certificate in 2003 and Certificate of WMI Code (L4F) in 2006.
Eagle people believe good service has the same importance as good quality. Eagle’s sales persons can be reached in 24 hours x 365 days. Eagle’s sales persons are willing to answer any emails from their customers within 24 hours. Eagle provides all the spare parts (Except battery) of its vehicles.
With effective management and specialized talents, Suzhou Eagle is dedicated to offering top quality products with competitive price and first class after-sales service.
