Home > Products > Electric Industrial truck > Electric Garbage Truck with tail gate tipper, 1000kgs loading weight, simple enclosed cab, EG6023XA1

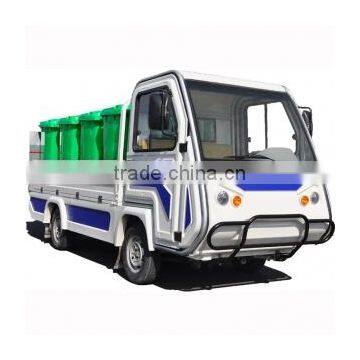

Electric Garbage Truck with tail gate tipper, 1000kgs loading weight, simple enclosed cab, EG6023XA1
Negotiable
/ Unit
1 Unit(Min.Order)
- Shanghai
- T/T
You May Like
Product Details
| Seats | 1 - 2 | Fuel Type | Electric | |
| Battery Voltage | 48V | Certification | CE |
Product Description
Key Components
| Item | Description |
| Controller | Curtis controller, 400A, imported from USA directly |
| Motor | Rated power 5KW (6.8HP)DC motor |
| Battery | Trojan battery, 12pcs T105+, imported from USA directly |
| Charger | 2V transformed charger, input 110V-240V, 50-60HZ,output 72V/25A |
Performance
| Item | Description |
| Passenger Capacity | 2 |
Range (loaded) (km)* | up to 100 |
| Max.speed (km/h) | up to 30 |
| Min.turning radius (m) | N/A |
| Max.climbing ability(loaded) | up to 15% |
| Max. movement after brake at speed of 20km/h | 4m |
| Max.loading weight (kgs) | 1000 |
| Charging time (hour) | 8-10 |
| Battery lifespan (cycles) | 750 |
* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
2) Range will vary depending on temperature, grade, payload and driving style.
Dimensions
| Item | Description |
| Overall dimensions (mm) | 4200x1500x2150 (LxWxH) |
| Rear cargo bed dimensions (mm) | N/A (LxWxH) |
| Min.ground clearance (mm) | 150 |
| Wheelbase (mm) | 2370 |
| Front wheel tread (mm) | 1220 |
| Rear wheel tread (mm) | 1220 |
Body and Frame
| Item | Description |
| Frame & Chassis | Welded steel framework with sand blasting and painting |
| Cabin | Steel frame with plastic cover sheet and glass window |
| Front windshield | Laminated glass with wiper |
| Seat | Reborn sponge with artificial leather, highback |
| Floor | Skidproof leather |
| Rear cargo bed | Steel side fender, rear foldable fender |
| Side rear view mirror | 2pcs, manual adjustable |
Electric System
| Item | Description |
| Lights | 12V, headlight, front turning light, Rear taillight (brake light and rear turing light) |
| Horn | Electric horn, 12V |
| Reverse buzzer | Electric, 12V |
| Combination switch | |
| DC/DC converter | 72V/12V |
| Audio system | Radio with MP3 receiver, with two waterproof speaker |
| Digital Meter | with Current meter, voltometer, speedometer and various indicators |
Steering & suspersion
| Item | Description |
| Steering System | Rack and pinion steering system with automatic compensation function,with EPS |
| Brake System | 4-wheel hydraulic drum brake with hand park brake |
| Rear tipper | Hydraulic |
| Accelerator | Resistance type, stepless speed change |
| Front suspension | Fron independent suspension |
| Rear suspension | integrated rear end, steel plate spring suspension, cylinder hydraulic vibration absorber |
| Transmission system | Stepless spee change system, gear ratio 12.49:1 |
| Wheel & Tyre | 155R12C 8PR tubeless tire, 4J*12 steel rim |
Option Accessories
To increase the sales value of our electric garbage truck, we also provide many optional accessories.
| Item | Option description |
| 1 | Brake with vacuum booster |
| 2 | Inner rear view mirror |
| 3 | Battery watering pipe |
| 4 | Water pump (handle) |
| 5 | 2-point seatbelt |
| 6 | Emergency stop button |
| 7 | Warning light |
| 8 | Plastic doors with steel frame and glass window |
Color Options
| Item | Pure white | Pure black | Pearl red |
Body | |||
| Lake green | Industrial Yellow | Pearl White | |
Packing & Shipping
Electric mini truck will be packed in container assembly
| Container loading qty | Assembled | Refer Picture |
| 20'ft GP | 1 | |
| 40'ft GP | 2 | |
| 40'HQ | 2 |
Warranty
All electric garbage trucks sold by us are quality guaranteed.
We provide 13 months warranty to our electric garbage truck from the shipping date.
