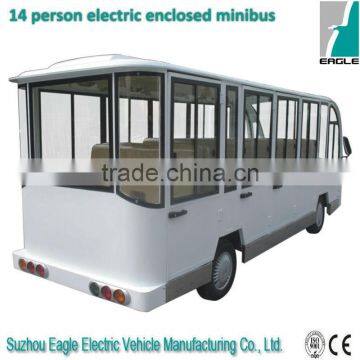

Electric closed bus, 14 seater, CE approved
Negotiable
/ Unit
1 Unit(Min. Order)
- Shanghai
- T/T
You May Like
-
Electric enclosed sightseeing bus, 11 seater, CE approved
-
11 seater Electric enclosed sightseeing car , CE approved
-
Electric enclosed shuttle bus, 8 seater, CE approved
-
14 seat sightseeing electric mini bus
-
Electric Closed Passenger Car, EG6043KF , 4 seats, CE approved electric golf car with solar panel
-
2 person electric car for patrol, electric patrol car EG6023K
Product Details
| Power | Electric | Place of Origin | Jiangsu, China | |
| Brand Name | Eagle | Model Number | EG6158KF |
Product Description
Electric closed bus, 14 seater, CE approved
Product Description
| Model | EG6158KF | EG6158KF01 | EG6158KF02 | EG6158KF09 | EG6158KF10 |
| System | 72V/5KW Series | 48V/5KW Series | 48V/5KW Sepex | 72V/7.5KW AC system | 72V/7.5KW AC system |
| Key Components | |||||
| Battery | 12xT105(185Ah@5hr rate) | 16xT105(185Ah@5hr rate) | 16xT105(185Ah@5hr rate) | 12xT105(185Ah@5hr rate) | 12xT105(185Ah@5hr rate) |
| Motor | 5KW Chinese motor for 60minutes | 5KW Chinese motor for 60minutes | 5KW Chinese motor for 60minutes | 72V/7.5KW AC system | 7.5KW Chinese motor |
| Controller | Curtis 1209 (400A@2minutes) | Curtis 1205 (350A@2minutes) | Curtis 1244 (400A@2minutes) | Zapi AC2(400A@2minute) | Zapi AC2(400A@2minute) |
| Performance | |||||
| Passenger capacity | 14 | 14 | 14 | 14 | 14 |
| Range (loaded) based on flat road at a speed of 20km/h (km)* | >75 | >90 | >90 | >105 | >100 |
| Max. speed (km/h) | 48 | 40 | 40 | 35 | 50 |
| Minimum turning radius (m) | 5.35 | 5.35 | 5.35 | 5.35 | 5.35 |
| Max. climbing ability (loaded) | 20% | 20% | 20% | 15% | 20% |
| Max. movement after brake at speed of 20km/h | ≤4m | ≤4m | ≤4m | ≤4m | ≤4m |
| Max. loading weight | 1120kgs | 1120kgs | 1120kgs | 1120kgs | 1120kgs |
| Net weight | 1270kgs | 1390kgs | 1390kgs | 1239kgs | 1259kgs |
| Dimensions | |||||
| Overall dimensions (mm) | 5000x1490x2050 | ||||
| Min. ground clearance (mm) | 135 | ||||
| Wheelbase (mm) | 2710 | ||||
| Front wheel tread (mm) | 1222 | ||||
| Rear wheel tread (mm) | 1185 | ||||
| Detailed Configurations: ("S" stands for Standard configuration and "O" stands for Optional configuration) | |||||
| Body and Frame | |||||
| Frame | Welded steel framework with sand blasting+paint treatment | ||||
| Body | Fibreglass | ||||
| Roof | Fibreglass+aluminum frame, with roof handle | ||||
| Windshield | Laminated glass | ||||
| 2point seat belt | 10pcs | ||||
| 2point seat belt | 14 pcs | ||||
| Large Seats: | |||||
| 1) backrest and cushion | Sponge + artificial leather | ||||
| 2) armrest | Aluminum | ||||
| Floor | Bamboo + artificial leather | ||||
| Cup drinker holder | 1pc | ||||
| Inner rear view mirror | One piece per cart in the middle of the windshield | ||||
| Side rear view mirror | Two pieces per cart | ||||
| Battery watering system,48V system | without water supply tool | ||||
| Battery watering system,72V system | without water supply tool | ||||
| Manual Pump | water supply tool (other water supply tools are available) | ||||
| Emergency power-off button | / | ||||
| Police lights with the loud speaker | / | ||||
| Solar panel | 48V 185W | ||||
| 72V 270W | |||||
| Electric system | |||||
| Lighting system and horn | Front: 2 Headlights (High beam and dipped headlight), 2 front turn signals, 2 fog lights; Back: 2 rear turn signals, 2 taillights(position light & brake light), 1 fog light, 1 reverse light),with DC-DC converter (converting from 48V to 12V) , horn. | ||||
| License plate light | 12V | ||||
| Dashboard | Voltameter, ammeter, speedometer, turn signal indicator, headlight indicator, emergency switch, fog light switch; Headlight switch, turn signal switch, wiper switch, horn button; | ||||
| Audio System | Radio and MP3 receiver | ||||
| CD player to replace MP3 receiver | |||||
| Microphone | Wired | ||||
| Speaker | 4pcs | ||||
| Reversing alarm | |||||
| Switch assembly | Lights switch, horn switch, wiper switch | ||||
| Wiper | 12V | ||||
| with water sprayer | |||||
| Charger | China origin, input 110V-240V~50Hz-60Hz, output 48V, 25A | ||||
| Steering and Suspension | |||||
| Steering system | Single-stage rack and pinion steering system, automatic rocker compensating function | ||||
| Right Hand Drive system | |||||
| Electrical power steering | With two extra DC/DC | ||||
| Brake system | Four wheel hydraulic drum brake+hand parking brake | ||||
| Front disc brake and rear drum brake, with vacuum booster | |||||
| Transmission system | Clutch, 4F+1R gear box, transmission shaft | Automatic drive system (Stepless speed change) | Clutch, 4F+1R gear box, transmission shaft | ||
| Front suspension | Independent suspension, helix spring + shock absorber | ||||
| Rear suspension | rear plate spring + shock absorber | ||||
| Wheel & Tyre | 4J*12 Steel wheel, wheel cap, 155R12,8PR | ||||
| 4J*12 Aluminum wheel, | |||||
Color
Packaging & Shipping
Company Information
Certifications
Our Services
All electric golf carts sold by us are quality guaranteed.
We provide 13 months warranty to our electric vehicles from the shipping date.
