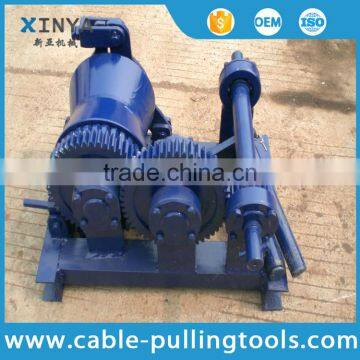

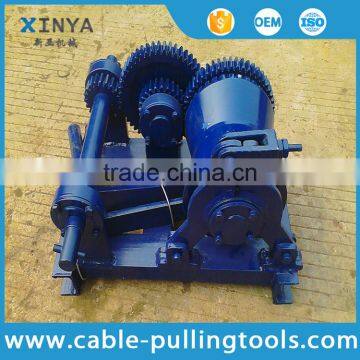

Hand Crank Strap Winch
US$ 1 - 100
/ Set
5 Sets(Min. Order)
- SHANGHAI
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Stringing Equipment 2 Ton Gasoline Engine Winch Wire Take Up Winch
-
Double Capstan 5T Cable Pulling Winch With Diesel Engine
-
Double Capstan 5T Cable Pulling Winch With Gasoline Engine
-
Winch Manufacturer 8 Ton Diesel Winch Hoist Used for Power Construction
-
Winch Manufacturer 8 Tons Cable Winch Electric Engine for Power Construction
-
Winch Manufacturer 8 Tons Cable Winch HONDA/YAMAHA Engine for Power Construction
Product Details
| Place of Origin | Jiangsu, China | Brand Name | XINYA | |
| Model Number | SJ | Power Source | Hand | |
| Application | Other, power construction, power construction | Capacity | 5KN |
Product Description
Stringing Equipment 2 Ton Gasoline Engine Winch Wire Take Up Winch
Technical Data
| Order Nunber | 10024 | 10025 |
| Model | SJB | SJ5 |
| Rated Pull Force(KN) | 5 | 5 |
| Structure Form | Double Crank Exposed Drive | Single Crank Planetary Gear Drive |
| Drive Ratio | 1:5 | 1:20 |
| Fixed Form | Cylindrical pole≤Φ250mm | Cylindrical pole≤Φ400mm Angle iron≥∠63 |
| Drum bottom of groove diameter(mm) | Φ120 | Φ135 |
| Weight(kg) | 20 | 23 |
Please tell us the following information in your enquiry:
1. Engine Power ?
2. Pulling Speed(m/min) ?
3. Pulling capacity?
4. Quantity?
we'll give you a good price after confirming the above info.
Welcome to contact us by phone or e-mail, if you are interesting in our products.
