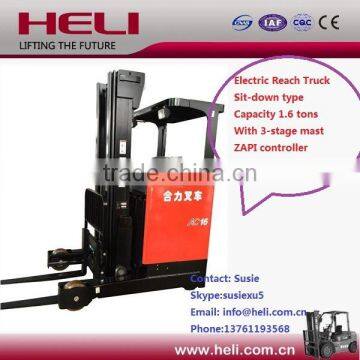

Electric Reach Truck HELI Brand 1.6 tons
- SHANGHAI
- T/T Credit Card
You May Like
Product Details
| Condition | New | Place of Origin | Qinghai, China | |
| Brand Name | HELI BRAND | Model Number | CQD16 | |
| Type | Other, COUNTER BALANCED FORKLIFT | Power Souce | AC Motor | |
| Rated Loading Capacity | 1600kg | Max. Lifting Height | 4250mm ( Optional ) | |
| Min. Lifting Height | 95mm | Fork Length | 1070mm | |
| Fork Width | 100mm | Overall Dimensions | 1800*1120*2210mm | |
| Certification | ISO9001,ISO14001,OHASA18001,CE | After-sales Service Provided | No overseas service provided |
Product Description
Performance:
| Features | ||
| Manufacturer | Heli | |
| Model | CQD16 | |
| Configuration number | GA2S | |
| Load capacity | kg | 1600 |
| Load center | mm | 600 |
| Power type | Battery | |
| Driving style | Sit-down | |
| Wheelbase | mm | 1425 |
| Wheel | ||
| Tire type | Polyurethane | |
| Number of tires.driven wheel/bearing wheel (x= driven wheels) | 1x/2 | |
| Wheelbase (driven wheel ) | null | |
| Wheelbase (bearing wheel) | mm | 988 |
| Bearing wheel size | mm | 285X108 |
| Driven wheel size | mm | 343X114 |
| Size | ||
| Standard mast ift height | mm | 4250 |
| Free lift height | mm | 1370 |
| Fork size, thinckness/width/legnth | mm | 45x100x1070 |
| Length (the distance frin the rear frame to backrest) | mm | 1383 |
| Length(without forks ) | mm | 1800 |
| Body width/outside leg width | mm | 1120/1148 |
| Forward distance | mm | 500 |
| Leg length | mm | 300 |
| Lowered mast height | mm | 2090 |
| Maximum height of mast operation | mm | 5335 |
| Overhead guard height | mm | 2210 |
| Seat height | mm | 1015 |
| Minimum ground clearance(wheelbase midpoint) | mm | 95 |
| Turning radius | mm | 1700 |
| Distance from fork front end face to bearing wheel center | mm | 252 |
| Width of right-angle stacking pallets 1000Lx1200W,gap200 | mm | 2650 |
| Width of right-angle stacking pallets 1200Lx1200W,gap200 | mm | 2850 |
| Fork width adjustment | mm | 200~680 |
| Performance | ||
| Travelling speed,with/without load | km/h | 10/11 |
| Lifting speed, with/without load | m/s | 0.33/0.44 |
| Desending speed, with/without load | m/s | 0.5/0.5 |
| Forward speed, with/without load | m/s | 0.11/0.11 |
| Maximum gradability,with/without load | % | 10/15 |
| Acceleration time, with/without load | s | 5.3/5.8 |
| Weight | ||
| Vehicle weight (including battery ) | kg | 3450 |
| Without load, driven wheel/bearing wheel | kg | 1970/1480 |
| Full load, driven wheel/bearing wheel (fork forward ) | kg | 620/4430 |
| Full load, drieven wheel /bearing wheel (fork backwward) | kg | 1650/3400 |
| Battery | ||
| Battery voltage/rated capacity ( 5 hou discharge) | 500Ah/48V | |
| Battery weight | 920 | |
| Battery Box Size | 974X404X750 | |
| Motor and Control | ||
| Dirve motor power | kw | 5.5 |
| Lifting motor power | kw | 11.5 |
| Steering motor power | kw | 0.6 |
| Dirve control | MOSEET/AC | |
| Lift control | MOSFET/AC | |
| Steering control | MOSFET/AC | |
| Brake | Hydraulic/Electric | |
| Hydraulic system working pressure | Mpa | 14.5 |
Detail photos:
HELI Company Culture Show:
Parts Supply Including:
1.Genuine parts from the source parts manufacturer for China HELI brand forklift spare parts.
2.Chinese made forklift like counterbalanced forklift , electric battery pallet truck, electric
carrier stacker,Hydraulic system forklift, diesel forklift and so on.
(1) IN GENRAL, WE DELIVERY BT SEA, TO MAIN COUNTRIESE INCLUDING SOUTH AMERICA, AFRICA,
OCEANIA AND EUROPE ETC.
(2) FOR NEIGHBOURHOOD CUNTRIES OF CHINA, INCLUDING KAZAKHSTAN,UZBEKISTAN ETC. WE CAN SHIP
BY ROAD OR RAILWAY.
(3) FOR SOME SPARE PARTS URGENTLY, WE USUALLY DELIVERY BY INTERNATIONAL COURIER SERVICE SUCH
AS DHL, TNT, UPS AND SO ON.
SHANGHAI HELI FORKLIFT TRUCK CO.,LTD IS ONE HOLDING COMPANY OF ANHUI HELI CO.,LTD,FOUNDED IN 2001, IT IS MAINLY ENGAGED IN R&D AND MANUFACTURING OF INDUSTRIAL VEHICLES, CONSTRUCTION NACHINERY AND KEY COMPONENTS, AND OUR FACTORY IS IN ANHUI HELI, AT PRESENT, ITS THE EXPORT BASE OF INDUSTRIAL VEHICLES WIITH LARGEST SCALE, THE MOST COMPLETE INDUSTRY CHAIN, AND THE BEST COMPREHENSIVE AND ECONOMIC PERFORMANCE IN CHINA, IT OWENS A NATIONAL-LEVEL "ENTERPRISE TECHNICAL CENTRE" AND IT HAS BEEN AWARDED AS :NATIONAL INNOVATIVE ENTERPRISE ","STATE-HIGH-TECH ENTERPRISE IN NATIONAL TORCH PROJECT"."HELI' TRADEMARK IS THE "WELL KNOWN TRADEMARK OF CHINA".
