Crawler Excavator
Negotiable
/ Set
1 Set(Min. Order)
- China port
- T/T Credit Card PayPal
You May Like
Product Details
| Brand Name | TIMAC | Model Number | EXCAVATOR 330E | |
| Condition | New | Moving Type | Crawler Excavator | |
| Operating Weight | 33400kg | Bucket capacity | 1.45M3 | |
| Maximum Digging Height | 10390mm | Maximum Digging Depth | 7490mm | |
| Machine Weight | 33400kg | Max Digging Radius | 11220mm |
Product Description

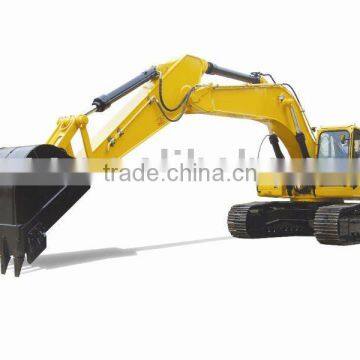

Crawler Excavator
| DESCRIPTION | SPECIFICATON | |
| MODEL | EXCAVATOR 330E | |
| Working weight | 33400kg | |
| Bucket capacity | 1.45M3 | |
| Track width | 600mm | |
| Transport dimension | 11250*3190*3430(mm) | |
| Overall dimension | Length of track on ground | 3730mm |
| Ground clearance of counter weight | 1180mm | |
| Tail swing radius | 3430mm | |
| Total length | 11250mm | |
| Total height | 3430mm | |
| Total width | 3190mm | |
| Track gauge | 2590mm | |
| Min. ground clearance | 540mm | |
| Track width | 600mm | |
| Track height | 1040mm | |
| Working range | Max. working radius | 11220mm |
| Max. digging depth | 7490mm | |
| Max. vertical digging depth | 6520mm | |
| Max. digging height | 10390mm | |
| Max. dumping height | 7320mm | |
| Min. swing radius | 4295mm | |
| Performance | Ground pressure | 68.5Kpa |
| Swing speed | 11r/min | |
| Travelling speed high/low | 4.5/3.1km/h | |
| Grade ability | 35° | |
| Noise inside the cab | ≤80db(A) | |
| Fuel tank | 545L | |
| Engine | Company | Cummins C8.3(6CTAA) |
| Type | 6 cylinder, inline, turbocharged | |
| Rated horsepower | 168KW/2000rpm | |
| Bore-stroke | 114*134.9mm | |
| Displacement | 8.29L | |
| Min. fuel consumption | ≤228g/kw.h | |
| Max. torque /revolution | 975Nm/1400rpm | |
| Main hydraulic pump | Company | KAWASAKI |
| Type | K3V140DT-1CMR-9N2P | |
| Rated pressure | 34.3Mpa | |
| Max. delivery | 271*2L/min | |
| Pump type | 2*variable flow axial piston pump+1 gear pump | |
| Method of power adjustment | Gross power adjustment + variable power + negative flow control | |
| Swing | Company | KAWASAKI |
| motor | Type | M5X180CHB-10A-20A/260-RG16S21D18A-140 |
| Rated pressure | 25.5Mpa | |
| Max. delivery | 180.1cc/rev | |
| Travel motor | Company | JAPAN NEBTESCO |
| Type | GM60VA | |
| Rated pressure | 35.0MPa | |
| Max. delivery | 290.7/170.1cc/rev | |
| The pressure of hydraulic control system | Working part | 31.4Mpa |
| Traveling part | 31.4Mpa | |
| Hydraulic oil tank | 210L | |
| Hydraulic oil filter | Double filter in the tank | |
| Swing system | Swing speed | 11RPM |
| Type | constant closed disc type brake with buffer function | |
| Chassis system | Track feature | three grouser, grease tension |
| Track rollers and carrier rollers | Floating sealing | |
| Quantity | 2 carrier rollers and 9 track rollers | |
| Brake type | Hydraulic brake | |
| Working equipment | Arm length | 6450mm |
| Rod length | 3000mm | |
| Bucket digging force | ≥185KN | |
| Rod crowed force | ≥160KN | |
| Driving cab | Cab | Imported cab, SAE certificate |
| Air-conditioner | Jiangsu chuang dao | |
| Seat | Direction adjustment | |
| Instrument panel | hour meter, engine revolution, oil temperature, water temperature, oil pressure. | |
| Electric | Power | 24V |
| instrument | Company | XUZHOU KANG DA |
| Battery | VARTA 160A.H | |
| Standard equipment | Engine | Cummins C8.3(6CTA) |
| Hydraulic pump | KAWASAKI | |
| Control valve | KAWASAKI | |
| Swing motor | KAWASAKI | |
| Travel motor | JAPAN NEBTESCO | |
| Cylinder | HENG LI | |
| Electrical Instrument | Imported | |
| Driving cab | Luxury | |
| Seat | Grammer | |
| Painting | NIPPON |
