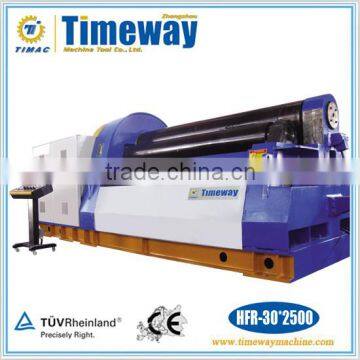

CNC Four Roller Hydraulic Plate Rolling Machine with Pre-Bending (HFR-30*2500)
- China Port
- T/T
You May Like
-
CNC Small Size Upper Roller Universal Three Roller Plate Rolling Machine with Pre-Bending
-
CNC Vertical Full Hydraulic Pipe and Tube Profile Bending Machine with Arc Adjustable(HW-180)
-
Special Use NC Hydraulic Three Roller Plate Rolling Machine for Ships Building or Trailer
-
PLC Control Hydraulic Arc Down-Adjusting Three Roller Plate Bending Machine
-
CNC Sheet Metal Bending Machine / CNC Press Brake
-
WC67Y series Hydraulic Sheet Metal Bending Machine
Product Details
| Condition | New | Brand Name | TIMAC | |
| Model Number | HFR-30*2500 | Machine Type | Other, Coiling bending machine, Roll forming machine, Roller-bending machine | |
| Raw Material | Sheet / Plate Rolling | Material / Metal Processed | Other, All kinds of steel sheet | |
| Power | Cnc | Automation | Other, Semi-automatic | |
| Extra Services | Other, Rolling cone workpiece | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
CNC Four Roller Hydraulic Plate Rolling Machine with Pre-Bending
HFR-25*2000 HFR-30*2500 HFR-100*3000
Features:
This machine adopts the four-rollers structure with the upper roller as the main drive, providing the plates bending with torque through the engagement between the gear of the moderator and the gear of the upper roller. The lower roller makes vertical movements and imposes a force on the piston through the hydraulic oil in the hydraulic cylinder so as to clamp the plate tight. Side rollers are arranged on the two sides of the lower roller, and make inclining movement along the guide rail; and provide drive through the screw, the nut, the worm and the lead screw. The advantage of the machine is that the preliminary bending and rolling of the top ends of the plates can be conducted on the same machine.
Technical Parameters of CNC Four-Rollers Rolling Machine
| Model | Max. rolling thickness (mm) | Max. pre-rolling thickness (mm) | Plate width (mm) | Diameter of upper roller (mm) | Main motor power (kw) |
| HFR-25*2000 | 25 | 20 | 2000 | 350 | 22 |
| HFR-25*2500 | 25 | 20 | 2500 | 400 | 37 |
| HFR-30*2000 | 30 | 25 | 2000 | 300 | 37 |
| HFR-30*2500 | 30 | 25 | 2500 | 400 | 37 |
| HFR-30*3000 | 30 | 25 | 3000 | 470 | 45 |
| HFR-40*3000 | 40 | 32 | 3000 | 550 | 55 |
| HFR-50*3000 | 50 | 40 | 3000 | 610 | 55 |
| HFR-60*3000 | 60 | 50 | 3000 | 670 | 75 |
| HFR-70*3000 | 70 | 60 | 3000 | 730 | 75 |
| HFR-80*3000 | 80 | 65 | 3000 | 780 | 90 |
| HFR-90*3000 | 90 | 75 | 3000 | 820 | 90 |
| HFR-100*3000 | 100 | 80 | 3000 | 880 | 110 |
