PLC Control Hydraulic Arc Down-Adjusting Three Roller Plate Bending Machine
- China Port
- T/T
You May Like
-
CNC Sheet Metal Bending Machine / CNC Press Brake
-
WC67Y series Hydraulic Sheet Metal Bending Machine
-
8 Axis CNC Wire Profile Forming Bending Machine
-
PLC Control Hydraulic Horizontal Down-Adjusting Plate Rolling Machine
-
NC Hydraulic Three Roller Symmetrical (Metal Sheet) Plate Rolling Machine
-
Manual or Mechanical or Hydraulic Three Roller Asymmetrical Steel Metal Plate Rolling Machine
Product Details
| Condition | New | Brand Name | TIMAC | |
| Model Number | HTR-12*2000MA | Machine Type | Other, Coiling bending machine, Roll forming machine, Roller-bending machine | |
| Raw Material | Sheet / Plate Rolling | Material / Metal Processed | Other, All kinds of steel sheet | |
| Power | Other, PLC control and Hydraulic | Automation | Other, Semi-automatic | |
| Extra Services | Other, Rolling cone workpiece | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

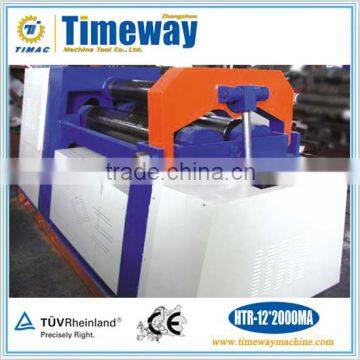

PLC Control Hydraulic Three roller Arc Down-Adjusting
Plate Rolling Machine
HTR-12*2000MA
Features:
1. The upper roller is fixed. The two lowers can move up and down in arc way around fixed roller. It can finish pre-bending and rolling by feeding once.
2. The three rollers are driving-roller. It can prevent skidding while rolling thin steel plate.
3. It's controlled by micro-machine and has digital display, simply operation and high efficiency.
4. With compact structure, it is economical and pratical and fit for rolling thin and medium plate.
Processing Methods:
Rolling Method Ⅰ: Rolling after pre-bending
Rolling Method Ⅱ: Pre-bending after rolling
Technical Parameters
| Specificaitons | Max. thickness (mm) | Max. pre-bending thickness (mm) | Max. width (mm) | Plate yield limit (Mpa) | Full loading min. bending dia.(mm) | Upper roller diameter (mm) | Bottom roller diameter (mm) | Rolling speed (m/min) | Main motor power (kw) |
| HTR-6*2000MA | 6 | 4 | 2000 | 245 | 600 | 220 | 210 | 5.5 | 5.5 |
| HTR-8*2500MA | 8 | 6 | 2500 | 245 | 650 | 240 | 240 | 5 | 11 |
| HTR-12*2000MA | 12 | 8 | 2000 | 245 | 700 | 250 | 250 | 5 | 11 |
| HTR-15*2000MA | 15 | 10 | 2000 | 245 | 700 | 300 | 300 | 5 | 15 |
| HTR-16*2500MA | 16 | 12 | 2500 | 245 | 800 | 330 | 320 | 5 | 18.5 |
| HTR-20*2000MA | 20 | 16 | 2000 | 245 | 800 | 320 | 320 | 4.5 | 22 |
| HTR-20*2500MA | 20 | 16 | 2500 | 245 | 900 | 350 | 340 | 4.5 | 22 |
| HTR-25*2000MA | 25 | 20 | 2000 | 245 | 850 | 330 | 330 | 4.5 | 22 |
| HTR-25*3000MA | 25 | 20 | 3000 | 245 | 1300 | 460 | 460 | 4 | 30 |
| HTR-30*2000MA | 30 | 25 | 2000 | 245 | 1300 | 420 | 420 | 4 | 30 |
| HTR-40*2000MA | 40 | 32 | 2000 | 245 | 1500 | 550 | 550 | 3 | 37 |
Foundation Plan
