Gas Insulated Switchgear - Power Plant HV Switchgear
USD $10,000 - $100,000
/ Set
1 Set(Min.Order)
- 100 Set / Sets per Month
- China Main Port
- T/T
You May Like
-
RN300 Price - NEW TECHNOLOGY - Gasoline + Oxygen - 80% cost price saving - Mini Cutting Torch
-
RN300 Price - Gasoline + Oxygen - 80% cost price saving - Mini Gas Cutting Torch
-
RN300 - CuOxygen - 80% cost price saving - Gas Cutting Torchtting Thickness 300mm - Revolutional Design - Gasoline +
-
RN100 - Cutting Thickness 100mm - Revolutional Design - Gasoline + Oxygen - 80% cost saving - Price Gas Cutting Torch
-
RN100 - Cutting Thickness 30~300mm - Revolution Design - Gasoline + Oxygen - 80% cost saving - Gasoline Cutting Torch
-
Cutting Thickness 30~300mm - Revolution Design - Gasoline + Oxygen - 80% cost saving - Gasoline Cutting Torch
Product Details
| Place of Origin | Beijing, China | Brand Name | BBE | |
| Model Number | ZF4B-126 |
Product Description
Specifications
Power Plant HV Switchgear1. Used for power plant
2. HV 126/145 kv
3. Gas Insulated Switchgear

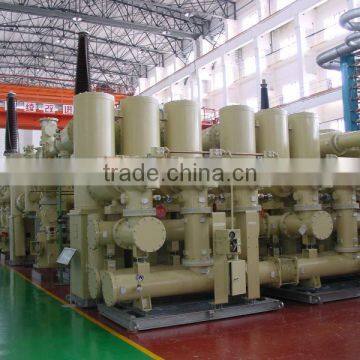

Power Plant HV Switchgear
General Descriptions
Z F4B-126 is type of three busbars in one tank,the bay width is 800mm.The bay installation dimension is 1000(width)
*5000(length) *3000(height). It has the characteristic:high insulation level,big allowance of insulation,and it is the first
product that the full capacity breaking current reaches to 50KA.
Technical Parameters
| Type | ZF4B-126 |
| Rated voltage (kV) | 126/145 |
| Rated current (A) | 1250~3150 |
| Rated short circuit breaking current (kA) | 40 |
| Rated short circuit making current (kA) | 100 |
| Mechanical life (times) | 10000 |
| Bay width (mm) | 800 |
| Operating device | With spring operation device |
| Note | Three phases in one tank |
