Huahong high beneficiation efficiency gold ore mill/grinding gold machine
- Qingdao Shanghai Tianjin Guangzhou or as request
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Henan manufacturer wholesale gulch-gold wet grinding machine
-
Good tungsten ore separator/wet pan mill/grinder
-
Henan manufacturer low price wholesale gold dust wet grinding machine
-
Manganese ore separator/wet pan mill/grinder
-
grinding gold machine in Sudan ,speed reducer,
-
China Supplier Low Price Roller Tyre Gold Grinding Equipment, Gold Wet Pan Mill
Product Details
Condition | New | Type | Other, Wet Pan Mill | |
Production Capacity | 0.8-0.1 t/h | Place of Origin | Henan, China | |
Brand Name | Huahong | Model Number | 1200B | |
Voltage | as request | Power(W) | 4-7.5 kw | |
Dimension(L*W*H) | 1200x200x±20 | Weight | 5.8 t | |
Certification | HACCP; CE; ISO | Warranty | one year | |
After-sales Service Provided | Engineers available to service machinery overseas |
in standard container or as request
Product Description
Huahong high beneficiation efficiency gold ore mill/grinding gold machine
The schematic diagram of the gold ore mill,base on it, we made some improvements through the user' feedback
Gold ore mill introduction
The gold ore mill is a new mill, small investment, high yield, the production cost is low, good benefits.
The gold ore mill is named by the diameter of roller. Φ1300,Φ 1350,Φ 1400,Φ 1500,Φ 1600 is suitable for selection of iron ore, molybdenum ore ,lead ore ,zinc ore, antimony ore and so on. Φ 850, Φ 900, Φ 1000,Φ 1100,Φ 1200 is suitable for selection of gold ore.
As their small investment, high yield, the production cost is low, good benefits, praised by users, domestic alternative to the ball mill equipment. Grind gold machine easy installation and maintenance, small investment, high yield, quick, low-cost production, is the ideal equipment for mine SMEs beneficiation.
Mainly used with gold, silver, lead, zinc, iron, molybdenum, copper, antimony mine, mine, all ball mill can be selected grind gold machine can be used. Characteristics: grind gold through the raw material mixing, rolling, crushing, rolling repeatedly reach moisture equilibrium ratio of uniform, low gas content, improve the forming rate and forming quality, grind the material through the machine molding Products with high density, good strength, no porosity ratio weight. Energy efficient, high volume of output, the product is used for iron ore process tailings recovery, not to slag the loss of effective resources can be fully utilized
Usage and Maintenance of gold ore mill
1. The normal operation of the mill, before they start feeding.
2. This machine prohibit strip start, the outage at boot time, you must first clean up the residual ore in the middle of the milled slot and then start.
3. Should be uniform feeding not erratic, it is best to use the feeder.
4. Bearing frequent butter, gear box or car rear axle with frequent checks whether the loss of gear oil.
5. Regular checks of the various parts of the screw is loose.
6. Found bearing damage must be promptly replaced, shaft eccentric avoid damage to other parts
7. Mill runtime to pay attention to that the reducer or bearing part of the presence or absence of abnormal sound, whether the temperature is too high, the motor current is too large irregularities; should be shut down immediately if the above phenomenon, exclude.
8. Machine maintenance, to ensure safety, you must remove the motor belt.

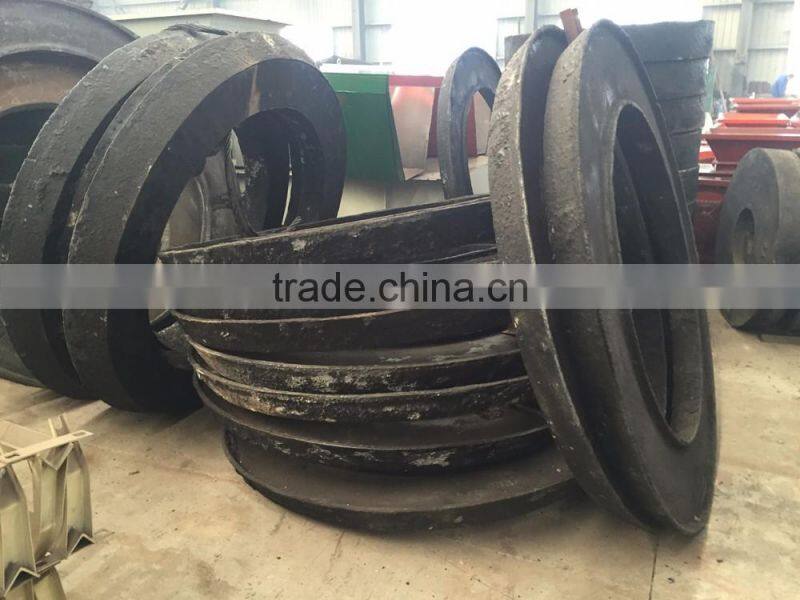

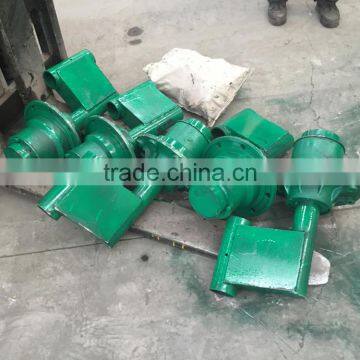

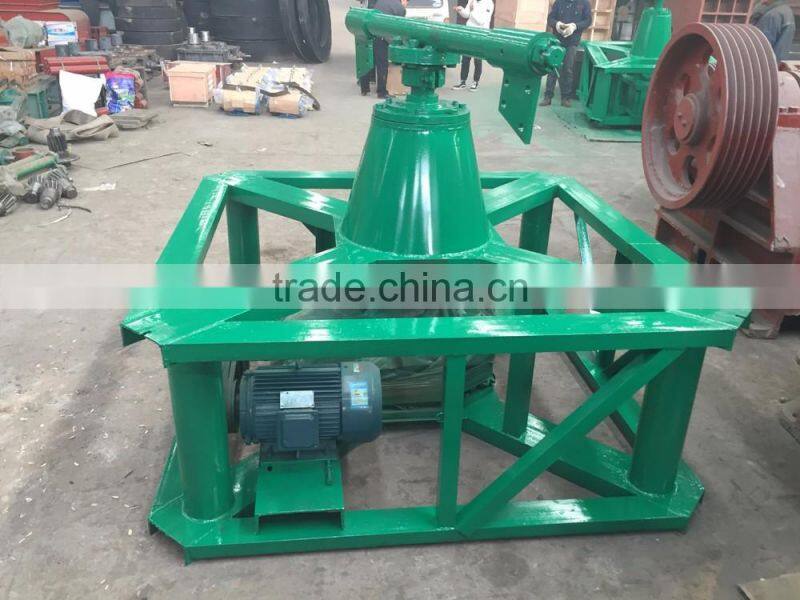

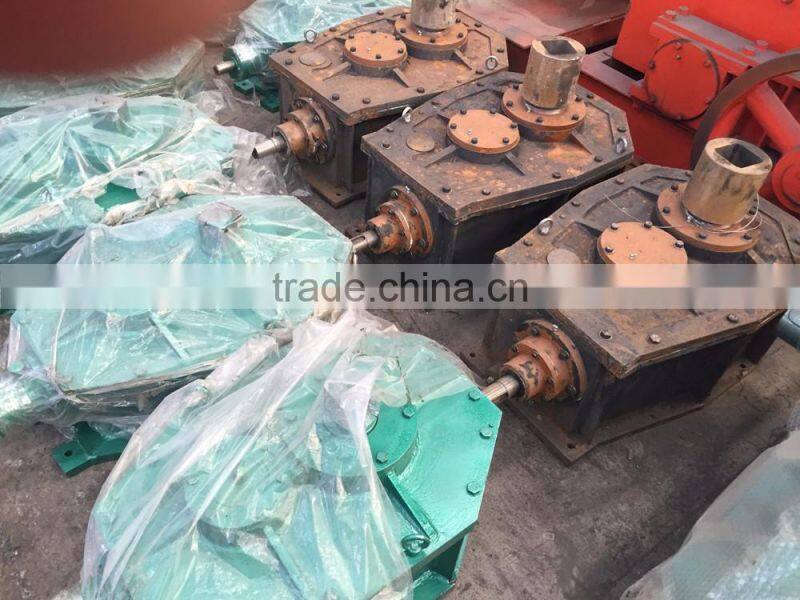

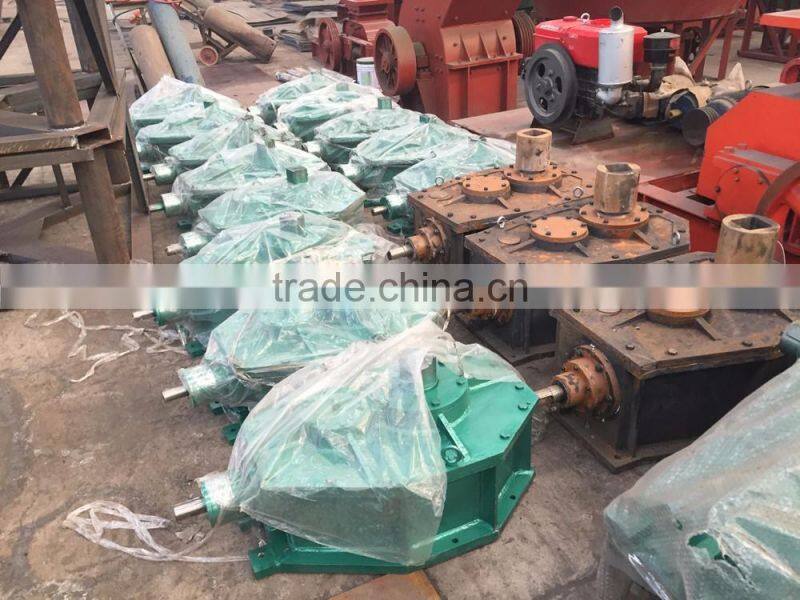

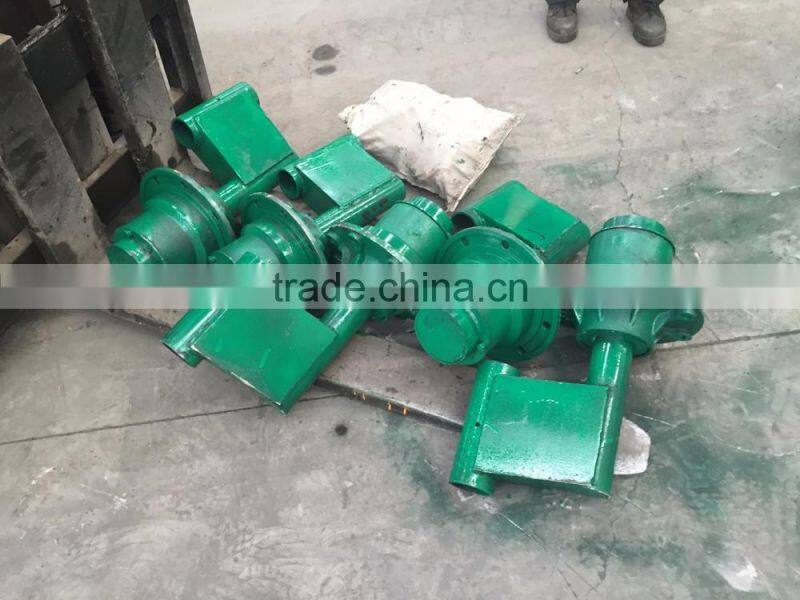

Some Detailed Pictures of gold ore mill
Features of gold ore mill
1, The recovery rate is as high as 96-97%, enrichment ratio can be as high as 1000 times.
2, Small model, portable, easy to operate.
3,Several types can be combined together, the product has been serialized, pedal, engine transmission type, communication and electric type, if the pebbles in the river is a lot, it can be equipped with electric vibration sieve machine, to remove large pieces of rock.
4, If the silt content is exorbitant, feed and classifying in advance,the more uniform the grading, the better the dressing results.

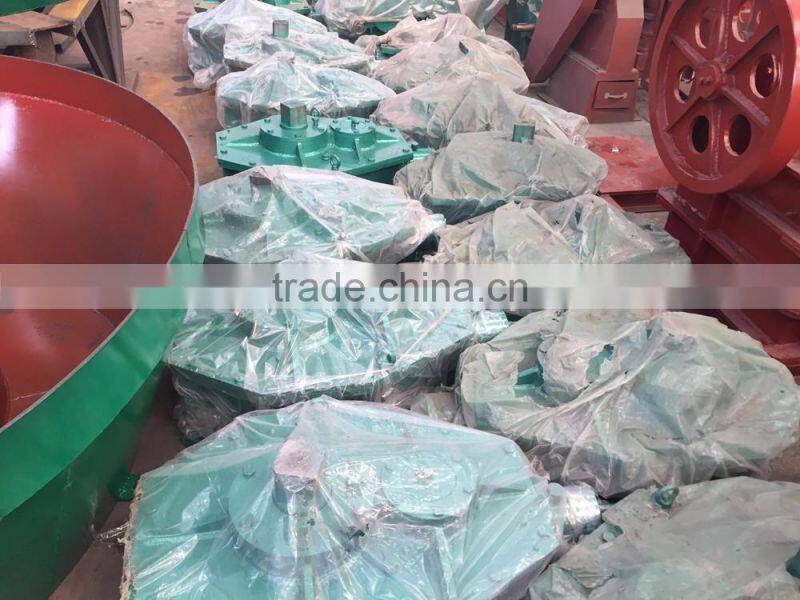

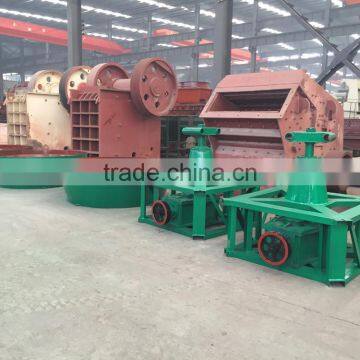

Gold ore mill in large stock in our factory
Foreign Customer in visiting our factory

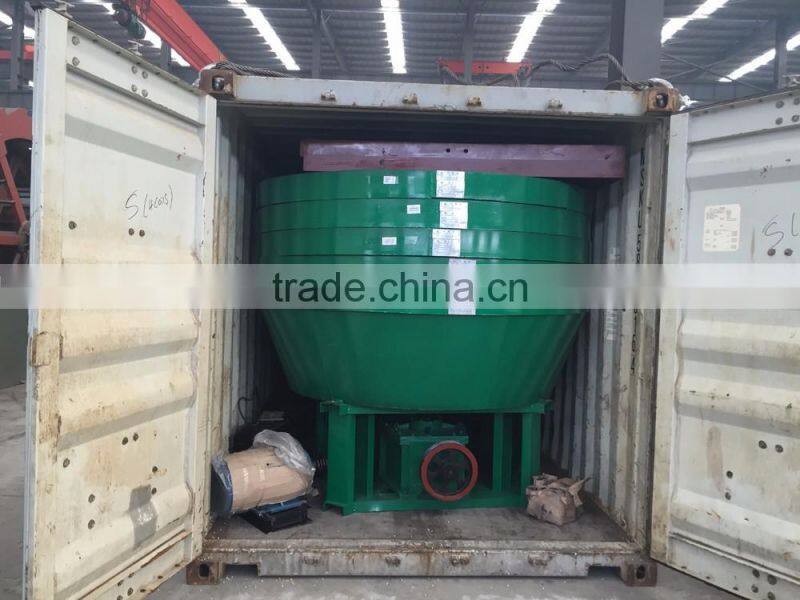

Gold ore mill in shipment to Ghana
Technical Parameters of gold ore mill
Model | Specification | Input size(mm) | Process ability (t/h) | Speed (r/min) | Motor (kw) | Weight (t) |
1600 | 1600×400×±20 | Less than 30mm | 4 | 20-22 | 6-30 | 17 |
1500A | 1500×400×±20 | 3 | 20-22 | 6-22 | 15 | |
1500B | 1500×350×±20 | 2.5-3 | 20-22 | 6-22 | 14 | |
1500C | 1500×300×±20 | 2-2.5 | 20-22 | 6-22 | 12.5 | |
1400 | 1400×250×±20 | 1.5-2 | 16-18 | 6-18.5 | 9.5 | |
1300 | 1300×250×±20 | 1.5 | 21-23 | 6-15 | 7.8 | |
1200A | 1200×220×±20 | 0.9-1.2 | 16-18 | 4-7.5 | 6.0 | |
1200B | 1200×200×±20 | 0.8-0.1 | 21-23 | 4-7.5 | 5.8 | |
1100 | 1100×200×±10 | 0.6-0.8 | 16-18 | 4-5.5 | 5.5 | |
1000 | 1000×200×±10 | 0.5 | 21-23 | 4-5.5 | 4.5 | |
900 | 900×150×±10 | 0.3 | 17-19 | 3 | 3.2 |

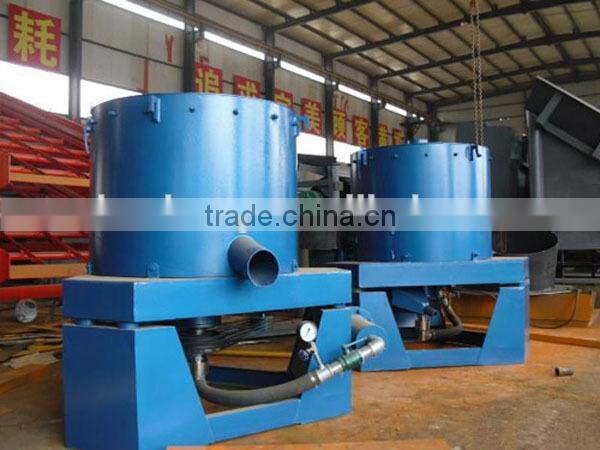

Gold refining machine which can also be used in gold separation
Welcome to visit our factory!
We have the best quality that can competitive with any manufacturer!
We have the lowest price because of we are real manufacturer!
Whatsapp: 008613027783958
Wechat: 13027783958
Skype:lilyjl11212
Company Profile

Zhengzhou Huahong Machinery Equipment Co., Ltd. is located in Zhengzhou National Hi-Tech Industrial Development Zone, Henan Province. Our company has passed ISO9001 international quality system certification. Our company has two industrial plants of 10,000 square meters and we have 200 sets of large and medium-sized processing, welding and assembly equipment, with the maximum lifting capacity of 150 tons. Our company mainly produces all kinds of jaw crushers, impact crushers, cone crushers, hammer crushers, Raymond mills, sand making machines, mineral processing equipment, milling machines, ball mills, and building material equipment. Stone Production Line: mobile crushers, vertical compound crushers, roll crushers, roller crushers, impact crushers, impact crushers, hammer crushers, jaw crusher machines, efficient crushing machines, spiral stone washing machines, high efficiency sand washing machines, sixth generation sand products, hammer crushers, cone crushers and others. Mineral production equipment: pressure machines, cylinder cooling machines, dryer belts, vertical dryers, rotary drum dryers, high frequency screens, spiral classifiers, flotation machines, dry magnetic separators, wet magnetic separators, ceramic ball mills, tube mills, energy saving ball mills and others. Building equipment: cement production lines, cement mills, separators, rotary kilns, vertical coolers, vertical preheaters, 8-15 automatic hydraulic block making machines, 6-15 automatic block making machines, pulping machines, casting machines, steam curing cars, autoclave reactors, concrete block cutting machines, aerated concrete production lines and others. Common equipment: feeders, pendulum feeders, ultrafine mills, screw conveyors, Raymond mills, vibrating screens, stone vibrating screens, electromagnetic vibrating feeders, TH ring chain bucket elevator machines, TD belt elevators, belt conveyors, scraper conveyors and others. We have won a good reputation among customers with good quality, competitive prices and advanced techniques since our establishment. We have 22 existing senior engineers, 30 engineers, 70 senior technicians and more than 800 employees. The Chief Engineer of China Machinery Industry has designed and developed several generations of leading crushers, sand (sand) machines and others for our company. Our company has introduced these products in recent years. Our products are popular in the United States, Germany and other countries and regions around the world. We have advanced equipment and techniques. Since our inception, we have been sticking to our motto of "product update and advanced processing equipment and exquisite craft, rigorous inspection and testing, providing customers with quality products, and to obtain users' favor". Our products are exported worldwide. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
