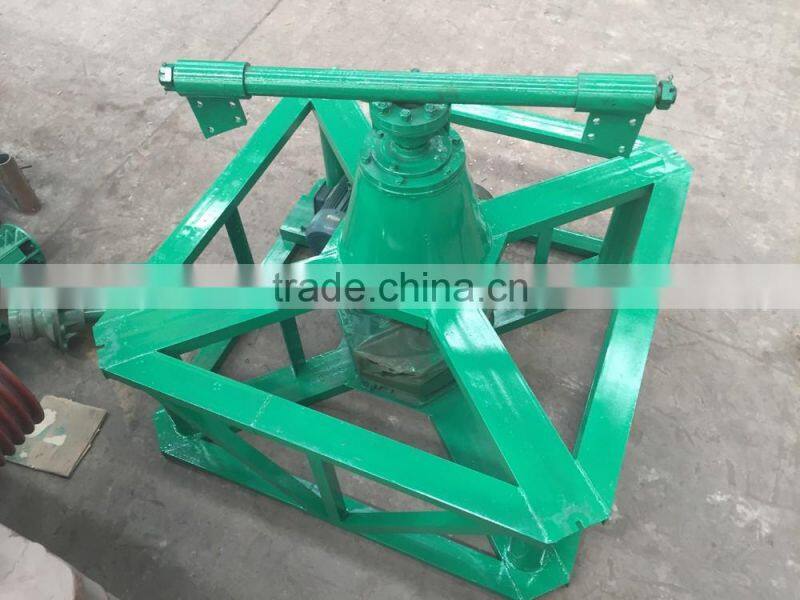

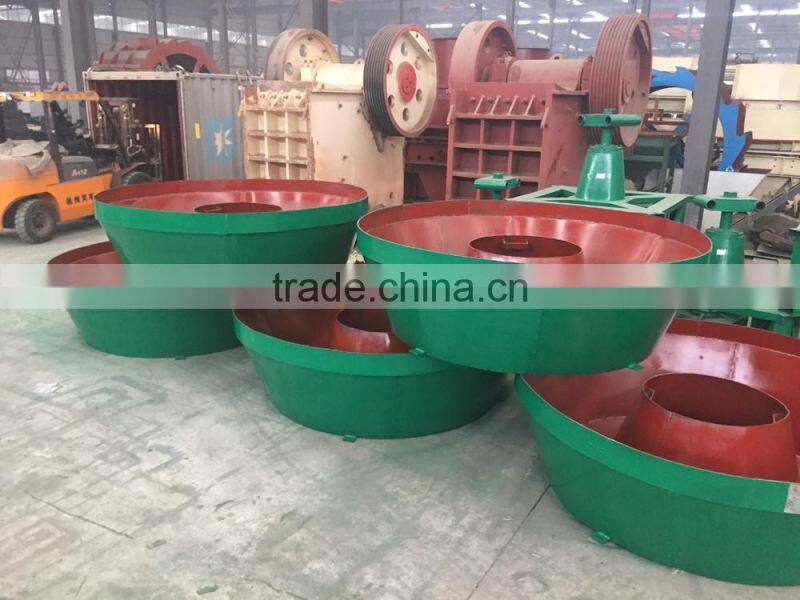

water pan mill ,energy conservation gold grinding machine
- shanghai tianjin Application: The wet pan mill is a new mill small investment high yield the production cost is low gqingdao
- T/T D/P D/A Credit Card
You May Like
-
Mercury Gold Wet Pan Mill ,speed reducer,
-
Hot sale in Sudan wet pan mill, China wet pan mill for gold, edge runner mill
-
2017 1200A High Quality Gold Ore Grinding Pan
-
china wet pan mill, 1100 gold pan grinding mill, wet pan mill for sale
-
China wet pan mill for gold, Double wheel dressing gold grinding mill machine for sale
-
2017 Wholesale Rock Gold Processing Equipment Wet Gold Pan Miller
Product Details
| Condition | New | Type | Other, wet pan mill | |
| Motor Type | AC Motor | Power(W) | 6-15kw | |
| Capacity(t/h) | 0.9-1.2 | Place of Origin | Henan, China | |
| Brand Name | huahong | Model Number | 1200 | |
| Dimension(L*W*H) | 1200*250*±20 | Weight | 5.5t | |
| Certification | ISO,CIQ ,CE , | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Standard Container ,Nude packs or in bulk
Product Description
.
| Name | wet pan mill ,water pan mill ,gold grinding machine |
| feature | Reduce the loss of mineral powder, so that resources can be fully utilized |
| Application | separate Gold, silver, lead, zinc, iron, molybdenum, copper, antimony ore, etc |
| working priciple | Grind gold machine mainly for raw materials by stirring, rolling, crushing, rolling after repeated water reaches equilibrium, the ratio of uniform, low gas content, increase the rate of forming and shaping the quality of the material through the machine grinding molding products, With high density, good strength, non-stomatal ratio and so on. High efficiency, high output, the product is used in iron ore tailings for recycling process, not to the loss of slag, so that effective resources can be fully utilized |
| working way | Grind gold machine in the election prime sorting methods and processes -1. grind gold machine after the installation is completed to grind gold machine bottom added about 5 kg of mercury began to work. 2 .charged once per shift Sands, in the shift added 1 kg of mercury charged grind bottom Sands and mercury, the mercury Sheng received gold instruments, the use of relatively high density of red cloth wrung mercury to the package, open the red cloth Sands is left inside. 3. each class starts to add one kilogram of mercury on it. Comprising a grasping cloth of gold or gold carpet caught behind and put on the board of mercury can collect the gold. |
| Advantages | 1. grinding wheels and grinding base are made of high manganese steel. it is very hard and rigid, using life will be doubled 2. 6 phases motor, can reduce energy consumption 3. easy installation and maintenance, small investment, high yield, quick, low-cost production, |
Name :wet pan mill
EXP ; Zhengzhou Huahong Machinery equipment Co.,LTD
Model ;1200 (new machine ) for grinding mining stones
Grinding mills wheel 1200mm*220mm
Input size ;50mm
Output size ;0.06-0.07mm
Speed of grinding wheels ;16-18R.P.M
Capactiy ;900-2000kg/h
Motor power ;11kw
Net weight :5.80tons
centeral shaft;100mm
Made in china
one container can load 4 set model 1200 wet pan mill
Model | Specification | Input size(mm) | Process ability (t/h) | Speed (r/min) | Motor (kw) | Weight (t) |
1600 | 1600×400×±20 | Less than 30mm | 4 | 20-22 | 6-30 | 17 |
1500A | 1500×400×±20 | 3 | 20-22 | 6-22 | 15 | |
1500B | 1500×350×±20 | 2.5-3 | 20-22 | 6-22 | 14 | |
1500C | 1500×300×±20 | 2-2.5 | 20-22 | 6-22 | 12.5 | |
1400 | 1400×250×±20 | 1.5-2 | 16-18 | 6-18.5 | 9.5 | |
1300 | 1300×250×±20 | 1.5 | 21-23 | 6-15 | 7.8 | |
1200A | 1200×220×±20 | 0.9-1.2 | 16-18 | 4-7.5 | 6.0 | |
1200B | 1200×200×±20 | 0.8-0.1 | 21-23 | 4-7.5 | 5.8 | |
1100 | 1100×200×±10 | 0.6-0.8 | 16-18 | 4-5.5 | 5.5 | |
1000 | 1000×200×±10 | 0.5 | 21-23 | 4-5.5 | 4.5 | |
900 | 900×150×±10 | 0.3 | 17-19 | 3kw | 3.2 |
Speed reducer used in wet pan mill
♥The raw material should be put into the machine after the machine running normally. This machine is not allowed to state with the material in the machine. If the machine is stopped because of stoppage, the residual material in the machine should be cleared. Then start the machine again.
♥The material should be put into the machine uniformity, not sometimes much sometimes less. It's better to use a feeding equipment.The bearing part should be add butter regularly.Every bolts should be checked to avoid flexible.
♥The bearing should be changed in time if it is damaged to avoid damage other parts.While the machine is running formally, you should check if there is abnormal sound in the reducer box and or bearing part, if there is a too high temperature, if there is too big motor current and so on. If it happened, you should stop the machine to remedy of the trouble.
♥The motor V-belt should be removed while examine and repair the machine for your safe.
| Product Name | Production Line Capacity | Actual Units Produced(Previous Year) |
|---|---|---|
| Crusher | 600 Sets Per Year | confidential |
| Ball Mill | 120 Sets Per Year | confidential |
| Wet Pan Mill | 720 Sets Per Year | confidential |
| Dryer | 120 Sets Per Year | confidential |
| Vibrating Screen | 240 Sets Per Year | confidential |
