Mould Coal Equipment With Reliable Quality
- tianjin shanghai qingdao
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
STLB30 Mining Machinery/gold Centrifugal Concentrator Mineral Separator
-
STLB 20 Centrifuge Separator for Gold Mineral Processing Plant
-
Regular Time Self Discharging Centrifuge Machine for Gold Concentrating
-
Mobile Conveyor Belt,Slat Conveyor,mining Belt Conveyor
-
Conveyor Belt,rubber Conveyor Belting
-
High Quality Mini Three Wheel Dumper Trike for Underground Mining
Product Details
| Condition | New | Production Capacity | High | |
| Motor Type | AC Motor | Power(W) | 5.5kw | |
| Place of Origin | Henan, China | Brand Name | Huahong | |
| Model Number | ZKBM | Dimension(L*W*H) | 2983mm*2293mm*2112mm | |
| Certification | ISO9001:2008 | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
wooden box, as clients' requirement
Product Description

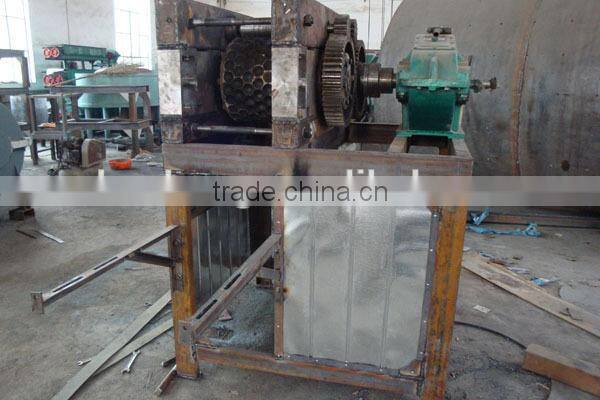

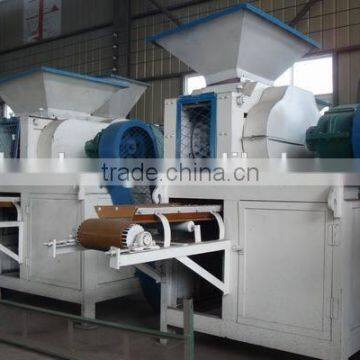

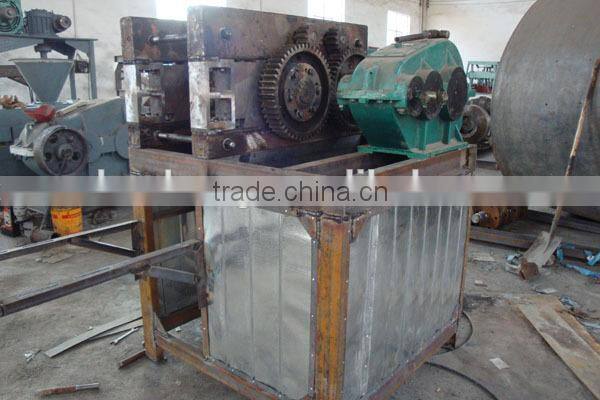

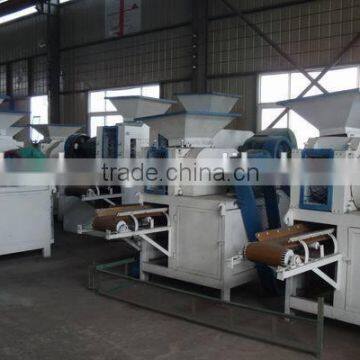

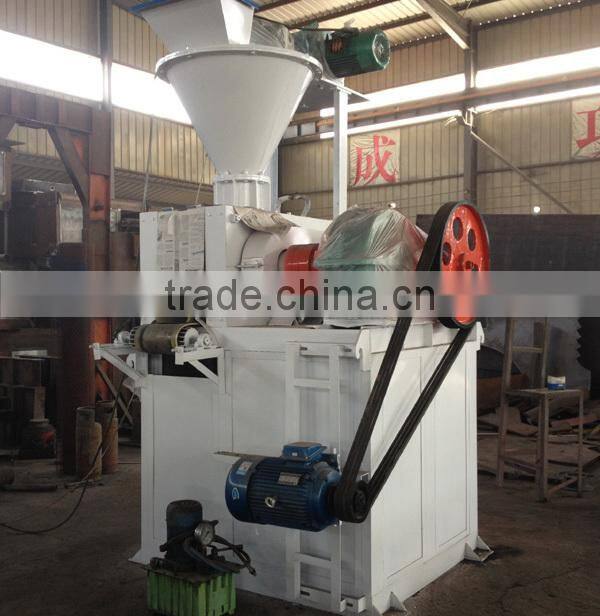

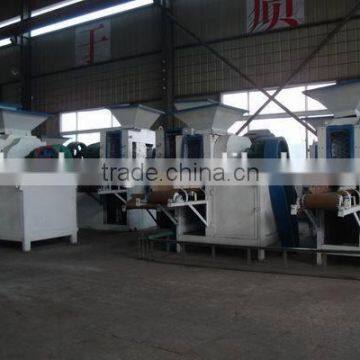

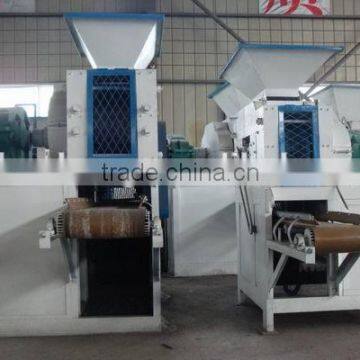

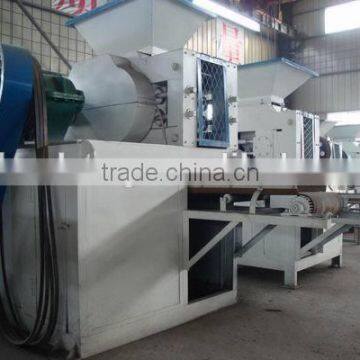

Introduction Ball Press Machine:
Ball Press Machine is based on the direction of development of domestic and foreign
counterparts,collect the advantages of similar powder briquette ,machine, make full use of advanced

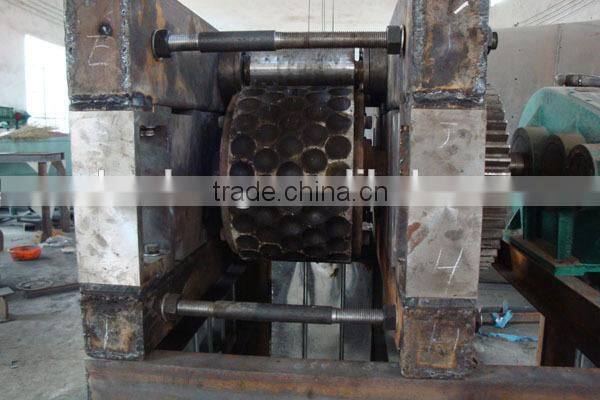

technology to develop a new generation of products. Pressure roller adopt wearresisting alloy forged,
bearing with bearing series mill,spindle uses large diameter 40Cr after forging, quenching and tempering,
the hydraulic system by the formal large matching.Ball Press Machine is mainly used for
anhydrous materials of nonferrous and ferrous mineral powder briquette /ball making system before the
smelting furnace, such as coal,coke powder, coking coal, coal ash, coal mud, iron ore concentrates,
chromate ore concentrates, mgo power, copper power, chrome ore power, Lead Zinc Ore, steel slag,
aluminum ash, SiMn mineral powder, bauxite refractory, nonferrous metal power, refractory matter,
ceramic filter sand and metallurgical powder cold pellet making industry.
Application of Ball Press Machine:
The Ball Press Machine is widely used in the field of metallurgy, chemical, refractories etc,
for reducing bug dust,recycling, easy transportation,controlling volume and storage. It has the properties
of high efficiency, energy saving and environment protection.Briquette machine is aimed at reducing
dust pollution,control capacity,waste recycling,easy to transport.In the steel mills,lime plants,metallurgy,
refractory furnace charge, metallic magnesium plant calcined white powder pressure ball made block
use very extensive.
Main Technical Paramaters
Model | Reducer | Speed ratio | The dimension of pressing roll | Speed of main shaft | Model of motor | Power | Output(t/h) | Assembly bearing | Overall dimension (m) |
YHQ360-4 | ZQ350 | 1:31.5 | φ360*250 | 15-17r/min | Y132M-4 | 7.5KW | 3-5 | 3516*4 3508*4 CUP206*4 | 2.26*1.53*1.98 |
YHQ360-2 | ZQ350 | 1:31.5 | φ360*250 | 15-17r/min | Y132M-4 | 7.5KW | 3-5 | 3516*4 CUP206*4 | 2.26*1.53*1.76 |
YHQ400-4 | ZQ400 | 1:31.5 | φ400*250 | 15-17r/min | Y160M-4 | 11KW | 4-7 | 3516*4 3508*4 CUP206*4 | 2.3*1.38*1.96 |
YHQ400-2 | ZQ400 | 1:31.5 | φ400*250 | 15-17r/min | Y132M-4 | 7.5KW | 4-7 | 3516*4 CUP206*4 | 2.2*1.38*1.91 |
YHQ430-4 | ZQ400 | 1:31.5 | φ430*250 | 15-17r/min | Y160M-4 | 11KW | 5-8 | 3516*4 3508*4 CUP206*4 | 2.4*1.53*2 |
YHQ430-2 | ZQ400 | 1:31.5 | φ430*250 | 15-17r/min | Y132M-4 | 7.5KW | 5-8 | 3516*4 CUP206*4 | 2.3*1.53*1.9 |
YHQ500-4 | ZQ500 | 1:31.5 | φ500*350 | 15-17r/min | Y180L-4 | 22KW | 8-10 | 3522*4 3508*4 CUP206*4 | 2.61*1.75*2.35 |
YHQ500-2 | ZQ500 | 1:31.5 | φ500*350 | 15-17r/min | Y160L-4 | 15KW | 8-10 | 3522*4 CUP206*4 | 2.61*1.75*2.1 |
YHQ650-4 | ZQ650 | 1:31.5 | φ650*350 | 15-17r/min | Y1200L-4 | 30KW | 12-20 | 3528*4 3508*4 CUP206*4 | 3.42*2*2.4 |
YHQ650-2 | ZQ650 | 1:31.5 | φ650*350 | 15-17r/min | Y180L-4 | 22KW | 12-20 | 3522*4 CUP206*4 | 3.42*2*2.2 |
YHY750-4 | ZQ750 | 1:31.5 | φ750*380 | 14-16r/min | Y200L-4 Y112M-4 | 30KW 4KW | 25-30 | 3538*4 3509*4 206*4 | 3.7*2.55*2.6 |
YHY850-4 | ZQ850 | 1:31.5 | φ850*436 | 14-16r/min | Y225S-4 Y112M-4 | 37KW 4KW | 35-40 | 3540*4 3509*4 206*4 | 3.9*2.6*2.7 |
YHY1000-4 | ZQ1000 | 1:31.5 | φ1000*530 | 14-16r/min | Y225M-4 Y112M-4 | 45KW 4KW | 40-45 | 3544*4 3509*4 206*4 | 4*2.8*2.8 |



Pre-sales service:
Be a good consultant and assistant to customers, to ensure our customer's investment rewarded with great profit.
1.Enough details about the ores or slags shall be learned, sometimes a test is needed for some ores.
2. Equipment of right model is selected for customers.
3. Customized products and processing flow sheet can be designed and developed to meet customer's special needs,
4. Engineer could be sent to observe customer's working site to come up with an optimized solution accordingly.
On-sales service:
Every customer is respected and convenience and reliability will be provided. We are devoted to helping you to benefit as much as possible.
1. Inspection is a must before delivering of the goods.
2. Assistance to make a construction plan by supplying all drawings and data needed.
3. Most favorable scheme for you with the guaranteed quality.
4. Timely communication to make sure improvement of project and your requirement met.
After-sales service:
1. Installation, adjustment, and testing of equipment is available.
2. Train of technicians and workers at site is promised.
3. Service engineers will not leave until ensuring the whole line running well after the installation & adjustment is finished.
4.If any failure or question about the machines or the processing line, contact us and we are available at any time.
Zhengzhou Huahong Machinery & Equipment (Group) Co., Ltd. is located in National Hi-Tech Industrial Development Zone of Zhengzhou City, Henan Province, Our products passed the ISO9001 international quality system certification. It has won the glory of provincial superior enterprise. Huahong company's quality of products have been in a leading and dominant position in machinery industry of China. Its high-quality products and first-class services were also have been praised by overseas and domestic customers.
We are factory direct sales, our company can customize professional product according to customer 's requirements .
welcome to visit the factory.
Company Profile
Zhengzhou Huahong Machinery Equipment Co., Ltd. is located in Zhengzhou National Hi-Tech Industrial Development Zone, Henan Province. Our company has passed ISO9001 international quality system certification. Our company has two industrial plants of 10,000 square meters and we have 200 sets of large and medium-sized processing, welding and assembly equipment, with the maximum lifting capacity of 150 tons. Our company mainly produces all kinds of jaw crushers, impact crushers, cone crushers, hammer crushers, Raymond mills, sand making machines, mineral processing equipment, milling machines, ball mills, and building material equipment. Stone Production Line: mobile crushers, vertical compound crushers, roll crushers, roller crushers, impact crushers, impact crushers, hammer crushers, jaw crusher machines, efficient crushing machines, spiral stone washing machines, high efficiency sand washing machines, sixth generation sand products, hammer crushers, cone crushers and others. Mineral production equipment: pressure machines, cylinder cooling machines, dryer belts, vertical dryers, rotary drum dryers, high frequency screens, spiral classifiers, flotation machines, dry magnetic separators, wet magnetic separators, ceramic ball mills, tube mills, energy saving ball mills and others. Building equipment: cement production lines, cement mills, separators, rotary kilns, vertical coolers, vertical preheaters, 8-15 automatic hydraulic block making machines, 6-15 automatic block making machines, pulping machines, casting machines, steam curing cars, autoclave reactors, concrete block cutting machines, aerated concrete production lines and others. Common equipment: feeders, pendulum feeders, ultrafine mills, screw conveyors, Raymond mills, vibrating screens, stone vibrating screens, electromagnetic vibrating feeders, TH ring chain bucket elevator machines, TD belt elevators, belt conveyors, scraper conveyors and others. We have won a good reputation among customers with good quality, competitive prices and advanced techniques since our establishment. We have 22 existing senior engineers, 30 engineers, 70 senior technicians and more than 800 employees. The Chief Engineer of China Machinery Industry has designed and developed several generations of leading crushers, sand (sand) machines and others for our company. Our company has introduced these products in recent years. Our products are popular in the United States, Germany and other countries and regions around the world. We have advanced equipment and techniques. Since our inception, we have been sticking to our motto of "product update and advanced processing equipment and exquisite craft, rigorous inspection and testing, providing customers with quality products, and to obtain users' favor". Our products are exported worldwide. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
